Axxera AXD130 Installation & Owner's Manual

Cd receiver
Hide thumbs Also See for Axxera AXD130:
Table of Contents

Advertisement

Quick Links

See also: Installation & Owner's Manual
CD Receiver
INSTALLATION/OWNER'S
MANUAL
AXD130
Front and Rear Inputs

Advertisement

Table of Contents
loading

Related Manuals for Axxera Axxera AXD130

Summary of Contents for Axxera Axxera AXD130

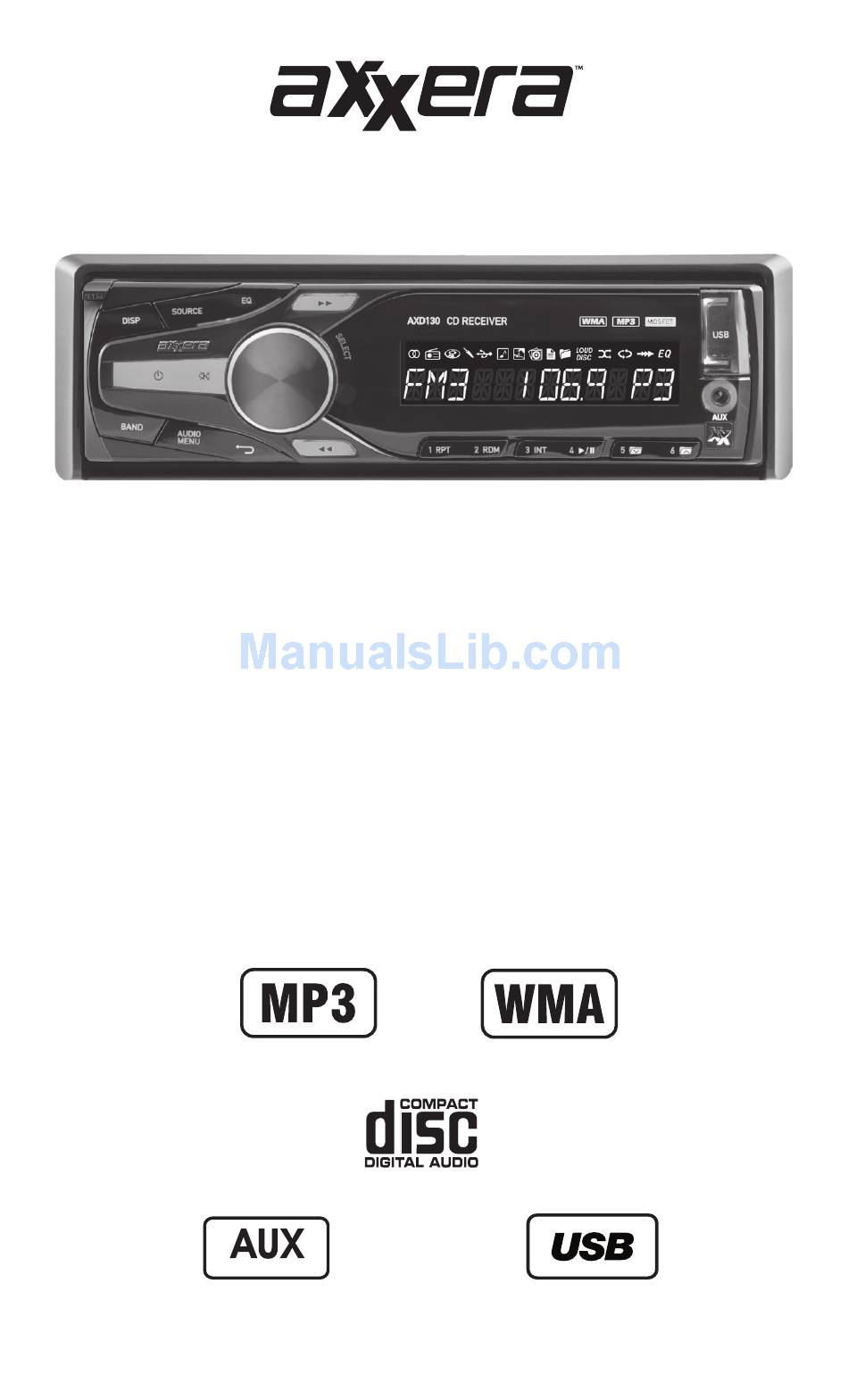

  • Page 1 CD Receiver INSTALLATION/OWNER'S MANUAL AXD130 Front and Rear Inputs...

  • Page 2: Getting Started

    AXD130 Preparation Please read entire manual before installation. Before You Start • D isconnect negative battery terminal. Consult a qualified technician for instructions. • A void installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. Getting Started • Remove trim ring from unit. • Remove 2 transit screws located on top of the unit. • Insert the supplied keys into the slots as shown, and slide the unit out of the mounting sleeve. • Install mounting sleeve into opening, bending tabs to secure. • Connect wiring harness and antenna. Consult a qualified technician if you are unsure. • Certain vehicles may require an installation kit and/or wiring harness adapter (sold separately). • Test for correct operation and slide into mounting sleeve to secure. • Snap trim ring into place. OPTIONAL REAR REMOVAL MOUNTING SUPPORT KEYS...

  • Page 3: Wiring Diagram

    AXD130 Wiring Diagram Rear/Subwoofer Preamp Output Connect to amplifier RCA input RCA Cables (sold separately) Antenna Connector BLUE Remote Turn-On Connect to amplifier or power antenna. Insulate wire if not used. BLACK Ground Connect to vehicle chassis ground. Accessory Connect to ignition circuit or switched 12 volt source.

  • Page 4: Control Locations - Receiver

    AXD130 Control Locations - Receiver Preset 4 / Play / Pause Open Display Preset 3 / Intro Source Preset 2 / Random Equalizer Preset 1 / Repeat Volume Knob/ Select (push) Tune / Track Down Tune / Track Up Go Back Mute USB Port Audio / Menu Auxiliary Input Power Preset 6 / Folder Up Band Preset 5 / Folder Down...

  • Page 5: Control Locations - Remote

    AXD130 Control Locations - Remote Source Display Volume Up Mute Power Audio / Menu Select Key 5 / Folder Down Tune / Track Up Key 4 / Play / Pause Volume Down Key 1 / Repeat Go Back Key 2 / Random Key 3 / Intro Band Key 6 / Folder Up Tune / Track Down...

  • Page 6: General Operation

    AXD130 General Operation Faceplate Removal Press OPEN to open the face plate, then pull away from the right side to remove. To re-install, insert right side of faceplate first then push left side to secure. Power On/Off Press or any other button to turn the unit on. Press turn the unit off. Mode Press SOURCE to select between AM/FM, CD player, auxiliary and USB modes. Modes of operation are shown in the display. NOTE: CD and USB modes will not appear unless a CD is inserted or USB device is connected. Auxiliary Input The AXD130 offers a 3.5 mm auxiliary input port on the front panel of the unit for connecting an audio device, MP3 player, etc. Press SOURCE to select auxiliary input mode. Volume Adjust volume using volume knob (00-46). Display Press DISP to select between clock and different types of information, such as radio frequency, CD track/elapsed time or MP3/WMA song information. Reset Press RESET upon initial installation or if abnormal operation occurs. Reset button is located behind the front panel. Set the Clock With the unit on, press and hold DISP until the clock begins to flash, then release. Press TUNE to adjust the...
  • Page 7 AXD130 General Operation - Setup Menu Menu Function Options Action Auto Station Press SELECT to seek and save 6 strong stations in the AUTO STORE Store current band. (Tuner mode only) LOCAL OFF Activates distance tuning (Tuner mode only). Local/Distance Activates local tuning for strong station reception only (Tuner Tuning LOCAL ON mode only). Programs the unit to USA tuner spacing. FREQ USA Tuner (200kHz for FM and 10kHz for AM). (Tuner mode only) Frequency Programs the unit to European tuner spacing. Spacing FREQ EURO (50kHz for FM and 9kHz for AM). (Tuner mode only) CLOCK OFF Programs unit to not display the clock when the power is off.
  • Page 8 AXD130 General Operation Audio Press AUDIO/MENU momentarily to select between Bass, Middle, Treble, Balance, Fader, Loudness and Source Level. BASS MIDDLE TREBLE BALANCE FADER LOUDNESS SOURCE LEVEL SUBWOOFER FREQUENCY SUBWOOFER Bass Press AUDIO/MENU until BASS appears then rotate volume knob left/right to adjust ( -6 minimum / +6 maximum). Middle Press AUDIO/MENU until MIDDLE appears then rotate volume knob left/right to adjust ( -6 minimum / +6 maximum). Treble Press AUDIO/MENU until TREBLE appears then rotate volume knob left/right to adjust ( -6 minimum / +6 maximum). Balance Press AUDIO/MENU until BALANCE appears then rotate volume knob left/right to adjust (BAL 12L - BAL 12R).

  • Page 9: Am/Fm Tuner Operation

    AXD130 AM/FM Tuner Operation Manual Tuning Press TUNE or TUNE momentarily to change radio frequency up or down one step at a time. Press and hold to advance quickly. Seek Tuning Press TUNE or TUNE for more than two seconds (then release) to automatically seek and tune to the next strong station. Press BAND to select between FM1, FM2, FM3, AM1 and Band AM2 bands. Up to 18 FM stations and 12 AM stations can be stored. To Storing and Recalling store a station, select the desired band and station. Press Station Presets and hold the desired preset button (1-6) for more than 2 seconds. When stored, the preset number will appear in the display. The station can be recalled anytime by pressing the corresponding preset button.
  • Page 10 AXD130 CD Operation Insert CD Press OPEN to open the face plate and expose the CD slot. With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD With the face plate open, press EJECT to eject the CD. The unit will change to previous mode of operation. If the disc is not removed within 10 seconds, the unit will reload the disc. The unit does not have to be turned on to eject CD. Track Select Press TRACK to skip to the beginning of the next track. Press TRACK to return to the beginning of the current track. Pressing TRACK again skips to the beginning of the previous track. Fast Forward/Reverse Press and hold TRACK or TRACK on the remote control to fast forward or reverse a track. / II to temporarily stop CD playback. Pause Press / II again to resume playback. Press Repeat Press RPT to continuously repeats selected track. Press RPT again to turn the Repeat function off.
  • Page 11 AXD130 CD Operation - MP3/WMA Files Playing an MP3/WMA When an MP3/WMA encoded disc is first inserted, “READING" will flash in the display. Depending on the number of files and folders, this may take several seconds. Displaying Information Press DISP to step through available display options, including track number, elapsed time, track name, directory name, artist name and album name. *Song title, artist name and album name will only be displayed if included with the MP3/WMA file. When referring to MP3/WMA playback, the following terms are synonymous: • File name and track name • Folder name and directory name Repeat Press RPT to enter the Repeat menu, then turn the volume knob to select one of the following options: • ALL - Plays all tracks on CD. • SONG - Continuously repeats selected song. • FOLDER - Continuously repeats all files in selected folder. Press RDM to enter the Random menu, then turn the Random volume knob to select one of the following options: • OFF - Cancels the RDM function. • ALL - Plays all tracks in random order. • FOLDER - Plays all tracks in folder in random order. Intro Press INT to enter the Intro menu, then turn the volume knob to select one of the following options: • OFF - Cancels the INT function.
  • Page 12 AXD130 CD Operation - MP3/WMA Files File/Folder Compatibility and Support Type Specification • CD-R, CD-RW • CD-DA (digital audio) Compatible File Types • MP3 data (.mp3) • WMA data (.wma) • DRM protected files • WMA lossless • Apple lossless Incompatible File • WMA Pro Types • MP3 Pro • MP3 playlists • WAV lossless • M4A/AAC data • ISO9660 level 1 & level 2 Recording Format • Yellow book MODE 1 & MODE 2 FORM 1 Compatibility • Multi session Sampling Frequency • MP3: 8kHz - 48kHz Rate Compatibility • WMA: 8kHz - 48kHz...

  • Page 13: Usb Operation

    AXD130 USB Operation Connecting a USB To play MP3/WMA files from most USB mass storage Device devices, line up the USB connector and insert the USB (sold separately) device into the AXD130's USB port. Playing Music When a USB device is first connected, “READING” will flash in the display, and playback will begin momentarily. Depending on the number of files and folders, it may take several seconds for the device to begin playing. If no valid MP3/WMA files are detected, “NO FILE” will be displayed and the last mode will be resumed. Track Select Press TRACK to skip to the beginning of the next track. Press TRACK to return to the beginning of the current track. Pressing TRACK again skips to the beginning of the previous track. Fast Forward and Press and hold TRACK or TRACK on the Reverse remote control to fast forward or reverse a track. / II to temporarily stop USB playback. Pause Press / II again to resume playback.
  • Page 14 AXD130 USB Operation File/Folder Compatibility and Support Type Specification Compatible File • MP3 data (.mp3) Types • WMA data (.wma) • DRM protected files • WMA lossless • Apple lossless Incompatible File • WMA Pro Types • MP3 Pro • MP3 playlists • M4A/AAC data • WAV lossless Sampling Frequency • MP3: 8kHz - 48kHz Rate Compatibility • WMA: 8kHz - 48kHz Transfer Bit Rate • MP3: 32kbps - 320kbps Compatibility • WMA: 32kbps - 384kbps • Song Title: 32 characters • Artist Name: 32 characters Character Support • Album Name: 32 characters • File Name: 32 characters...

  • Page 15: File/Folder Search

    AXD130 Music Search - MP3/WMA Files File/Folder Search Begin Searching Press SELECT to enter the file/folder search mode. A list of all the folders from the disc or device will be displayed. Note: Any files located in the root directory will be located in the folder named "ROOT". Choose a Song Turn the volume knob to cycle through all the folders on the CD, and press SELECT to choose the desired folder. The list of files in the selected folder will be displayed. Turn the volume knob to cycle through the list of files. Menu Navigation Pressing GO BACK when viewing the contents of a folder will return to the list of folders on the disc or device. Press GO BACK again to exit the search menu. Playing a Song Once the desired song is displayed, press SELECT to begin playback of the desired song. Press SELECT to begin Press Press...

  • Page 16: Limited One-Year Warranty

    AXD130 Limited One-Year Warranty This warranty gives you specific legal rights. What to do? You may also have other rights which vary 1. Before you call for service, check the from state to state. troubleshooting guide in your owner’s manual. A slight adjustment of any Dual Electronics Corp. warrants this custom controls may save you a service product to the original purchaser to be free call. from defects in material and workmanship for a period of one year from the date of 2. If you require service during the the original purchase. warranty period, you must carefully pack the product (preferably in the Dual Electronics Corp. agrees, at our original package) and ship it by prepaid option, during the warranty period, to repair transportation with a copy of the original any defect in material or workmanship receipt from the retailer to an or to furnish an equal new, renewed authorized service center. or comparable product (whichever is deemed necessary) in exchange without 3. Please describe your problem in charges, subject to verification of the writing and include your name, a return defect or malfunction and proof of the date UPS shipping address (P.O. Box not...

  • Page 17: Troubleshooting

    AXD130 Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11-16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse Speaker wires not connected Check connections at speakers Unit has power Insulate all bare speaker wires One or more speaker wires touching (but no sound) from each other and chassis each other or touching chassis ground ground Yellow or red wire touching chassis Check for pinched wire ground Unit blows fuses Speaker wires touching chassis ground Check for pinched wire Incorrect fuse rating...

  • Page 18: Specifications

    AXD130 Specifications CD Player Frequency response: 20Hz-20kHz Channel separation @ 1kHz: >45dB D/A converter: 1 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: 30dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 22dBu Frequency response: 30Hz-2.2kHz General Speaker output impedance: 4-8 ohms Line output voltage: 2 Volts RMS Dimensions: 7" x 7" x 2" (178 x 178 x 50 mm) Design and specifications subject to change without notice.

  • Page 19: Fcc Compliance

    AXD130 FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.
  • Page 20 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM, EST www.axxeraaudio.com ©2013 Dual Electronics Corp. All rights reserved. Other trademarks and trade names are those of their respective owners. NSA0513-V01...
