INSTRUCTION MANUAL
M ULT I MEDI A AU DIO A N D VI SU A L
MODEL : SB-5588LCM

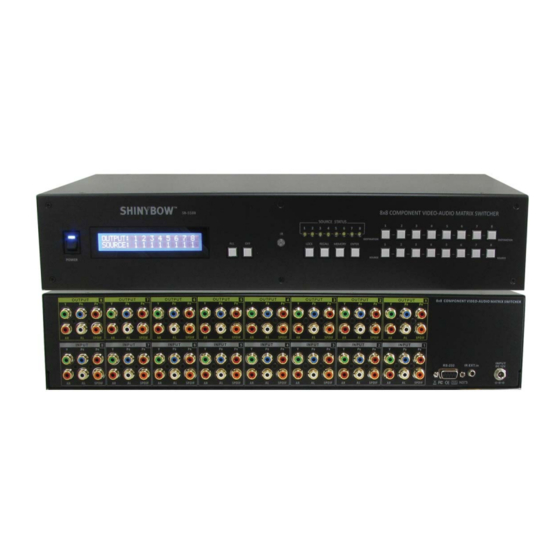

8x8 Component/Audio Matrix Switcher
8x8 Component/Audio Matrix Switcher
HDMI Matrix Switcher Series
Thank you for purchasing the SB-5588LCM 8x8 Component-Audio Matrix Switcher. You will fi nd this unit easy
to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use 8x8
Component-Audio Matrix switcher.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shinybow USA SB-5588LCM
Summary of Contents for Shinybow USA SB-5588LCM

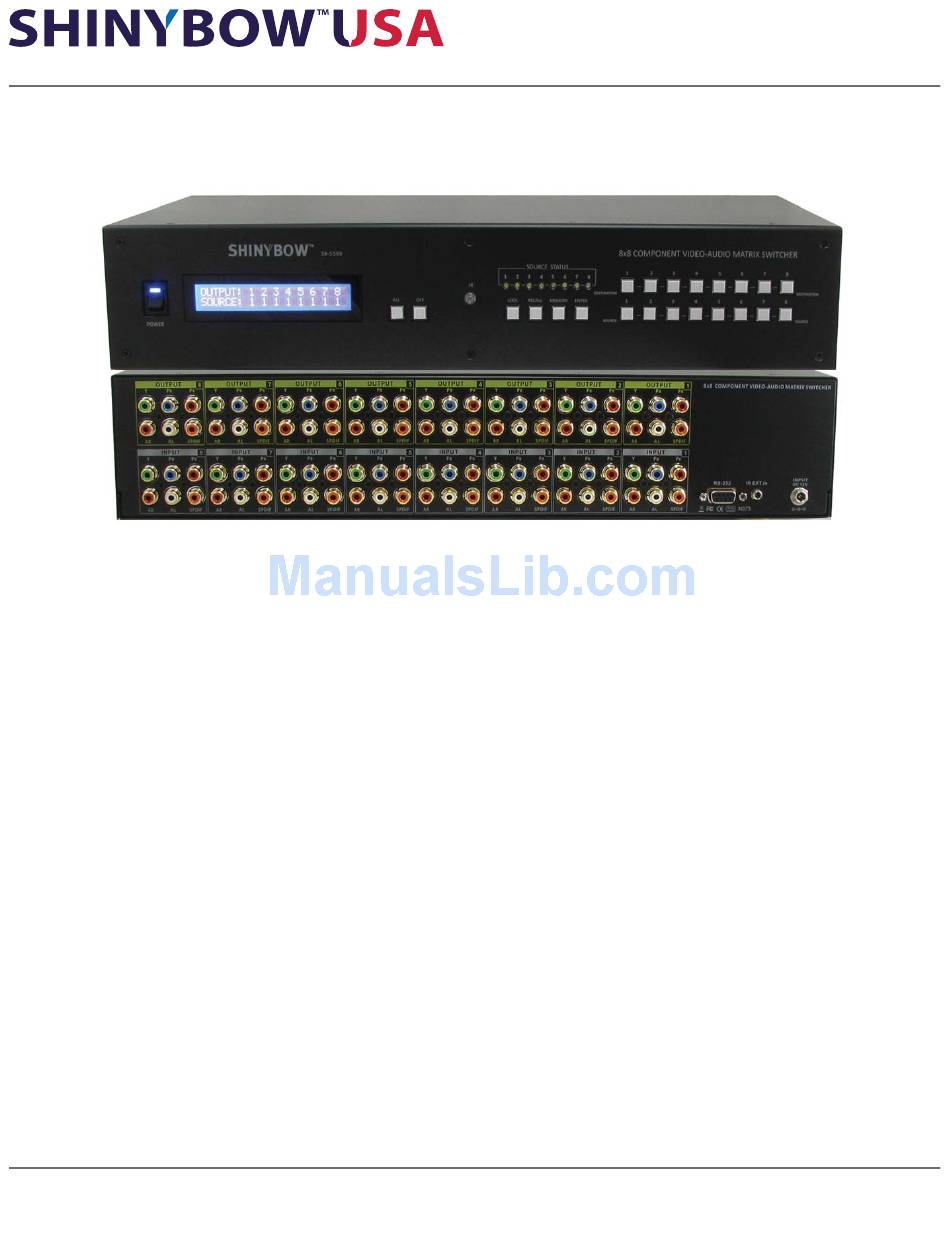

- Page 1 HDMI Matrix Switcher Series Thank you for purchasing the SB-5588LCM 8x8 Component-Audio Matrix Switcher. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use 8x8...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
Component/Digital/Audio matrix switching products on the market • Do not allow anything to rest on the power cabling or allow any today. The SB-5588LCM is a true Matrix Routing Switcher for weight to be placed upon it or any person walk on it. -
Page 4: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES • Supports 8x inputs to 8x outputs Component Video(YPBPR) Matrix Switcher • Input/Output signals via Component Video(YPBPR), SPDIF (PCM), Stereo Audio(AR/AL) • Higher Video Bandwidth 325MB each path signals. • Supported HDTV high defi nition resolutions 408p, 576i/p, 720p, 1080i/1080p •... -
Page 5: Front Panel
FRONT PANEL FRONT PANEL 1. POWER SWITCH The power switch turns the unit on and off. The LED will illuminate red to indicate that the switcher is ON and is receiving power. The switcher will remember that last state during a power cycle. When power is removed and resorted, the last confi guration will be evoked. 2. - Page 6 FRONT PANEL FRONT PANEL 8. FUNCTION KEY - ALL Disables (mute) video on all destinations OR Selects the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show “ 0 “ indicating all destinations have no video selected. Option 2 - Press ALL followed by Source 1 thru 8.
- Page 7 FRONT PANEL FRONT PANEL 12. FUNCTION KEY - MEMORY The system will show store presets, up to a total of 16. Presets are stored in local memory using Source keys 1 thru 8 or Destination keys 1 thru 8 as the memory preset location. - Confi...
-
Page 8: Rear Panel
REAR PANEL REAR PANEL 1. DC POWER INLET The Switcher is fi tted with a DC power plug input connector.Ensure Power Jack: DC Jack - Inner OD ᴓ 2.1mm (+ ) that the used is of an approved type and is of suffi cient current Outside OD ᴓ... -
Page 9: Remote Control
REMOTE CONTROL Before making any connections to the SB-5588LCM. Observe the following: > Ensure the mains voltage supply matches the label on the > Connect all audio video sources and destination equipment supplied plug- Pack (+/- 10%) > Power up all source and destination audio-visual sources >... - Page 10 REMOTE CONTROL IR REMOTE CUSTOM AND DATA CODES (NEC STANDARD) HOW TO SETUP IR CODES CUSTOM CODE : 37C8 DATA CODE : POWER ON : 37C8 A15E POWER OFF : 37C8 A25D : 37C8 B04F : 37C8 B14E EDID : 37C8 B748 LOCK : 37C8 B54A RECALL...
-
Page 11: Rs-232 Serial Interface
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V2.0.1 RS-232 SERIAL INTERFACE RS-232 Defi nition -------- Not used Transmitter Receiver -------- Not used Ground -------- Not used -------- Not used -------- Not used -------- Not used RS-232 PROTOCOL COMMANDS ( RS-232 Control driver V2.0.1 ) The Shinybow switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC, or similar third party control... -
Page 12: Typical Application
COMPONENT VIDEO - Component Video(YPBPR), connector with RCA SPDIF - Digital Audio(PCM), connector with RCA AUDIO - Stereo Audio (AR/AL), connector with RCA SB-5588LCM SUPPORT COMPONENT EIGHT INPUTS MATRIX TO EIGHT SWITCH OUTPUTS SUPPORT CONTROL IR & RS-232 INTERFACE SYSTEM PORTS. -
Page 13: Ir Extender
IR EXTENDER REAR PANEL IR EXTENDER PORT SHINYBOW SB-5588LCM IR Extender to a Room IR part number : SW-5588 IR Receiver : SB-100 (included) *** When you plug the External IR extender into the switcher, the front panel IR receiver remains active. ***... -
Page 14: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 15 M ULT I MEDI A AU DIO A N D VI SU A L 1399 Wildfi re Lane | Frisco, TX 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
