8x8 COMPONENT-AUDIO MATRIX SWITCHER
INSTRUCTION MANUAL
MODEL : SB-5588
8x8 COMPONENT-AUDIO MATRIX SWITCHER
Component Matrix Switcher Series
Thank you for purchasing the SB-5588 Component Matrix Switcher. You will fi nd this unit easy to install and highly reliable but it is
essential that you read this manual thoroughly before attempting to use 8x8 Component Video-Digital-Audio Matrix Switcher.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shinybow USA SB-5588
Summary of Contents for Shinybow USA SB-5588

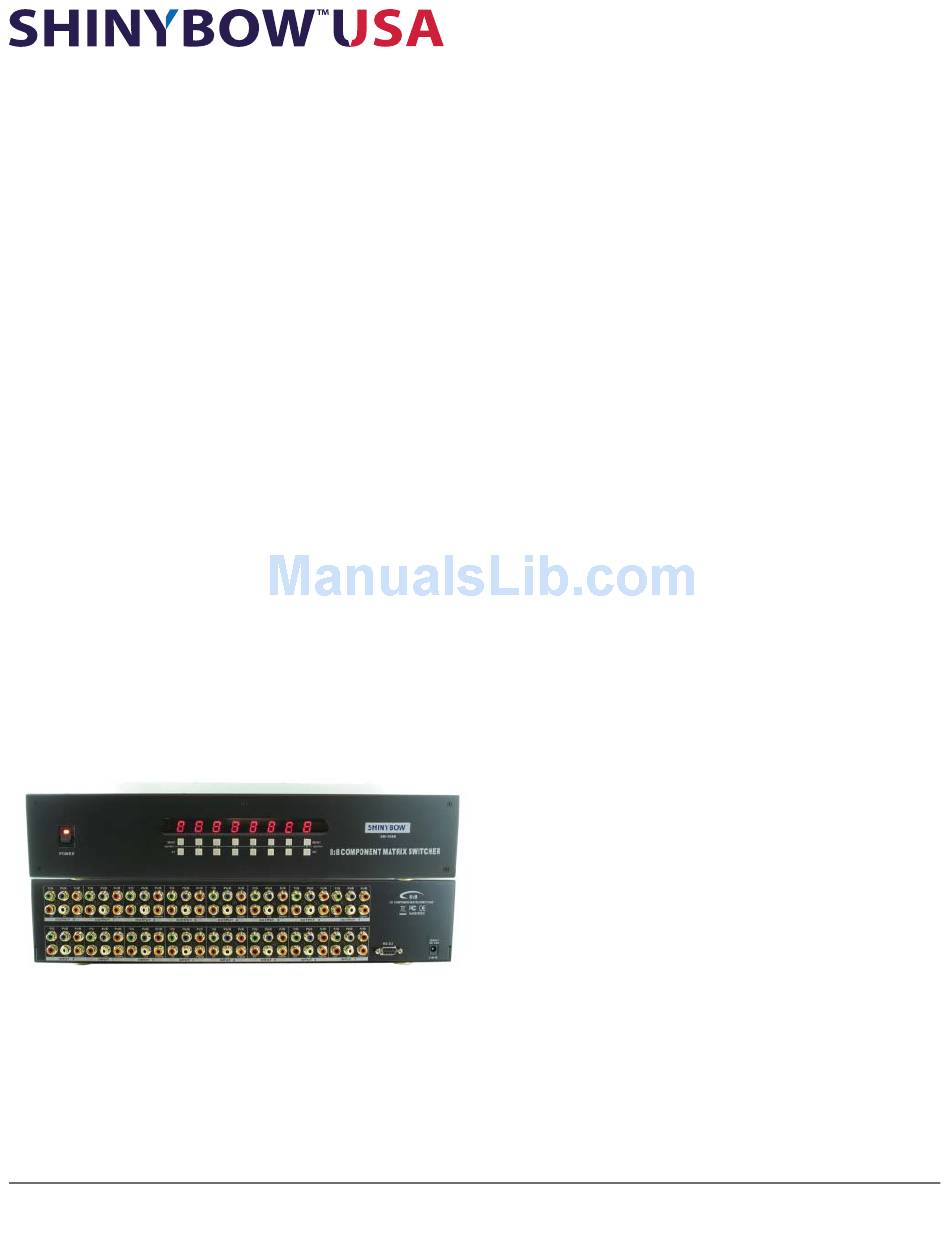

- Page 1 Component Matrix Switcher Series Thank you for purchasing the SB-5588 Component Matrix Switcher. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use 8x8 Component Video-Digital-Audio Matrix Switcher.
-
Page 2: Safety Information
SAFETY INFORMATION Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit, use only the original factory packing. Read all documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. -
Page 3: Package Contents

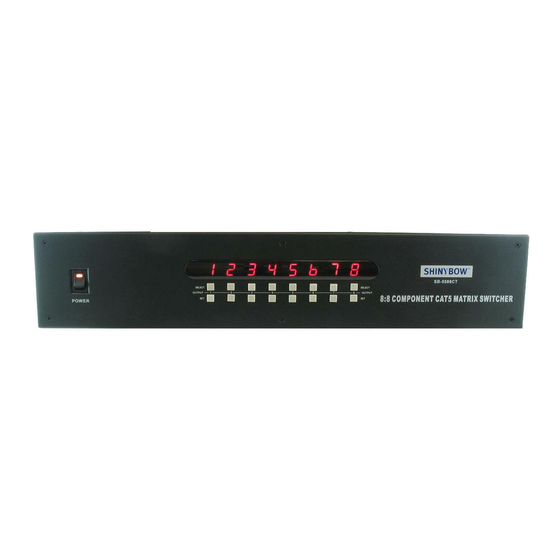

Congratulations on your purchase of one of the most innovative Component/Digital/Audio matrix switching products on the market Today. The SB-5588 is a true Matrix Routing Switcher for Component Video, Digital and Stereo Audio signals. It is a 8 individual Component inputs with 8 individual Component outputs. -
Page 4: Features And Specifications
FEATURES & SPECIFICATIONS FEATURES 1. Supports 8x inputs to 8x outputs Component Video(YPBPR) Matrix Switcher 2. Input/Output signals via Component Video(YPBPR), Digital(PCM), Stereo Audio(AR/AL) 3. Higher Video Bandwidth 325MB each path signals. 4. Supported HDTV high defi nition resolutions 408p, 576i/p, 720p, 1080i/1080p 5. -
Page 5: Front Panel
If the input signals to the SB-5588 are appropriate, switch the power switch to <ON> and you should see and hear the signals on the devices you have connected to the various output connectors of the SB-5588. -
Page 6: Rear Panel
Verify that the video and audio signals are present and are being displayed properly on a suitable device. If all is well connect the appropriate cables between the output of the device you wish to distribute to output(s) of the SB-5588 to the carious devices you wish to feed a signal to. -
Page 7: Remote Control
REMOTE CONTROL Before making any connections to the SB-5588. Observe the following: > Ensure the mains voltage supply matches the label on the > Connect all audio video sources and destination equipment supplied plug- Pack (+/- 10%) > Power up all source and destination audio-visual sources >... -
Page 8: Rs-232 Serial Interface
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM RS-232 SERIAL INTERFACE RS-232 Defi nition -------- Not used Transmitter Receiver -------- Not used Ground -------- Not used -------- Not used -------- Not used -------- Not used RS-232 The switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC or similar third party control system. -
Page 9: Rs-232 Serial Commands
RS-232 SERIAL COMMANDS MORE STUFF FOR SB-5588 Note: Turning the unit System Power Off over RS-232 will distinguish the LED display leaving only the Power Switch LED on. The Video and Audio outputs will also mute. While the unit is turned off by RS-232 it will continue to accept and act upon switching commands. -
Page 10: Typical Application
COMPONENT VIDEO - Component Video (YPBPR), connector with RCA DIGITAL - Digital Audio (PCB), connector with RCA AUDIO - Stereo Audio (AR/AL), connector with RCA SB-5588 SUPPORT COMPONENT EIGHT INPUTS MATRIX TO EIGHT SWITCH OUTPUTS SUPPORT CONTROL IR & RS-232 INTERFACE SYSTEM PORTS. -
Page 11: Limited Warranty
LIMITED WARRANTY SHINYBOW WARRANTY SHINYBOW Technology warrants this product against defects in materials and workman ship for a period of 3 years from the date of purchase. Please be sure to send in your warranty registration card promptly, as the warranty will not be active without registration. Should this product, in SHINYBOW Technology’s opinion, after inspection, prove defective within this warranty period, SHINYBOW Technology, at its option, will repair or replace this product without charge, to whatever extent it shall deem necessary to restore said product to proper operation condition. - Page 12 M ULT I MEDI A AU DIO A N D VI SU A L 1399 Wildfi re Lane | Frisco, TX 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
