INSTRUCTION MANUAL
M ULT I MEDI A AU DIO A N D VI SU A L

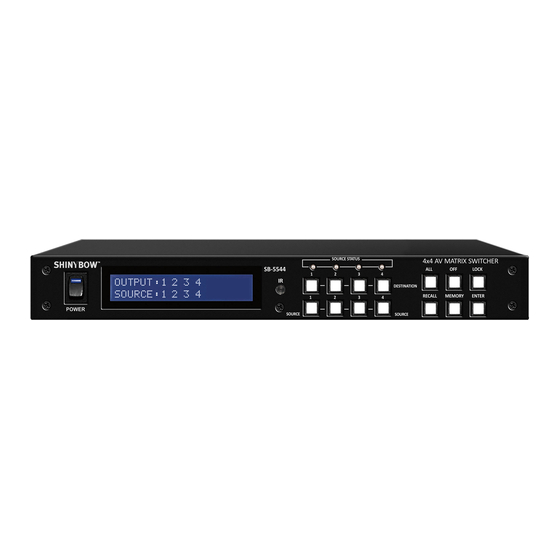

MODEL : SB-5544LCM

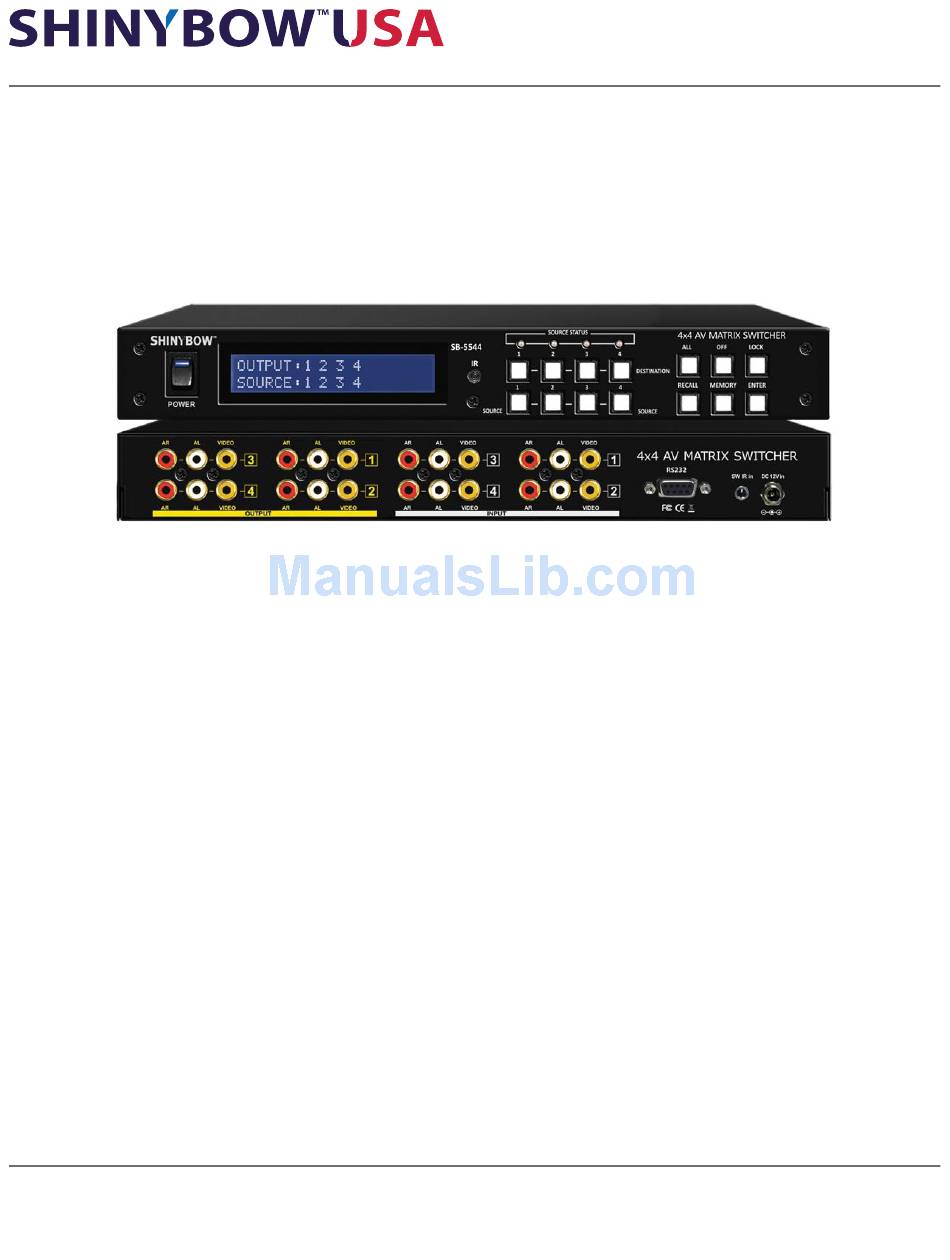

4x4 AUDIO-VIDEO MATRIX SWITCHER
4x4 AUDIO-VIDEO MATRIX SWITCHER
Composite Video-Stereo Audio Matrix Switcher Series
Thank you for purchasing the SB-5544LCM 4x4 Composite Video-Audio Matrix Switcher. You will fi nd this unit
easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use
4x4 Composite Video and Audio Matrix Switcher.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shinybow USA SB-5544LCM
Summary of Contents for Shinybow USA SB-5544LCM
- Page 1 Composite Video-Stereo Audio Matrix Switcher Series Thank you for purchasing the SB-5544LCM 4x4 Composite Video-Audio Matrix Switcher. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
4x4 AV (Composite Video/Audio) matrix switching product on PSU if it is damaged. the market Today. The SB-5544LCM is a true Matrix Routing • Do not allow anything to rest on the power cabling or allow any Switcher for AV (Composite & Stereo Audio) signals. Full support weight to be placed upon it or any person walk on it. -
Page 4: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES • Support 4x Inputs To 4x Outputs Matrix Switcher. • Video Audio signals support Composite Video and Stereo Audio (AR/AL) • High Bandwidth Video 450MHz each Composite Video ports. • Support IR remote and IR External, front panel and RS-232 serial interface protocol Controls. •... -
Page 5: Front Panel
FRONT PANEL FRONT PANEL 1. POWER ON SWITCH The power switch turns the unit on and off. The LED will illuminate red to indicate that the switcher is ON and is receiving power. The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last confi guration will be evoked. 2. - Page 6 FRONT PANEL FRONT PANEL 8. FUNCTION KEY - ALL Disables (mute) video on all destinations OR Selects the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show ”0” indicating all destinations have no video selected. Option 2 - Press ALL followed by Source 1 thru 4.
- Page 7 FRONT PANEL FRONT PANEL 12. FUNCTION KEY - MEMORY The system will show store presets, up to a total of 8. Presets are stored in local memory using Source keys 1 thru 4 or Destination keys 1 thru 4 as the memory preset location. - Confi...
-
Page 8: Back Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: Power Jack: The Switcher is fi tted with a DC power plug-park input connector. DC Jack - Inner OD Ø 2.1 mm (+) Please ensure that the plug-park used is of an approved type and Outside OD Ø... -
Page 9: Remote Control
REMOTE CONTROL Before making any connections to the SB-5544LCM. Observe the following: Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%). Ensure that the power switch is OFF. Ensure that all system grounds (earth) are connected to a common point. -
Page 10: Remote Protocol Commands
REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC STANDARD) HOW TO SETUP IR CODES : CUSTOM CODE : 20DF POWER ON : 20DF A15E LOCK : 20DF B54A POWER OFF : 20DF A25D RECALL : 20DF B24D ALL : 20DF B04F ENTER : 20DF B34C OFF : 20DF B14E MEMORY : 20DF B44B... -
Page 11: Ir Extender
IR EXTENDER IR RECEIVER: 1. SB-100 IR 300M Receiver Device Cable (3C) IR Receiver (SB-100) R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . SB-100 SB-100 IR Receiver Set SB-100 Maximum Distance ~ 984 feet (300 meters) 2. - Page 12 IR EXTENDER IR EMITTER: 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out CAT6/6a/7 DC 12V IR in R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300 meters) 2.
-
Page 13: Rs-232 Serial Interface
RS-232 SERIAL INTERFACE RS-232 RS-232 Defi nition ------ Not used Transmitter Receiver ------ Not used Ground ------ Not used ------ Not used ------ Not used ------ Not used RS-232 PROTOCOL COMMANDS ( RS-232 Control driver V2.0.1 ) The ShinybowUSA switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC, or similar third party control system. -
Page 14: Typical Application
OUTPUT 1 - 4 PORT HDTV DISPLAY SIGNALS: COMPOSITE VIDEO - Composite Video, connector with RCA AUDIO - Stereo Audio (AR/AL), connector with RCA SB-5544LCM SUPPORT COMPOSITE FOUR INPUTS MATRIX TO FOUR SWITCH OUTPUTS SUPPORT CONTROL IR & RS-232 INTERFACE SYSTEM PORTS. -
Page 15: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 16 M ULT IM EDI A AUDIO AN D V IS UA L 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
