Modem Configuration Guide

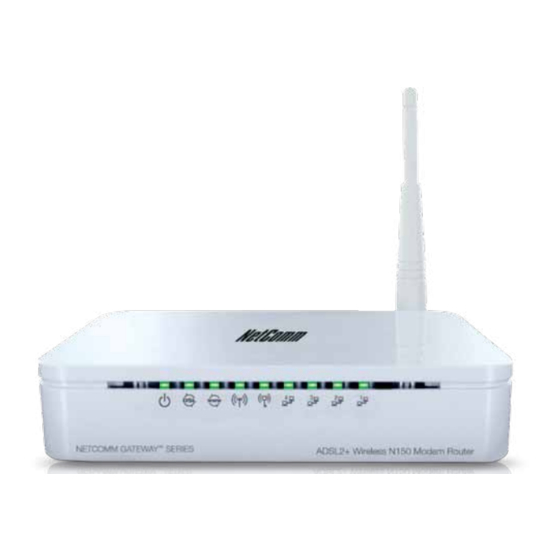

Netcomm Wireless N150 NB14WN
Configuring in Layer2 PPPoE for Windows XP and 2000
IMPORTANT MESSAGE
Your modem has been pre-configured, you do not need to
follow each step of the set-up guide but should retain this
document in case you need to manually configure your
equipment.
To configure your PC/Laptop with your wireless password
please proceed to step 4d. To change your wireless
password please proceed to step 4.
Contents
1. Physical Connection
2. Network Configuration
3. Configuring Internet Connection in Layer 2 PPPoE
4. Configuring Wireless
5. IPTV
6. Change of Password
1. PHYSICAL CONNECTION
Please refer to diagram CASE2 in the Quick Reference Guide.
PLEASE NOTE: Have your router powered on and connected directly to your PC via Ethernet Cable before you begin, as
these instructions are based on wired Ethernet connection
2. NETWORK CONFIGURATION
PPPoE connection does not require you to have an IP address or DNS settings manually encoded on your network card.
PPPoE connection uses authentication to establish the Internet connection and its after doing this that your router is assigned
an IP and DNS settings from TPG.
To begin, your PC needs to receive a private IP address from the router. Most ADSL routers have DHCP enabled by default
that will take care of this.
Netcomm N150 NB14WN
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NetComm NB14WN
Summary of Contents for NetComm NB14WN
- Page 1 Modem Configuration Guide Netcomm N150 NB14WN Netcomm Wireless N150 NB14WN Configuring in Layer2 PPPoE for Windows XP and 2000 IMPORTANT MESSAGE Your modem has been pre-configured, you do not need to follow each step of the set-up guide but should retain this document in case you need to manually configure your equipment.
- Page 2 Modem Configuration Guide Netcomm N150 NB14WN To ensure your Network Card is ready for this please follow the following steps: A. Click on Start -> Settings -> Control Panel -> Network Connections B. Right click on Local Area Connection and select Properties C.
- Page 3 Modem Configuration Guide Netcomm N150 NB14WN 3. CONFIGURE LAYER 2 PPPOE A. Open your browser and in the address bar type http://192.168.1.1 and press enter B. Enter admin for both the username and password and click on OK. If you have changed the login credentials, please enter the current username and password for your router interface.
- Page 4 Modem Configuration Guide Netcomm N150 NB14WN F. You may change the password by entering in a new password. Click NEXT to continue. G. Select the appropriate time zone for your location. Click NEXT to continue. H. In the ISP Connection Type screen,...
- Page 5 Modem Configuration Guide Netcomm N150 NB14WN I. Enter the following connection information into relevant field, Click NEXT to continue. Username: can be found in the ADSL Configuration Details letter Password: the password you nominated at the time of registration VPI: 8...
- Page 6 Netcomm N150 NB14WN 4. CONFIGURING WIRELESS Things you need to know before you begin: By default the NB14WN that you purchased from TPG is configured with the following wireless security settings: SSID (name for the wireless connection): Netcomm Wireless (router default)
- Page 7 Modem Configuration Guide Netcomm N150 NB14WN C. Ensure that the following is selected: SSID: Netcomm Wireless (router default) Note: SSID is the name of your wireless network. You can change the SSID. Only devices with the same SSID can interconnect.
- Page 8 K. You should now see your status as ‘Connected’. 5. IPTV Your Netcomm NB14NW modem is pre configured with the TPG IPTV settings. Should you require further assistance please contact the TPG helpdesk on 13 14 23 (option 2) 6. CHANGE OF PASSWORD For security purposes we highly recommend that you change your password if you are using your default or if you believe your password security has been compromised.
