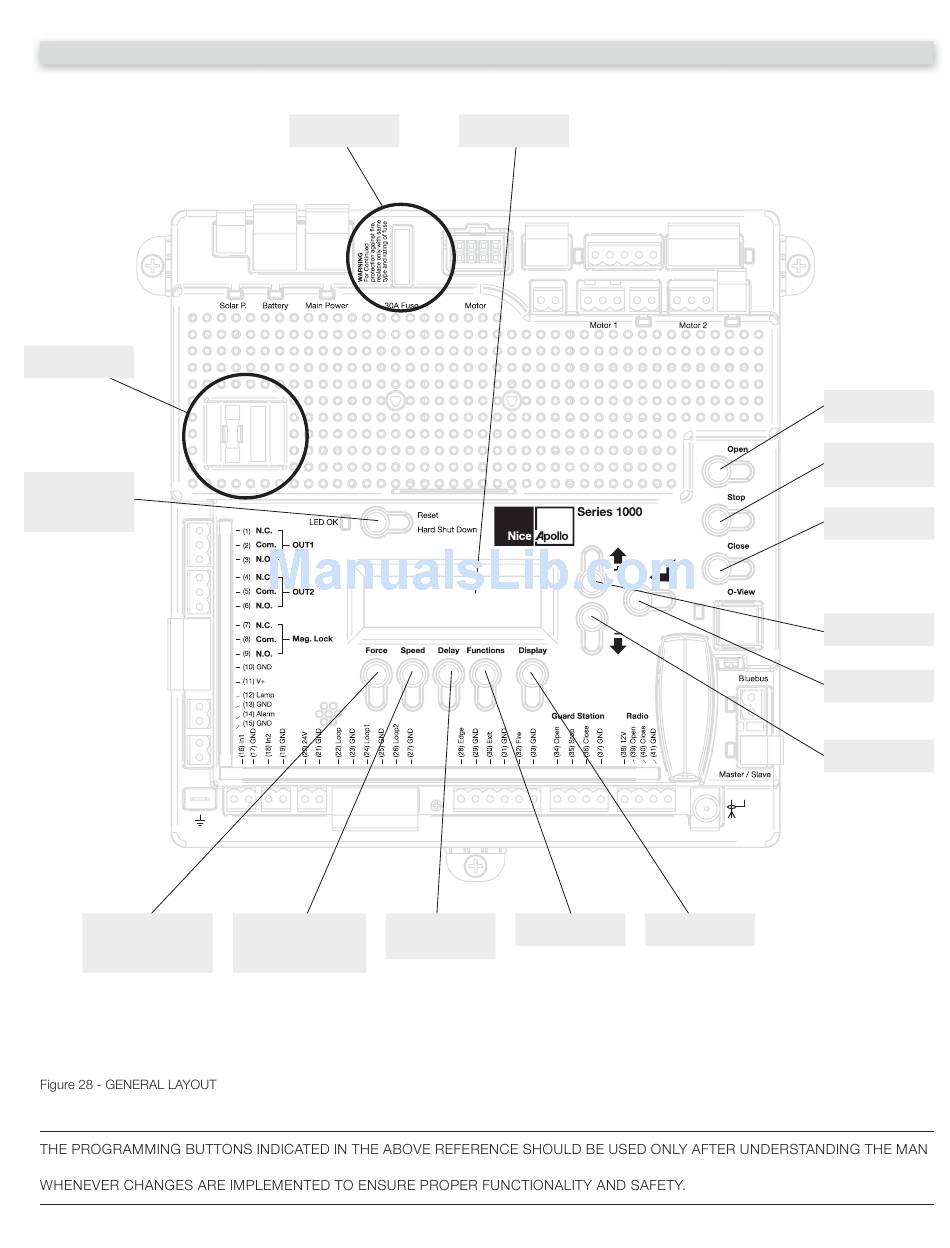

14 - BOARD NOMENCLATURE
Spare fuses
Reset and hard
shut down
button
Adjust force settings
for gate opening and
closing
UAL AND ITS RELATION TO THE PROGRAMMING SEQUENCES SHOWN ON THE FOLLOWING PAGES. CARE SHOULD BE TAKEN
16
Incoming
30 Amp fuse
Adjust speed settings Gate delay time
for gate opening and select
closing
LCD screen
Function select
Close the gate
Selection down
Display select
Open the gate
Stop gate
movement
Selection up
Ok or accept
-
