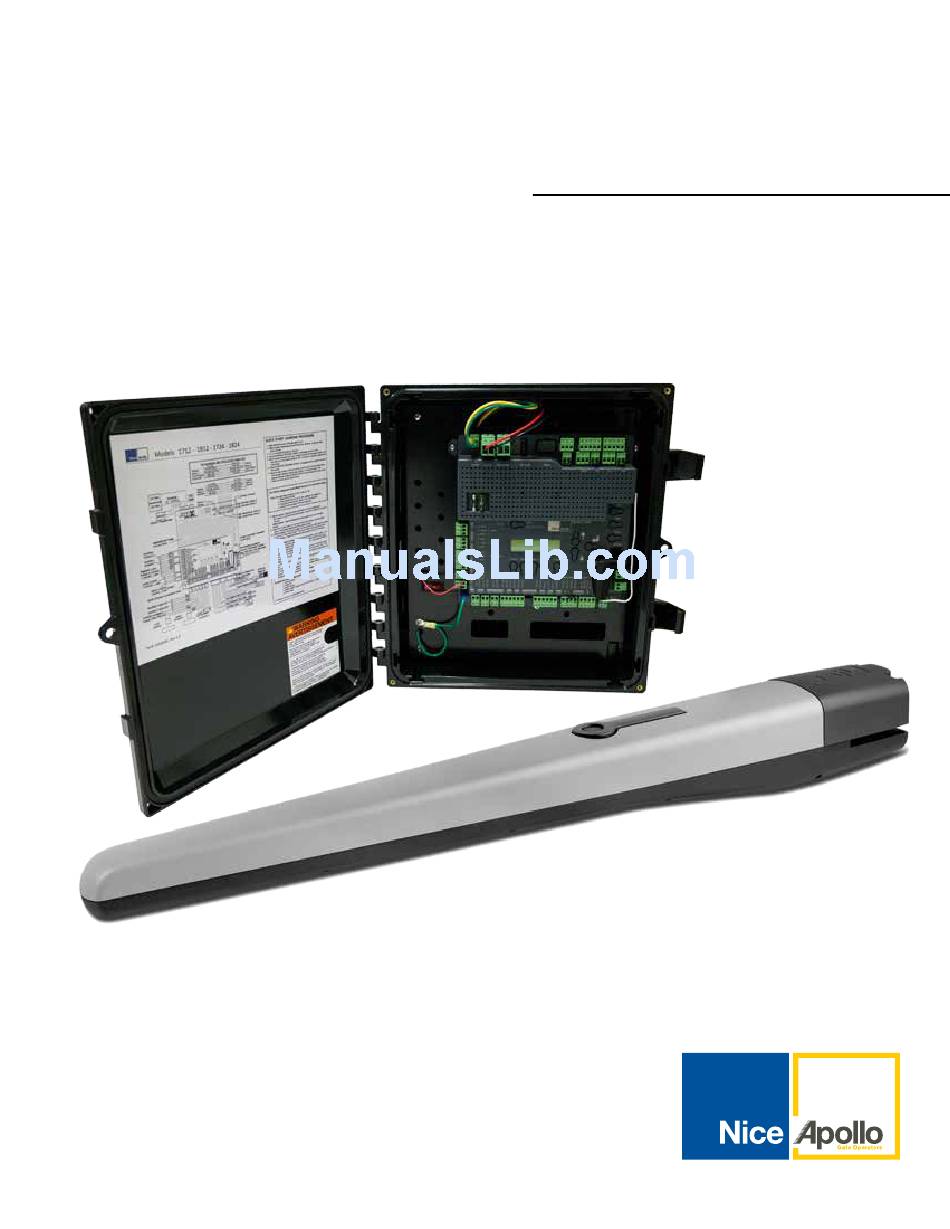

- Page 1 Nice Apollo Swing Gate Opener Model 1724 Model 1824 Vehicular Gate Control Unit Revision 1.0.0.0_02-2014...
-
Page 3: Table Of Contents
TABLE OF CONTENTS CAUTIONS AND NOTES 10 - ACCESSORIES AND SENSORS EXTREMELY IMPORTANT 11 - OPTIONAL INPUTS ETL DEFINITIONS COMPLIANT TO UL325 11.1 - Fire dept. connection 11.2 - Magnetic lock connection 1 - OVERVIEW 11.3 - Guard station 1.1 - Main control board 11.4 - Exit and edge inputs wiring diagram 1.2 - Main control board specifics 11.5 - Radio receiver connection (third party) -
Page 5: Cautions And Notes
CAUTIONS AND NOTES 1.1 - Main control board The 1050 main control board is housed in a protective plastic enclosure This instruction manual is intended to aid the installer in the overall process that includes a 2 line LCD and with 5 dedicated buttons and 3 buttons for of correct installation at the desired location. -
Page 6: Gate Latches
2.2 - Gate latches • Follow the recommended maintenance schedule of one inspection per every 180 days of use. In association with this gate controller and these swing gate operators, at • Do not allow children to play in the area of the operator or to play with any no time should manual gate latches or locks be used. -
Page 7: Gate System Safety Devices
3.3 - Gate system safety devices • A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible. Automatic gate operators are designed to move a heavy steel gate. Great • Test all features for proper functions before placing the automatic vehicular amounts of force are sometimes used to move these heavy systems. - Page 8 4.3.40 Never increase the force used to move the gate, beyond the absolute 4.3.16 Protrusions shall not be permitted on any gate, refer to ASTM F2200 for exceptions, if any. minimum required. 4.3.41 Never use force adjustments to compensate for binding, sticking 4.3.17 Gates shall not be designed, constructed and installed in such a or resistant operation.
-
Page 9: Control Box Layout
5 - CONTROL BOX LAYOUT Battery Motor 1 Motor 2 Transformer Connection Connection Connection Not Used Connection Main power switch Internal Door Closed Power Supply 12VDC Batteries Line Fuse 120VAC Input connection Siren Internal Door Open... -
Page 10: Wiring And Connections
WARNING: External entrapment protection must be added to insure a 6 - WIRING AND CONNECTIONS safe vehicular gate operating system. Remove the screws from the cover and open the door. Place the screws in This swing gate operator uses an inherent entrapment sensing system as well a safe location until the installation is complete. - Page 11 7 - INSTALLATION PROCEDURES 7.1 - Actuator location Pivot Bracket Location Pivot arm position is measured from center of gate hinge 7-1/16” 7-1/16”...
-
Page 12: Attachment Bracket
7.3 - Removing the top cover Locate the top cover and remove the two screws. 4 ½” 38” T5 DIMENSIONS T5 Actuator Dimensions 7.2 - Pivot and gate bracket attachment Cut the pivot bracket and weld being careful to check that the bracket is level, using the base plate if necessary. - Page 13 7.5 - Connect actuator harness Connect the traveler to the gate bracket using the supplied bolt and washer. Be careful not to over-tighten the bolt. Unlock the strain relief bushing located on the bottom of the actuator, insert the power cable through the bushing to the top of the T5 as shown. Ensure there is sufficient conductor on the topside of the T5 to make connections, and then tighten the nut clockwise to secure the cable in the strain relief bushing.
-
Page 14: Learning And Programming Features
7.6 - Actuator limit switch and motor wiring connection to 7.8 - Learning and programming features the control board The learning procedure consists of the following steps shown below: 1. Install electrical power to the control box. 2. Install all gate accessories such as Photo Eye’s, Sensors, Loops and T524V yellow other safety devices. - Page 15 8 - CIRCUIT BOARD LAYOUT OPEN STOP CLOSE 8. Using the CLOSE button on the front of the Control Board, hold the button down until the gate reaches the fully intended closed position. 9. Adjust the Mechanical Stop against the pin for the gate bracket. MOTOR 1 LED - GREEN MOTOR 2 LED - GREEN ENTER...
-
Page 16: Accessory Inputs And Outputs
Commercial Gate Operator Accessory Inputs: 9 - ACCESSORY INPUTS AND OUTPUTS Auxiliary Inputs 1 (16) and 2 (18): These digital inputs may be connected to the digital outputs of accessories and programmed to activate or control 9.1 - Outputs the gate operator in a number of different modes. Shorting pin 1 to pin 2 through a dry contact activates the programmed settings for these input. -
Page 17: Communication Buses
9.3 - Communication buses 1. Have a functioning Nice FloR/A, Inti, One 2 button or 4 button remote control with a battery installed prior to programming the remote control. 2. Press and hold the button on the side of the receiver until the led illuminates green on the receiver, then release the button. -
Page 18: Accessories And Sensors
11 - OPTIONAL INPUTS / OUTPUTS 10 - ACCESSORIES AND SENSORS EXTERNAL ENTRAPMENT PROTECTION Non contact and contact sensors must be installed individually or in 11.1 - Fire department connection combination with each other to provide external entrapment protection. 32 FIRE Care should be exercised to reduce the risk of nuisance tripping, such as 33 GND when a vehicle trips the sensor while the gate is still moving, and one or... -
Page 19: Guard Station
11.3 - Guard station 11.5 - Radio receiver connection (third party) 38 12V 34 OPEN 39 OPEN 35 STOP 40 CLOSE 36 CLOSE 41 GND 37 GND The customer supplied radio receiver allows the gate operator to be operated With the Guard Station switches installed, the user can operate the gate by via remote, such as wireless keycard readers or user remote controls. -
Page 20: Board Nomenclature
12 - BOARD NOMENCLATURE Battery Charger Incoming 30 Battery Input Not Used LCD screen Input Amp fuse Spare fuses Open the gate Stop gate movement Reset and hard shut down button Close the gate Selection up OK or accept Selection down Delay select Function select Display select... -
Page 21: Programming Buttons
• Slow Down – Close: Sets the % of gate opening when the gate begins 13 - PROGRAMMING BUTTONS deceleration to the fully close position. • Partial: Sets the point in the % of gate opening. 13.1 - Force Auxiliary Inputs: Auxiliary inputs IN AUX1 (16) and IN AUX2 (18) can be Static: Set sensitivity to constant force on a scale of 1 to 10 (1 being the programmed with one of the following options: most sensitive). -
Page 22: Display
• Select Master / Slave Motor1 or Motor2 be assigned to any combination of days of the week (Monday through Sunday). Events that are already programmed into the system may be • Activate link for remote Master/Slave (Enables control of an additional gate suspended temporarily, or removed permanently from memory. -
Page 23: General Layout And Safety Access
14 - GENERAL LAYOUT AND SAFETY ACCESS Entrapment Protection Inputs - Typical Installation Diagram Utilizing Loop Sensors and Photocells Loop (safety) 4’ Min. from closed gate Outside property 4’ Min. from closed gate Inside property Loop (shadow) Photo 2 Photo 2 4’... -
Page 24: Inspection And Operation
15 - INSPECTION AND OPERATION 16 - EMERGENCY VEHICLE ACCESS Proper inspection of all equipment is required to ensure continuous 16.1 The automatic vehicular gate system must be designed to allow access functionality, safety and to ensure reliable operation in all weather conditions. to emergency vehicles under different operating conditions. -
Page 25: Glossary
17 - PROGRAMMING QUICK START 18 - GLOSSARY 17.1 Learning the T524V actuator LOCK Ceases all operator function except HIGH PRIORITY inputs. COMMERCIAL / GENERAL ACCESS VEHICULAR GATE OPERATOR 1. Install electrical power to the gate opener unit. CLASS II A vehicular gate operator (or system) intended for use in a 2. -
Page 26: Maintenance Schedule
19 - MAINTENANCE SCHEDULE Table 2 COMPLETE BASIC Alarm Active the primary (inherent) reverse system by blocking the gate with a solid object. The gate should reverse momentarily then stop. Restart the gate and block again with a solid object. The ● ... -
Page 28: Installation Checklist
21 - INSTALLATION CHECKLIST Left box is for installer check off and the right box is for customer check off. ❑ ❑ 1. The gate has been checked to make sure it is level and moves freely in both directions. ❑ ❑ 2. Potential pinch areas have been guarded so as to be inaccessible OR have contact and/or non contact obstruction sensing devices installed. - Page 30 Contact us Nice Group USA Inc. 12625 Wetmore Road Suite 218 San Antonio, TX 78247 Ph. +1.210.545.2900 Fax +1.210.545.2915 www.niceapollo.com...
