Summary of Contents for Nice Apollo H12-ETL-1K

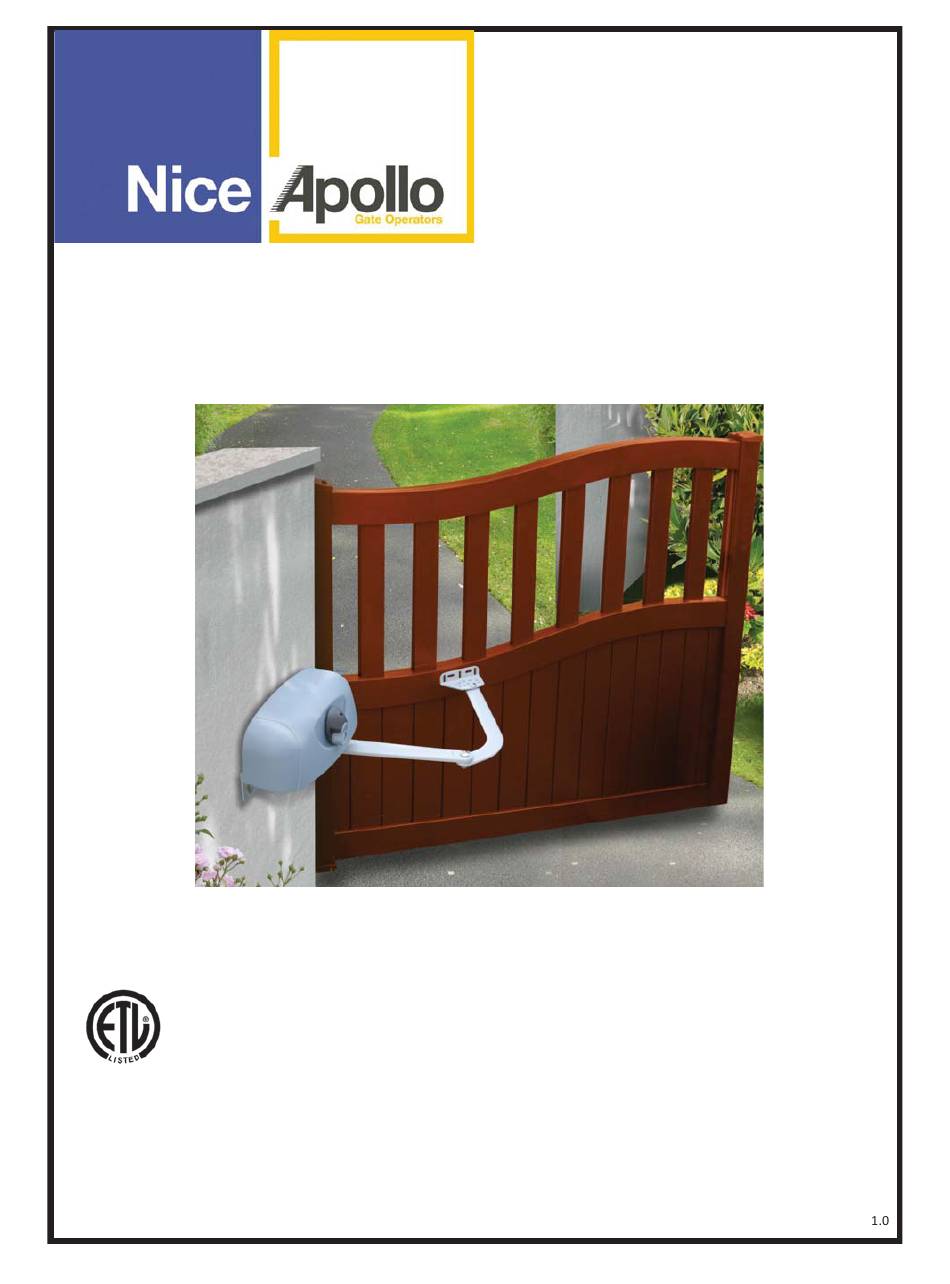

- Page 1 H12-ETL-1K 12 VOLTS DC Swing Gate Operator INSTALLATION MANUAL...
-
Page 2: Table Of Contents
PRE-INSTALLATION CHECKLIST …………………………………...…………………..…...…… IV PART IDENTIFICATION ………………………………………...…………………………………...….. 6 Optional parts identification 1. H12-ETL-1K Technical Dimensions ………………………………………………………..…...…… 7 H12-ETL-1K Physical Overview Dimensions and Set Up 2. OPERATION INSTALLATION ……………………………………………………………..…... 8 2.1 - Mechanical Release Mechanism 2.2 - Motor and Mounting Bracket Assembly 2.3 - Motor and Arm installation... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING - To reduce the risk of injury or death: READ AND FOLLOW ALL INSTRUCTIONS. Installation should be performed by a professional installer. Required welding should be performed by a qualified welder. Should electricity be required, use a certified electrician only. Any device that requires 120 Volts AC should be U.L. -
Page 4: Application
APPLICATIONS The H12-ETL-1K Swing Gate Operator is designed to handle a swing gate up to 10 feet in total length and 400 pounds. Apollo Operators are available only through qualified dealers with an out- standing reputation in the fence and gate industry. These dealers will be able to recommend the prop- er equipment for particular applications. -
Page 5: Pre-Installation Checklist
PRE-INSTALLATION CHECKLIST The following check list should be used before beginning installation: Verify that the proper operator has been selected for this application. Verify proper installation and operation of the gate. 1. Are the hinges serviceable? 2. Does the gate swing free and level? 3. -
Page 6: Part Identification
PART IDENTIFICATION A - Motor Assembly B - Arms (2 Pieces) C - Attach Bracket D - Mounting Hardware E - Manual Release Handel and Lock Keys Part# A2040 Cable for (12’) Part# 273 - CAUTION Sign (2 each) Part# 11111B - CONTROL BOX OPTIONS Part# 201 5 Watt Solar Panel &... -
Page 7: H12-Etl-1K Technical Dimensions
1 - H12-ETL-1K TECHNICAL DIMENTIONS 1.1 - H12-ETL-1K PHYSICAL OVERVIEW DIMENTIONS AND SETUP 6-1/2 13-3/4 Figure 1 - GENERAL OVERVIEW DIMENTIONS Figure 2 - FOUNDATION BOX LOCATION TABLE 1:Max dimensions table Standard Arms Extended Arms (PART # NH-HYA12) Amax 5-7/8... -
Page 8: Operation Installation
OPERATOR INSTALLATION 2 - H12-ETL-1K INSTALLATION GUIDE 2.1 - Mechanical Release Mechanism Step 1: Disengage Motor using manual release and remove cover Figure 3 - Mechanical release assembly Figure 4 - Operation of the mechanical release... -
Page 9: Motor And Mounting Bracket Assembly
2 - H12-ETL-1K WIRING INSTALLATION GUIDE 2.2 - Motor and Mounting Bracket Assembly STEP 2: Remove motor from mounting bracket Figure 5: Mounting Bracket Assembly STEP 3: Install mounting bracket A) Determine the height on the gate where the operator will at- tach. -
Page 10: Motor And Arm Installation
2 - H12-ETL-1K WIRING INSTALLATION GUIDE 2.3 - Motor and Arm installation Step 4: Assemble the pieces of the arm and the gate bracket as shown in (Figure 7) Figure 7: Mounting Arm/s Assembly Step 5: Re-install motor on bracket and connect the arm to the motor Figure 8: Mounting Bracket &... -
Page 11: Control Box And Harness Installation
2 - H12-ETL-1K WIRING INSTALLATION GUIDE 2.4 - Control Box and Harness Installation Step 7: Control Box Installation Mount the control box so that (12’) will reach the mo- tor. Do not mount the control box where the per- son using the push button on side of the box can come in contact with the gate. - Page 12 2 - H12-ETL-1K WIRING INSTALLATION GUIDE (Continued) 2.4 - Control Box and Harness Installation (Continued) Step 9: Connect harness to Control Board H12-ETL-1K Swing gate Actuator limit switch and Operators motor wiring connection to the controller See Figure 12 for a wiring dia- gram of H12-ETL-1K swing gate operator to the 5-pin Motor 1 &...
-
Page 13: Learning And Limit Switch Adjustment
2 - H12-ETL-1K WIRING INSTALLATION GUIDE (Continued) 2.5 - Learning and Limit switch adjustment Apollo has taken great care to simplify the installation, operation and safety of this device and to ensure longevity and reliability of the unit over time. The learning procedure consists of the follow-... - Page 14 2 - H12-ETL-1K-ETL INSTALLATION GUIDE (Continued) 2.5 - Learning and Limit switch adjustment (continued) Adjust the Closed Limit Switch (See Figure 17) until the RED light illuminates on the front of the control board (See Figure 16). The fully CLOSED limit switch is now set.
-
Page 15: Limit Switch Adjustment
2 - H12-ETL-1K INSTALLATION GUIDE (Continued) 2.6 - Limit Switch Adjustment Upper Collar set OPEN limit Bottom Collar set CLOSE limit Figure 17: Limit Collar Adjustment Step 11: Re-install Cover and re-engage manual release Figure 18: Plastic Cover Installation and mechanical release handle... -
Page 16: Circuit Board Layout
3 - CIRCUIT BOARD LAYOUT Figure 19 - CONTROL BOARD BUTTONS Figure 20 - CIRCUIT BOARD LAYOUT... -
Page 17: Outputs & Inputs
4 - OUTPUTS & INPUTS Commercial Gate Operator Accessory Out- puts: OUT1 and OUT2: Individual, isolated relays provide COMMON, NORMALLY OPEN, and NORMALLY CLOSED dry contacts for switch- ing accessories based on programming of the “Auxiliary IO” function. These outputs are pro- grammed in the “FUNCTION Auxiliary I/O”... -
Page 18: Communication Buses
4.1 - Gate Operator Accessory Inputs (Continued) Guard Station Open: (34) Dry contact input for a guard station open switch. Momentarily shorting the digital input to GND opens the gate to the full open position with the subsequent auto-close feature enabled. -
Page 19: Programming The Plug-In Receiver And Remote Controls
4.2.2 - Programming the plug-in receiver and remote controls SMXI/A Plugin Receiver: The SMXI/A 433Plug-In Receiver provides up to 15 channels for specific control of individual gate functions. The receiver includes built-in programming functions for adding or removing Nice FloR/A wireless remote con- trols to/from a gate installation. -
Page 20: Oview Remote Control
4.2.3 - OVIEW REMOTE CONTROL OVIEW (see page 6 for Picture of OVIEW) Programming and diagnostic unit which connects directly to the gate controller and is part of the Nice “Opera” control system. The unit can be used in “stand-alone” mode via its front-panel keypad, or it may be accessed via a Bluetooth or cellular-enabled PDA, PC, or Smartphone when used with the O-View Software Suite. -
Page 21: Optional Inputs/Outputs
6 - OPTIONAL INPUTS/OUTPUTS 6.1 - Fire dept. connection 32 FIRE 33 GND Dry contact input for a fire department control switch. Normally Open (NO) contact must be shorted to ground through a switch to open the gate. Figure 25 - FIRE DEPT. INPUT 6.2 - Exit and edge inputs wiring diagram 28 EDGE 29 GND... -
Page 22: Magnetic Lock Connection
6.4 - Magnetic lock connection 7 NC 8 Com (Common) 9 NO 10 GND 11 V+ This connection is used to install the magnetic lock. In this instance a gate can be locked magnetically to prevent a forced opening. Consult lock manual for specifics on installation and wiring. -
Page 23: General Layout And Safety Access
Photocells EXIT Figure 30 - LAYOUT FOR IN-GROUND LOOPS Figure 31 - LAYOUT FOR PHOTOCELLS 4. Control Box 1. Photo Beam (Optional) 5. Solanoid Lock (Optional) 2. External Stops (Optional) 6. Siren 3. Box with H12-ETL-1K (Actuator) 7. Keypad (Optional) -
Page 24: Accessories And Sensors
9 - ACCESSORIES AND SENSORS EXTERNAL ENTRAPMENT PROTECTION: Non-contact and contact sensors must be installed individually or in combination with each other to provide external entrapment protection. Care should be exercised to reduce the risk of nuisance tripping, such as when a vehi- cle trips the sensor while the gate is still moving, and one or more non-contact sensors shall be located where the risk of entrapment or obstruction exists, such as the perim- eter reachable by a moving gate or barrier. -
Page 25: Board Diagram
10 - BOARD DIAGRAM Figure 32 - GENERAL BOARD OVERVIEW THE PROGRAMMING BUTTONS INDICATED IN THE ABOVE REFERENCE SHOULD BE USED ONLY AFTER UNDERSTANDING THE MANUAL AND ITS RELATION TO THE PROGRAMMING SEQUENCES SHOWN ON THE FOLLOWING PAGES. CARE SHOULD BE TAKEN WHENEVER CHANGES ARE IMPLEMENTED TO ENSURE PROPER FUNCTIONALITY AND SAFETY. -
Page 26: Programming Buttons
11 - PROGRAMMING BUTTONS 11.1 - Force Static: Set sensitivity to constant force on a scale of 1 to 10 (1 being the most sensitive). Dynamic: Set sensitivity of sudden impact force to the moving gate on a scale of 1 to 10 (1 being most sensitive). -
Page 27: Function
11.5 - Function Learn: Puts the gate operator into learning mode for a Swing or Slide gate and Blue BUS peripherals. Learning mode for a Swing or Slide style gate involves selecting the gate type (Light, Average, Heavy), then fully opening and closing the gate to sense the limits. Selecting the gate type selects precalculated values for the FORCE, SPEED, and ACCELERATION settings. - Page 28 11.5 - Function (continued) Radio Channel: For the Plug-in Onboard Receiver, 15 radio channels may be programmed with one of the following options: • No program • OPEN (Default CH. 2) • CLOSE • STEP (Default CH. 1) • PARTIAL •...
- Page 29 11.5 - Function (Continued) Timer (continued) To program weekly events EV1 through EV8, perform the following steps: 1. Press FUNCTION -> Events. 2. Press and hold OK to display EV1 (display will blink “EV1”). 3. Press UP or DOWN to toggle between events, then press OK to make a selection. The display changes to hours.
- Page 30 11.5 - Function (Continued) Advance Settings: The following settings are available for customizing the gate operator as required by the custom- er’s installation requirements: Set Language (English, Spanish, Italian) Set clock 12H/24H Set LCD Contrast Direction of the Motor (only selectable in learning mode) Auto Close Opt.
-
Page 31: Glossary
11.6 - Display ESC: Exit the DISPLAY menu. Info: Displays the manufacturer name, product name/model, software versions, and serial number. Clock: Displays the calendar date and time in the real time clock. Pressing and holding the “OK” button for 5 seconds enables the date and time settings to be updated manually. Main Volt: Displays the gate operator main control voltage in volts DC. -
Page 32: Emergency Vehicle Access
12 - GLOSSARY (Continued) CLASS IV - RESTRICTED ACCESS VEHICULAR GATE OPERATOR - A vehicular gate operator (or system) intended for use in a guarded industrial location or building such as an airport security area or other restricted access locations not servicing the general public, in which unauthorized ac- cess is prevented via supervision by security personnel. -
Page 33: Maintenance Schedule - Apollo Gate Opener
14 - MAINTENANCE SCHEDULE - APOLLO GATE OPENER TABLE 2 COMPLETE BASIC Active the primary (inherent) reverse system by blocking the gate with a solid object. The gate should reverse momentarily then stop. Alarm Restart the gate and Lock again with a solid object. The gate should ●... -
Page 34: Apollo H12-Etl-1K Programming Quick Start
16 - APOLLO H12-ETL-1K PROGRAMMING QUICK START Learning H12-ETL-1K Actuator 1. Install all gate accessories such as Photo-Eye’s, Sensors, Loops and other safety devices. 2. Disengage the mechanical release and move the gate manually (with your hands) to ensure that the gate travels to the fully open and fully closed positions with no binding or problems. -
Page 35: Installation Checklist
18 - INSTALLATION CHECKLIST Left box is for installer check off and the right box is for customer check off. 1. The gate has been checked to make sure it is level and moves freely in both di- rections. 2. Potential pinch areas have been guarded so as to be inaccessible OR have con- tact and/or non-contact obstruction sensing devices installed. - Page 36 LIMITED TWO-YEAR WARRANTY Apollo Gate Operators are warranted against defects for a period of 24 months from the date of purchase, providing recommended installation procedures are followed. This warranty is in lieu of all other warranties expressed or implied (some states do not allow limitations on how long an implied warranty lasts, so this limitation may not apply to you) and shall be considered void if damage was due to improper installation or use, connection to improper power source, or if damage was caused by fire, flood, or lightning.
