Summary of Contents for Nice Apollo T5-ETL

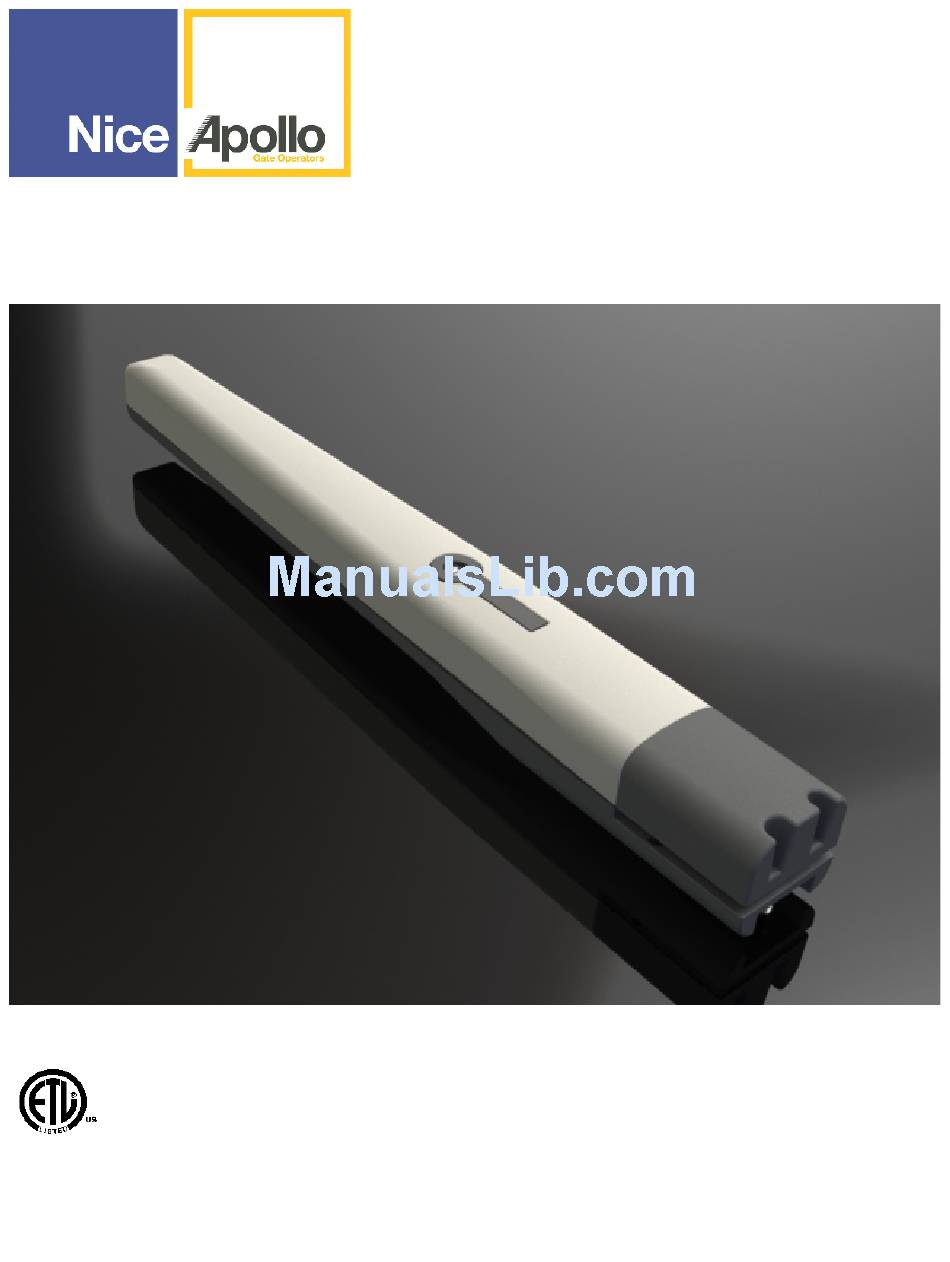

- Page 1 T5-ETL T7-ETL 12 VOLT DC Swing Gate Operator INSTALLATION MANUAL 7/10...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS ............. 3 Applications ......................4 Pre-Installation Checklist .................. 5 Operator Components ..................6 Pivot Arm Installation……………………………………………………………..…. 7 Gate Bracket and Actuator Installation ............8 Limit Adjustments ....................9 Electrical Connections ……………………………………………………………… 11 Battery Connections ………………………………………………………………… 12 Encoder Board Connections ………………………………………………………. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING - To reduce the risk of injury or death: READ AND FOLLOW ALL INSTRUCTIONS. Installation should be performed by a professional installer. Should electricity be required, use a certified electrician only. Any device that requires 120 Volts AC should be U.L. approved. Install control devices such as keypads far enough away (5 feet or further) from any moving parts of the operator and gate to prevent possible injury. -
Page 4: Applications
The Toona Swing Gate Operator is designed to handle a swing gate up to 14 feet (T5-ETL) and 20 feet (T7-ETL) in total length. Apollo Operators are available only through qualified dealers with an outstanding reputation in the fence and gate industry. -
Page 5: Pre-Installation Checklist
PRE-INSTALLATION CHECKLIST The following checklist should be used before beginning installation: Verify that the proper operator has been selected for this application. Determine the general location of the operator, access controls, and solar panel (if used). 1. Is there a suitable location for the operator? 2.Can the solar panel (if used) be mounted in an unobstructed area facing south? 3. -
Page 6: Operator Components
OPERATOR COMPONENTS 2 pieces Toona 5 TO5012 Toona 7 TO7012 Actuator Gate attach bracket (two pieces) Pivot bracket Mounting Hardware Release lock keys Control Box Cable Harness Caution signs (2) Battery Charger (optional) Solar Panel (optional) -
Page 7: Pivot Arm Installation
TOONA 5/7 Pivot Arm position is measured from the center of the gate Toona 5 7-1/16” 7-1/16” Toona 7 7-3/4” 7-3/4” These dimensions are for 4” post with hinge in center. Adjust ac- cordingly if post size or hinge loca- tion varies. -
Page 8: Gate Bracket And Actuator Installation
TOONA 5 F= 1.75” TOONA 7 F= 2”... -
Page 9: Limit Adjustments
Toona 5/7 3.9” max Limit Switch Adjustment Loosen nuts and adjust limits. Retighten nuts. (Nuts may be hex or socket.) -
Page 11: Electrical Connections
T5-ETL Actuator Wiring T7-ETL Limit Wires The limit wires (orange and white) are reversed on the T7-ETL from the picture shown. -
Page 12: Battery Connections
BATTERY CONNECTIONS If a electrical battery charger will be used, a 12 volt sealed lead acid battery rated for 33 ampere hour or more is recommended for the Toona 5 & 7. A 1.5 amp automatic battery charger is sufficient for most applications The battery may also be recharged with a solar panel. -
Page 13: Encoder Board Connections
TOONA Wiring Diagram SIREN ACTUATOR CABLE... -
Page 14: Dimensions And Options
4.5” 38” 4.125” 47.25” 5” 5.9” Description 1 Actuator 5 Keypad* 2 Photo Beam * 6 Siren 3 External Stop* 7 Solenoid Lock* 4 Photo Beam* 8 Control Box * Optional... -
Page 15: Programming Current Sensing
PROGRAMMING CURRENT SENSING The 835/836 control boards incorporate a safety feature that will put the op- erator into a hard shutdown mode if the control board detects a current sense two consecutive times during a cycle. This hard shutdown condition may be reset by shorting the FIREBOX or UL inputs on the left side of the control board to ground. -
Page 16: Control Board
835/836 Control Board Parts Identification Timer To Close - Microprocessor Dual Gate Delay - Current Sensitivity - Adjustments Program Switches Hard Shutdown Reset Operate Push Button Remote Monitor Outputs Optional Device Inputs LED Enable & Learn Mode Push Button Stop Circuit Jumper Control Board Reset Fire &... - Page 17 Master/Slave Connector Board Harness Function Pin 1 Orange Open Limit Pin 2 White Close Limit Pin 3 Black Motor (positive on open, negative on close) Pin 4 Motor (negative on open, positive on close) Pin 5 Green Common for both limit switches Pin 6 Yellow Encoder Input from EIB module...
- Page 18 Adjustments TIMER TO CLOSE Adjusts time before gate automatically closes Adjustable 5 to 70 seconds. DUAL GATE DELAY Adjusts delay between master and slave (Dual board only) operation 0-4 seconds (836 only with magnetic, solenoid, and other locking devices) Increases or decreases the Auto Reverse CURRENT SENSITIVITY sensitivity.
- Page 19 Program Switches 1 TIMER TO CLOSE Gate does not automatically close. Gate automatically closes. 2 TIMER TO CLOSE OPT. Gate automatically closes from Gate automatically closes only when completely any position after opening. open (open limit engaged). 3 SLAVE DISABLE Enables slave side (dual gate use).
- Page 20 Optional Device Inputs Supplied Battery Ground Activate Gate (Push button activation when momentarily shorted to ground) Supplied Battery Voltage (Protected with 3 Amp fuse) Supplied Battery Ground Activate Gate (Push button activation when momentarily shorted to ground) Supplied Battery Voltage (Protected with 3 Amp fuse) EDGE Reverse edge input.
-
Page 21: Siren Connection
APOLLO Gate Operators, Inc. 911 Siren The 911 Siren is included with all Apollo ETL Gate Operators. Mount siren in an area that will produce maximum performance (additional wire may be required). Connect the red wire to the SIREN connector on the Remote Monitor Output Connector block. Connect the black wire to the GND connector on the Remote Monitor Output Connector block. -
Page 22: Push To Open Installation
PUSH TO OPEN APPLICATION... -
Page 24: Radio Receiver Options
APOLLO RECEIVER OPTIONS Gate Operators Do not confuse the receiver code switches with the red program switches on the gate control board. Never set all code switches to the same position. Transmitters must match code switches for proper operation. If power is taken directly from battery or connected as shown below, receiver should be configured for 12VDC Multi-Code/Digi-Code black gray... -
Page 25: Specifications
SPECIFICATIONS Supply Voltage ……………………………………………….. 12VDC Recommended Battery (electrically charged) .………..….. 12 V, 33aH (or larger) Sealed Lead Acid Recommended Battery (solar charged) …………………… 12 V, 105 aH Battery Charger ………………………………………………. 1.5 or 6 amp Automatic Recommended Solar Panel ………………………………… 5 watt minimum Duty Cycle …………………………………………………….. -
Page 26: Warranty
APOLLO Gate Operators, Inc. LIMITED TWO-YEAR WARRANTY Apollo Gate Operators are warranted against defects for a period of 24 months from the date of purchase, providing recommended installation procedures are followed. This warranty is in lieu of all other warranties expressed or implied (some states do not allow limitations on how long an implied warranty lasts, so this limitation may not apply to you) and shall be considered void if damage was due to improper installation or use,...
