Mini Barcode Reader Quick Guide Mini Barcode Reader Quick Guide P/N: 8002-0027*00...
Page 2
FCC WARNING STATEMENT WARNING AND CAUTION This equipment has been tested and found to comply with the limits for a Class B digital 1. Take any metals into contact with the terminals in connectors. device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide 2.
Page 3

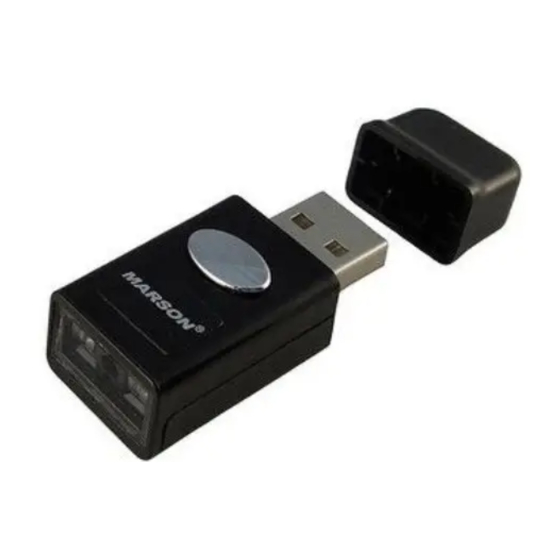

OUT OF THE BOX INTRODUCTION Protective Cover USB Connector Trigger Beeper Exit Window SPECIFICATIONS Mini Barcode Reader Light source 625nm visible red LED Scan rate 240 scans/sec Sensor Linear CMOS sensor Resolution 5mil/ 0.127mm Housing Plastic(Polycarbonate) Interface Voltage 5 VDC ± 5% Current <...
Page 4
GETTING STARTED BEEPER INDICATION Single long beep Power up Single beep Good read Single fast beep The scanner reads a Code39 of ASCII in configuration procedure Two beeps The scanner successfully reads a configuration barcode Three fast beeps The scanner reads an unexpected barcode during configuration procedure.
Page 5
GENERAL SETTINGS READING MODE . A001$ . F002$ TRIGGER DEFAULT . P023$ . F003$ RESET TOGGLE . A007$ . F001$ CHECK FLASH VERSION INTERFACE . F005$ CONTINUOUS . C008$ USB HID . F006$ CONTINUOUS BEEPER AUTO OFF . F012$ BEEP OFF - 7 - - 8 -...
Page 6
KEYBOARD LAYOUT . C010$ . C014$ ENGLISH ITALIAN (USA) . C018$ . C017$ ENGLISH CZECH (UK) (QWERTY) . C012$ . C022$ CZECH FRENCH (QWERTZ) . C011$ . C021$ GERMAN HUNGARIAN . C009$ . C016$ JAPAN SWISS (106 key) . C013$ .
