- Page 1 Mini Wireless Barcode Reader Quick Guide For full user’s manual, please contact your local distributor. Mini Wireless Barcode Reader Quick Guide (Rev7) P/N: 8012-0061000...
- Page 2 FCC WARNING STATEMENT WARNING AND CAUTION This device complies with Part 15 of the FCC Rules. Operation is subject to the 1. Take any metals into contact with the terminals in connectors. following two conditions: (1) this device may not cause harmful interference, and (2) 2.
-
Page 3: Specifications

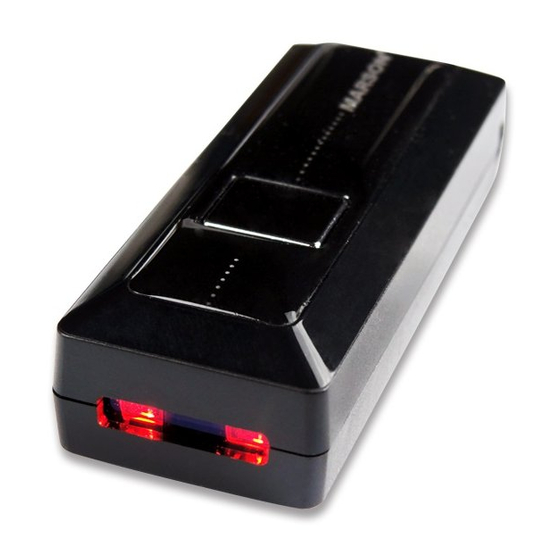

OUT OF THE BOX INTRODUCTION Trigger LED Indicator Mini Wireless Mini USB port Barcode Reader (w/ Protective Cover) Exit Window SPECIFICATIONS Sensor Linear CMOS sensor Resolution 4mil/ 0.1mm Indicator LED, Buzzer Quick Guide Quick Connection Card Housing Plastic(PC) Profile SPP, HID Battery Life 6000 scans (1 scan/ 5 sec) Charge Time 2 hours (fully charged) -
Page 4: Led Indication
BEEPER INDICATION GETTING STARTED Single long beep Power up Single beep Good read Single short beep The scanner reads a Code39 of ASCII in configuration procedure Two beeps i. Wireless connection ii. The scanner successfully reads a configuration barcode ... -
Page 5: Getting Connected
GETTING CONNECTED PINCODE SETUP There are two modes of wireless communication: . E043$ STEP 1 . E032$ [ Recommended ] *.E043$* *.E032$* BT mode - HID Pincode Start 1. Press the trigger for 1 second to activate the scanner. 2. Scan [DISCONNECT] STEP 2 3. -
Page 6: Numeric Bar Codes
NUMERIC BARCODES - 9 - - 10 -... -
Page 7: Power Off Timeout
SMARTPHONE/TABLET CONNECTION POWER OFF TIMEOUT Getting Connected - iOS & Android The period of inactivity before auto power-off. Variable Timeout Simply follow instruction in [BT mode - HID] (page 7) ,in which step 5 can be skipped since iOS & Android will not require pin-code . -
Page 8: Interface Selection
INTERFACE SELECTION BATCH MODE . E043$ . E054$ *.E043$* BT HID ENABLE . E042$ . E053$ *.E042$* BT SPP DISABLE . C008$ In Batch Mode, data will be temporarily stored in memory buffer *.C008$* USB HID (2KB RAM) when the scanner is out of range or in poor connection quality. - Page 9 GENERAL SETTINGS READING MODE . A001$ . F002$ TRIGGER DEFAULT . P023$ . F003$ ABORT TOGGLE . A007$ . F001$ CHECK FLASH VERSION BEEPER . F005$ CONTINUOUS . F012$ BEEP OFF . F006$ CONTINUOUS . F018$ AUTO OFF BEEP ON - 15 - - 16 -...
- Page 10 KEYBOARD LAYOUT . C009$ . C010$ JAPAN ENGLISH (USA) (106 key) . C018$ . C025$ ENGLISH CANADIAN (UK) (FRENCH) . C034$ . C012$ CANADIAN FRENCH (TRADITIONAL) . C029$ . C011$ GERMAN NORWEGIAN . C026$ . C014$ ITALIAN SWEDISH . C031$ .
- Page 11 KEYBOARD LAYOUT . C030$ . C017$ CZECH BELGIAN (QWERTY) (AZERTY) . C028$ . C022$ CZECH DUTCH (QWERTZ) . C027$ . C021$ HUNGARIAN DANISH (QWERTZ) . C024$ . C032$ HUNGARIAN SLOVAK (101 KEY) . C033$ . C016$ SWISS BRAZILIAN (GERMAN) (PORTUGUESE) .
-
Page 12: Gs1 Databar Expanded
ENABLE SYMBOLOGIES . G010$ . A002$ ENABLE CODE 93 ALL CODE . N017$ . K010$ CODE 32 IATA . L010$ . L014$ UK PLESSEY TELEPEN . L001$ . N032$ GS1 DATABAR . N010$ . N001$ INDUSTRIAL GS1 DATABAR 2 OF 5 LIMITED . -
Page 13: Check Version
TERMINATOR . D012$ The following pages only apply to the memory version mini wireless scanner. . D011$ The firmware version with suffix “MEM” . D013$ supports memory function. e.g. SM3-c-X.XX.BTA.MEM CR + LF The firmware version can be found either . -
Page 14: Data Format
MEMORY MODE DATA FORMAT For memory version only For memory version only . R011$ . C035$ *.R011$* *.c035$* DATA FORMAT MEMORY MODE The default Data Format is <Barcode Data> only After scanning the above barcode, the scanner will be able to collect barcode below are all items available for display and their codes: data off-line. -
Page 15: Date Format
DATE FORMAT TIME FORMAT For memory version only For memory version only . R008$ . R009$ *.R008$* *.R009$* DATE FORMAT TIME FORMAT The default Date Format is DD/MM/YYYY (Code = 09), below The default Time Format is HH:MM:SS (Code = 01), below is full list of available formats and their setup codes: are available formats and their setup codes: Code... -
Page 16: Date And Time Setup
TEST BARCODES DATE & TIME SETUP For memory version only . R006$ Code 39 *.R006$* SET DATE Example: To set Date to 2012-08-01 (Year-Month-Day): CODE-39 TEST 1. Scan [Set Date] 2. Scan [1], [2], [0], [8], [0], [1] on page 9 & 10. Interleaved 2 of 5 3.
