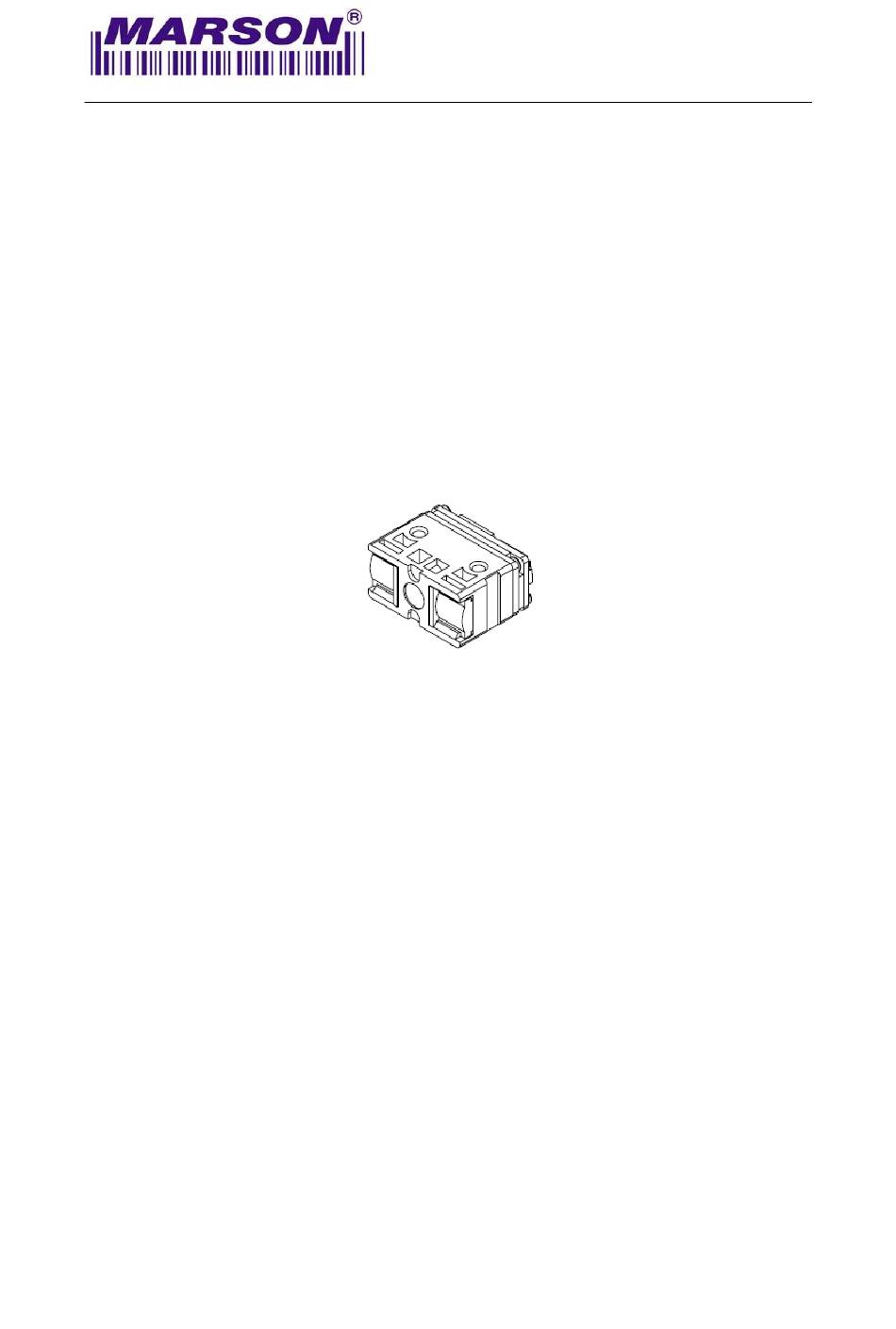

MT10 Linear Image Barcode Scan Engine, Integration Guide, V1.9
MT10
MT10
(3.3V
Linear
Barcode
Scan
Engine)
(3.3V
Linear
Barcode
Scan
Engine)
Integration
Guide
Integration
Guide
Version 1.9
DATE: 2018/09/03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Marson MT10

  • Page 1 MT10 Linear Image Barcode Scan Engine, Integration Guide, V1.9 MT10 MT10 (3.3V Linear Image Barcode Scan Engine) (3.3V Linear Image Barcode Scan Engine) Integration Guide Integration Guide Version 1.9 DATE: 2018/09/03...
  • Page 2: Table Of Contents

    MT10 Linear Image Barcode Scan Engine, Integration Guide, V1.9 TABLE OF CONTENTS INTRODUCTION..................... INTRODUCTION 1-1. MT10 Block Diagram................1-1. MT10 Block Diagram 1-2. Electric Interface..................1-2. Electric Interface 1-2-1. Assignment................1-2-1. Assignment 1-2-2. Electric Characteristics..............1-2-2. Electric Characteristics 1-2-3. Flex Cable..................
  • Page 3: Introduction

    MT10 is ideal for integration into data terminals and other small mobile devices. The MT10 consists of 2 illumination LEDs, a high-quality linear image sensor and a microprocessor that contains powerful firmware to control all aspects of operations and enable communication with the host system over the standard set of communication interfaces.
  • Page 4: Electric Interface

    MT10 Linear Image Scan Engine, Integration Guide, V1.9 Electric Interface Electric Interface 1-2-1. Assignment 1-2-1. Assignment Pin1 Pin13 (Back View of MT10) Pin# UART Description Schematic Example ------------ Supply voltage input. +3V3 Must always be connected to a 3.3V power supply.
  • Page 5 MT10 Linear Image Scan Engine, Integration Guide, V1.9 Pin# UART Description Schematic Example Input When handshaking is enabled, host authorizes MT10 to transmit data on TXD Sipex® Vendor P/N: SP232ACT line. USB D+ Bidirectional Differential Signal ------------------------------------------ Transmission Output When handshaking is...
  • Page 6 MT10 Linear Image Scan Engine, Integration Guide, V1.9 Pin# UART Description Schematic Example Output Active high, it indicates the status of Power-Up or a successful LED1 GREEN barcode decoded (Good Read). 330R Decode LED 2N3904 Boot 0 Boot 0 Input...
  • Page 7: Pin Assignment

    1-2- Flex Cable The flex cable is used to connect MT10 to the host side. There are 13 pins on the MT10 (engine) side and 12 pins on the host side. Please see 2-10 for more details of flex cable.
  • Page 8: Operational Timing

    20 ms until the successful scan is achieved, as indicated by the Buzzer/LED signals. In Sleep Mode, the MT10 can be waken up by the Trigger signal which MUST be kept low for at least 20 mS until the successful scan is achieved, as indicated by the Buzzer/LED signal.
  • Page 9: Specifications

    3. The minimum duration of waking up MT10 from Sleep Mode by Trigger signal is about 2 ms. 4. The maximum duration of waking up MT10 from Sleep Mode by Trigger signal and completing decode (when barcode is within optimal focus) is...
  • Page 10 MT10 Linear Image Scan Engine, Integration Guide, V1.9 Dimension W14 x L11.9 x H7 mm Weight Color Black Material Cable 13pin to 12pin flex cable Electrical Operation Voltage 3.3VDC±0.15VDC Working Current < 75mA (UART) ; < 85mA (USB) Standby Current <...
  • Page 11: Uart Interface

    MT10 Linear Image Scan Engine, Integration Guide, V1.9 MSI Plessey Code UK Plessey Code Telepen Code GS1 Databar Regulatory Functional after 4KV contact, 8KV air discharge (it requires housing that is designed for ESD protection and stray from electric fields.) FCC –...
  • Page 12: Usb Hid

    MT10 Linear Image Scan Engine, Integration Guide, V1.9 UART Scanning above barcode will set your MT10 to UART interface. B. Command Mode Firmware version: SM3-d-x.xx.CMD (MT10 P/N: 110P-4000000) Characteristics: (1) Configurable by commands sent from host or ® (a PC-based software utility, available for download at www.marson.com.tw)
  • Page 13: Operation Method

    MT10 enters into Standby Mode and is ready for operation. 2. Once the MT10 triggered by either hardware or software method, it will emit a narrow, horizontal slab of light which is aligned with the sensor’s field of view.
  • Page 14: Scanning Range

    MT10 Linear Image Scan Engine, Integration Guide, V1.9 canning ange canning ange Typical canning ange Typical canning ange Test Condition: Barcode Length: Code39 – 4 characters EAN/UPC – 13 characters Bar & Space Ratio: 1 to 2.5 Ambient Light: > 500 lux Minimum &...
  • Page 15: Guaranteed Scanning Range

    MT10 Linear Image Scan Engine, Integration Guide, V1.9 Guaranteed canning ange Guaranteed canning ange Test Condition: Barcode Length: Code39 – 4 characters EAN/UPC – 13 characters Bar & Space Ratio: 1 to 2.5 Ambient Light: > 500 lux Minimum & Maximum Scan Distance...
  • Page 16: Pitch Angle, Roll Angle And Skew Angle

    MT10 Linear Image Scan Engine, Integration Guide, V1.9 itch ngle, Roll ngle Skew ngle itch ngle, Roll ngle Skew ngle Be aware of the tolerance for the pitch, roll and skew angle of bar code you are trying to scan.
  • Page 17: Specular Dead Zone

    Do not place the MT10 directly over the barcode. The light reflecting directly back into the MT10 from the barcode is known as specular reflection, which can make decoding difficult. The specular dead zone of MT10 is up to 5° depending on target distance and substrate glossiness.
  • Page 18: Curvature Degree

    MT10 Linear Image Scan Engine, Integration Guide, V1.9 Curvature Degree Curvature Degree The curvature degree of a scanned barcode is specified as below: Barcode Code 39 (L=32 mm) Code 39 (L=43 mm) Resolution 13 mil (0.33 mm) 20 mil (0.51 mm) R ≧...
  • Page 19 MT10 Linear Image Scan Engine, Integration Guide, V1.9 Connector Specification Connector Specification 12-pin Molex® FPC Connector (Molex P/N: 54548-1229), to be installed on Host side. ___________________________________________________________________________________...
  • Page 20: Installation

    1. ALWAYS use grounding wrist straps and a grounded work area when unpacking and handling the MT10. 2. Mount the MT10 in a housing that is designed for ESD protection and stray electric fields. 3-2. Mechanical Dimension 3-2.
  • Page 21: Window Materials

    MT10 Linear Image Scan Engine, Integration Guide, V1.9 Window Material Window Material Following are descriptions of three popular window materials: 1. Poly-methyl Methacrylic (PMMA) 2. Allyl Diglycol Carbonate (ADC) 3. Chemically tempered float glass Cell Cast Acrylic (ASTM: PMMA) Cell cast Acrylic, or Poly-methyl Methacrylic is fabricated by casting acrylic between two precision sheet of glass.
  • Page 22: Window Specifications

    MT10 Linear Image Scan Engine, Integration Guide, V1.9 3-4. Window Specifications 3-4. Window Specifications Window Specifications for MT10 Integration Minimum Window Size Distance Tilt Angle (a) Horizontal (h) Vertical (v) Thickness (t) < 0.5mm (b) 18 mm 5.5 mm 10 mm (c) >...
  • Page 23 MT10 Linear Image Scan Engine, Integration Guide, V1.9 The window size must increase as it is moved away from MT10 and should be sized to accommodate the field of view and illumination envelopes shown below: ___________________________________________________________________________________...
  • Page 24: Window Care

    3-5. Window Care In the aspect of window, the performance of MT10 will be reduced due to any kind of scratch. Thus, reducing the damage of window, there are few things have to be noticed. 1. Avoid touching the window as much as possible.
  • Page 25: Development Kit

    DEVELOPMENT MARSON MB100 Demo Kit enables the development of products (P/N: 11A0-9801A20) and systems using the MT10 on the MS Windows OS platform. Besides the Multi I/O board , the MB100 Demo Kit provides the software and hardware (P/N: 2006-1007X00) tools required for testing the MT10 applications before integrating it into the host device.
  • Page 26: Sleep (Idle) Mode

    MT10 Linear Image Scan Engine, Integration Guide, V1.9 SLEEP IDLE MODE SLEEP IDLE MODE The Sleep (Idle) Mode is disabled by default. To enable Sleep (Idle) Mode, simply follow below instruction to configure the “Pre-Idle Time”, or the period of inactivity before MT10 enters Sleep (Idle) Mode, as appropriate.
  • Page 27: Parameter Setup

    The MT10 will return {MC11,OK} and {MC11,1,1,0} respectively as confirmation. 3. If you want above settings to be saved permanently in Flash ROM, send {MCMDWT1} to the MT10. Otherwise MT10 will be reset to default after wake up from sleep. Notes: Curly braces “{ }”...
  • Page 28: Version History

    MT10 Linear Image Scan Engine, Integration Guide, V1.9 VERSION HISTORY VERSION HISTORY Rev. Date Description Issued Checked 2016.05.09 Preliminary Draft Release Shaw 2016.05.11 Revised D.O.F Shaw Revised Electric & Flex 2016.07.06 Shaw Cable Specification Revised Sleep Mode 2016.10.31 Shaw command in Chapter 6 Deleted Red Cell-Cast 2017.06.21...
