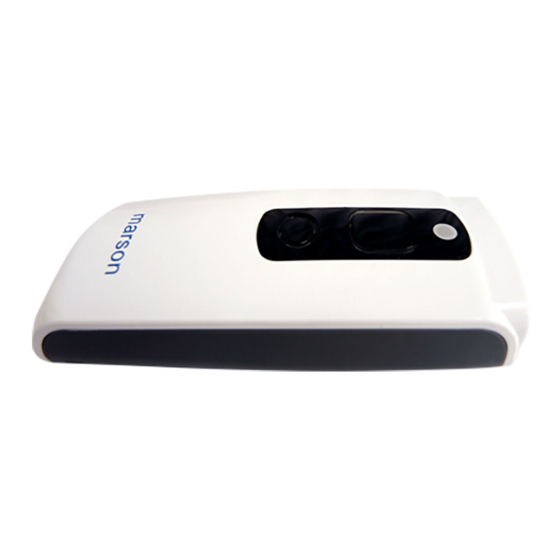

- Page 1 2D Wireless Barcode Scanner Quick Guide 2D Wireless Barcode Scanner Quick Guide (Rev1) P/N: 8013-0056000...
- Page 2 FCC WARNING STATEMENT WARNING AND CAUTION This device complies with Part 15 of FCC Rules. Operation is Subject to following two 1. Take any metals into contact with the terminals in connectors. conditions: 2. Use the scanner where any inflammable gases. (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that cause If following condition occur, immediately power off the host computer,...
-
Page 3: Specifications
OUT OF THE BOX INTRODUCTION Micro USB port Trigger Button (w/ Protective Cover) LED Indicator (1) iOS Hotkey Button (2) Delete Button Exit Window 2D Wireless SPECIFICATIONS Barcode Reader Quick Guide Light source 625nm red LED Scan rate 60 frames/sec Sensor 752 x 480 CMOS sensor Resolution... -
Page 4: Getting Started
BEEPER INDICATION GETTING STARTED Single long beep Power up Single beep Good read Single short beep The scanner reads a Code39 of ASCII in configuration procedure Two beeps i. Wireless connection ii. The scanner successfully reads a configuration barcode ... - Page 5 INTERFACE INTERFACE There are 5 interfaces for data transmission/collection: . E043$ *.E043$* BT HID 1. BT HID - Emulates a Bluetooth HID keyboard that transmits each barcode data to the host after decode. (See page 9) 2. BT SPP - Emulates a Bluetooth SPP device that transmits .
-
Page 6: Getting Connected
GETTING CONNECTED PINCODE SETUP There are two modes of wireless communication: . E043$ STEP 1 . E032$ [ Recommanded ] *.E043$* *.E032$* BT mode - HID Pincode Start 1. Press the trigger for 1 second to activate the scanner. 2. Scan [DISCONNECT] STEP 2 3. -
Page 7: Numeric Bar Codes
NUMERIC BARCODES *.31* *.36* *.32* *.37* *.33* *.38* *.34* *.39* *.35* *.30* - 11 - - 12 -... - Page 8 SMARTPHONE/TABLET CONNECTION SMARTPHONE/TABLET TOUCH KEYBOARD Getting Connected - iOS & Android Touch Keyboard - iOS iOS Hotkey Button 1. Press the trigger for 1 second to power up the scanner. 2. Scan below configuration barcode to clear last pairing record. .
- Page 9 POWER OFF TIMEOUT BINARY CHECK CHARACTER The timeout of inactivity before auto power-off. . E029$ Variable Timeout *.e029$* ENABLE . B030$ *.B030$* . E030$ SET MINUTE *.e030$* (Range: 00 ~ 60) DISABLE . B029$ *.B029$* SET SECOND Once enabled, a checksum will be added to the end of each data to conduct Xor calculation.
- Page 10 GENERAL SETTINGS READING MODE . A001$ . F002$ TRIGGER DEFAULT . P023$ . F005$ CONTINUOUS ABORT . A007$ . F006$ CHECK *.F006$* CONTINUOUS AUTO OFF VERSION BEEPER VIBRATOR . F012$ . D035$ *.D035$* VIBRATOR OFF BEEP OFF . F018$ . D034$ *.D034$* BEEP ON VIBRATOR ON...
- Page 11 KEYBOARD LAYOUT . C009$ . C010$ JAPAN ENGLISH (USA) (106 key) . C018$ . C025$ ENGLISH CANADIAN (UK) (FRENCH) . C034$ . C012$ CANADIAN FRENCH (TRADITIONAL) . C029$ . C011$ GERMAN NORWEGIAN . C026$ . C014$ ITALIAN SWEDISH . C031$ .
- Page 12 KEYBOARD LAYOUT . C017$ . C030$ CZECH BELGIAN (QWERTY) (AZERTY) . C022$ . C028$ CZECH DUTCH (QWERTZ) . C021$ . C027$ HUNGARIAN DANISH (QWERTZ) . C024$ . C032$ HUNGARIAN SLOVAK (101 KEY) . C033$ . C016$ SWISS BRAZILIAN (GERMAN) (PORTUGUESE) .
-
Page 13: Gs1 Databar Expanded
ENABLE SYMBOLOGIES . G010$ . A002$ ENABLE CODE 93 ALL CODE . N017$ . K010$ CODE 32 IATA . L010$ . L014$ UK PLESSEY TELEPEN . L001$ . N032$ GS1 DATABAR . N010$ . N001$ INDUSTRIAL GS1 DATABAR 2 OF 5 LIMITED . -
Page 14: Memory Mode
TERMINATOR MEMORY MODE . D012$ . C035$ *.c035$* Memory Mode . D011$ After scanning the above barcode, the scanner will be able to collect barcode data off-line. The barcode data will be stored in the format of: < Date >, < Time >, < Barcode Data > < CR > To retrieve stored data, please connect the scanner to the host with cable, . -
Page 15: Data Format
MEMORY MODE MEMORY MODE . R011$ . R006$ *.R006$* *.R011$* SET DATE DATA FORMAT The default Data Format is <Date>, <Time>, <Barcode Data> Example: To set Date to 2014-08-01 (Year-Month-Day): below are the codes for each item: 1. Scan [Set Date] 2. -
Page 16: Date Format
MEMORY MODE MEMORY MODE . R008$ . R009$ *.R008$* *.R009$* DATE FORMAT TIME FORMAT The default Date Format is DD/MM/YYYY (Code = 09), below The default Time Format is HH:MM:SS (Code = 01), below is full list of available formats and their setup codes: are available formats and their setup codes: Code Format... - Page 17 QR Code PDF417 DataMatrix - 31 - - 32 -...
