Summary of Contents for Marson MT110

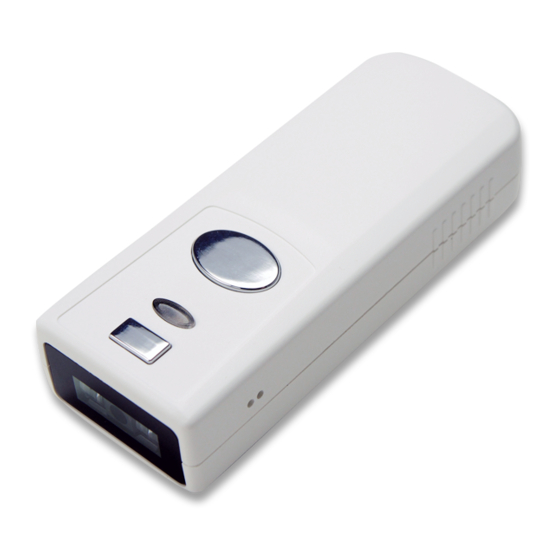

- Page 1 Mini Wireless Barcode Reader Quick Guide For full user’s manual, please contact your local distributor. Mini Wireless Barcode Reader Quick Guide (Rev4) P/N: 8012-0062000...
- Page 2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Specifications
OUT OF THE BOX INTRODUCTION Micro USB port (w/ Protective Cover) LED Indicator (1) iOS Hotkey Button (2) Delete Button Mini Wireless Barcode Reader Trigger Button Exit Window SPECIFICATIONS Sensor Linear CMOS sensor Resolution 4mil/ 0.1mm Memory 2MB (20,000 barcodes) Quick Guide &... -
Page 4: Getting Started
BEEPER INDICATION GETTING STARTED Single long beep Power up Single beep Good read Single short beep The scanner reads a Code39 of ASCII in configuration procedure Two beeps i. Wireless connection ii. The scanner successfully reads a configuration barcode ... - Page 5 INTERFACE INTERFACE There are 5 interfaces for data transmission/collection: . E043$ *.E043$* BT HID 1. BT HID - Emulates a Bluetooth HID keyboard that transmits each barcode data to the host after decode. (See page 9) 2. BT SPP - Emulates a Bluetooth SPP device that transmits .
-
Page 6: Getting Connected
GETTING CONNECTED PINCODE SETUP There are two modes of wireless communication: . E043$ STEP 1 . E032$ [ Recommended ] *.E043$* *.E032$* BT mode - HID Pincode Start 1. Press the trigger for 1 second to activate the scanner. 2. Scan [DISCONNECT] STEP 2 3. -
Page 7: Numeric Bar Codes
NUMERIC BARCODES - 11 - - 12 -... -
Page 8: Batch Mode
SMARTPHONE/TABLET CONNECTION BATCH MODE Getting Connected - iOS & Android . E054$ Simply follow instruction in [BT mode - HID] (page 9) ,in which step ENABLE 5 can be skipped since iOS & Android will not require pin-code for connection. . - Page 9 POWER OFF TIMEOUT BINARY CHECK CHARACTER The period of inactivity before auto power-off. . E029$ Variable Timeout *.e029$* ENABLE . B030$ *.B030$* . E030$ SET MINUTE *.e030$* (Range: 00 ~ 60) DISABLE . B029$ *.B029$* SET SECOND Once enabled, a checksum will be added to the end of each data to conduct Xor calculation.
- Page 10 GENERAL SETTINGS READING MODE . A001$ . F002$ TRIGGER DEFAULT . P023$ . F001$ ABORT FLASH . A007$ . F005$ CHECK CONTINUOUS VERSION BEEPER VIBRATOR . F012$ . D035$ *.D035$* VIBRATOR OFF BEEP OFF . F018$ . D034$ *.D034$* BEEP ON VIBRATOR ON - 17 - - 18 -...
- Page 11 KEYBOARD LAYOUT . C009$ . C010$ JAPAN ENGLISH (USA) (106 key) . C018$ . C025$ ENGLISH CANADIAN (UK) (FRENCH) . C034$ . C012$ CANADIAN FRENCH (TRADITIONAL) . C029$ . C011$ GERMAN NORWEGIAN . C026$ . C014$ ITALIAN SWEDISH . C031$ .
- Page 12 KEYBOARD LAYOUT . C017$ . C030$ CZECH BELGIAN (QWERTY) (AZERTY) . C022$ . C028$ CZECH DUTCH (QWERTZ) . C021$ . C027$ HUNGARIAN DANISH (QWERTZ) . C024$ . C032$ HUNGARIAN SLOVAK (101 KEY) . C033$ . C016$ SWISS BRAZILIAN (GERMAN) (PORTUGUESE) .
-
Page 13: Gs1 Databar Expanded
ENABLE SYMBOLOGIES . G010$ . A002$ ENABLE CODE 93 ALL CODE . N017$ . K010$ CODE 32 IATA . L010$ . L014$ UK PLESSEY TELEPEN . L001$ . N032$ GS1 DATABAR . N010$ . N001$ INDUSTRIAL GS1 DATABAR 2 OF 5 LIMITED . -
Page 14: Memory Mode
TERMINATOR MEMORY MODE . D012$ . C035$ *.c035$* Memory Mode . D011$ After scanning the above barcode, the scanner will be able to collect barcode data off-line. The barcode data will be stored in the format of: < Date >, < Time >, < Barcode Data > < CR > To retrieve stored data, please connect the scanner to the host with cable, . -
Page 15: Data Format
MEMORY MODE MEMORY MODE . R006$ . R011$ *.R006$* *.R011$* SET DATE DATA FORMAT The default Data Format is <Date>, <Time>, <Barcode Data> Example: To set Date to 2014-08-01 (Year-Month-Day): below are items and their setup codes: 1. Scan [Set Date] 2. -
Page 16: Date Format
MEMORY MODE MEMORY MODE . R008$ . R009$ *.R008$* *.R009$* DATE FORMAT TIME FORMAT The default Date Format is DD/MM/YYYY (Code = 09), below The default Time Format is HH:MM:SS (Code = 01), below is full list of available formats and their setup codes: are available formats and their setup codes: Code Format... - Page 17 - 31 -...
