Marson MT 1097 Quick Manual
  1. Manuals
  2. Brands
  3. Marson Manuals
  4. Barcode Reader
  5. MT 1097
  6. Quick manual

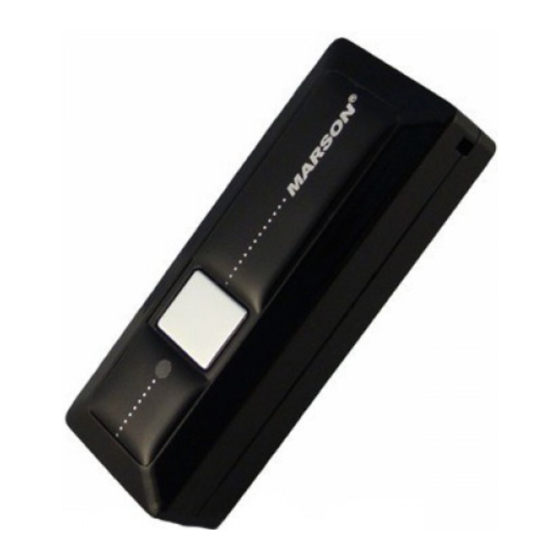

Marson MT 1097 Quick Manual

Mini wireless
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version
Full user's manual is available on
the enclosed CD.
Mini Wireless Barcode Reader Quick Guide (Rev4)
P/N: 8002-0028*06
Mini Wireless
Barcode Reader
Quick Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT 1097 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marson MT 1097

Summary of Contents for Marson MT 1097

  • Page 1 Mini Wireless Barcode Reader Quick Guide Full user’s manual is available on the enclosed CD. Mini Wireless Barcode Reader Quick Guide (Rev4) P/N: 8002-0028*06...
  • Page 2 FCC WARNING STATEMENT WARNING AND CAUTION This equipment has been tested and found to comply with the limits for a Class B digital 1. Take any metals into contact with the terminals in connectors. device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide 2.

  • Page 3: Specifications

    OUT OF THE BOX INTRODUCTION Trigger LED Indicator Mini Wireless Mini USB port Barcode Reader (w/ Protective Cover) Exit Window SPECIFICATIONS Light source 625nm visible red LED Scan rate 240 scans/sec Sensor Linear CMOS sensor Quick Guide Quick Connection Card Resolution 5mil/ 0.127mm Housing...

  • Page 4: Beeper Indication

    GETTING STARTED BEEPER INDICATION Single long beep Power up  Single beep Good read Single short beep The scanner reads a Code39 of ASCII in configuration procedure  Two beeps Wireless connection Two short beeps The scanner successfully reads  a configuration barcode Five beeps Low power...

  • Page 5: Getting Connected

    GETTING CONNECTED PINCODE SETUP There are two modes of wireless communication: . E042$ STEP 1 . E032$ *.E042$* *.E032$* BT mode - SPP Pincode Start 1. Press the trigger for 1 second to activate the scanner. 2. Scan [DISCONNECT] STEP 2 3.

  • Page 6: Numeric Bar Codes

    NUMERIC BARCODES - 9 - - 10 -...
  • Page 7 SMARTPHONE CONNECTION - iOS (Apple) SMARTPHONE CONNECTION - Android Getting Connected Getting Connected Please pair with the scanner via [BT mode - HID]. (page 7) To get connected to Android, please follow the instruction in [BT mode - SPP] (page 7) Getting Connected without Pincode *Note: .

  • Page 8: Power Off Timeout

    POWER OFF TIMEOUT LINK QUALITY The timeout before automatic power-off to save power. . B017$ . E035$ *.B017$* ENABLE 1 MIN . B018$ . E036$ *.B018$* 3 MIN DISABLE . B019$ Link Quality (enabled by default) ensures a more secure data *.B019$* transmission from the scanner to the cradle/host.
  • Page 9 GENERAL SETTINGS READING MODE . A001$ . F002$ TRIGGER DEFAULT . P023$ . F003$ RESET TOGGLE . A007$ . F001$ CHECK FLASH VERSION BEEPER . F005$ CONTINUOUS . F012$ BEEP OFF . F006$ CONTINUOUS . F018$ AUTO OFF BEEP ON - 15 - - 16 -...
  • Page 10 KEYBOARD LAYOUT . C010$ . C009$ ENGLISH JAPAN (USA) (106 key) . C018$ . C025$ ENGLISH CANADIAN (UK) (FRENCH) . C012$ . C034$ CANADIAN FRENCH (TRADITIONAL) . C029$ . C011$ GERMAN NORWEGIAN . C026$ . C014$ ITALIAN SWEDISH . C031$ .
  • Page 11 KEYBOARD LAYOUT . C030$ . C017$ CZECH BELGIAN (QWERTY) (AZERTY) . C028$ . C022$ CZECH DUTCH (QWERTZ) . C027$ . C021$ HUNGARIAN DANISH (QWERTZ) . C024$ . C032$ HUNGARIAN SLOVAK (101 KEY) . C033$ . C016$ SWISS BRAZILIAN (GERMAN) (PORTUGUESE) .

  • Page 12: Gs1 Databar Expanded

    ENABLE SYMBOLOGIES . G010$ . A002$ ENABLE CODE 93 ALL CODE . K010$ . N017$ CODE 32 IATA . L010$ . L014$ UK PLESSEY TELEPEN . L001$ . N032$ GS1 DATABAR . N001$ . N010$ INDUSTRIAL GS1 DATABAR 2 OF 5 LIMITED .

  • Page 13: Check Version

    TERMINATOR . D012$ The following pages only apply to the memory version mini wireless scanner. . D011$ The firmware version with suffix “MEM” . D013$ supports memory function. e.g. SM3-c-X.XX.BTA.MEM CR + LF The firmware version can be found either .

  • Page 14: Memory Mode

    MEMORY MODE OUTPUT DATA For memory version only For memory version only . R001$ . R003$ *.R001$* *.R003$* OUTPUT DATA ENABLE MEMORY . R002$ You may output data ONLY when memory is enabled (page 15). *.R002$* Data Output Method DISABLE MEMORY .

  • Page 15: Data Format

    DATA FORMAT DATE & TIME SETUP For memory version only For memory version only . R011$ . R006$ *.R011$* *.R006$* SET DATE DATA FORMAT The default Data Format is <Item No.>, <Date>, <Time>, <Barcode Data> Example: To set Date to 2012-08-01 (Year-Month-Day): below are items and their setup codes: 1.

  • Page 16: Date Format

    DATE FORMAT TIME FORMAT For memory version only For memory version only . R008$ . R009$ *.R008$* *.R009$* DATE FORMAT TIME FORMAT The default Date Format is DD/MM/YYYY (Code = 09), below The default Time Format is HH:MM:SS (Code = 01), below is full list of available formats and their setup codes: are available formats and their setup codes: Code...
