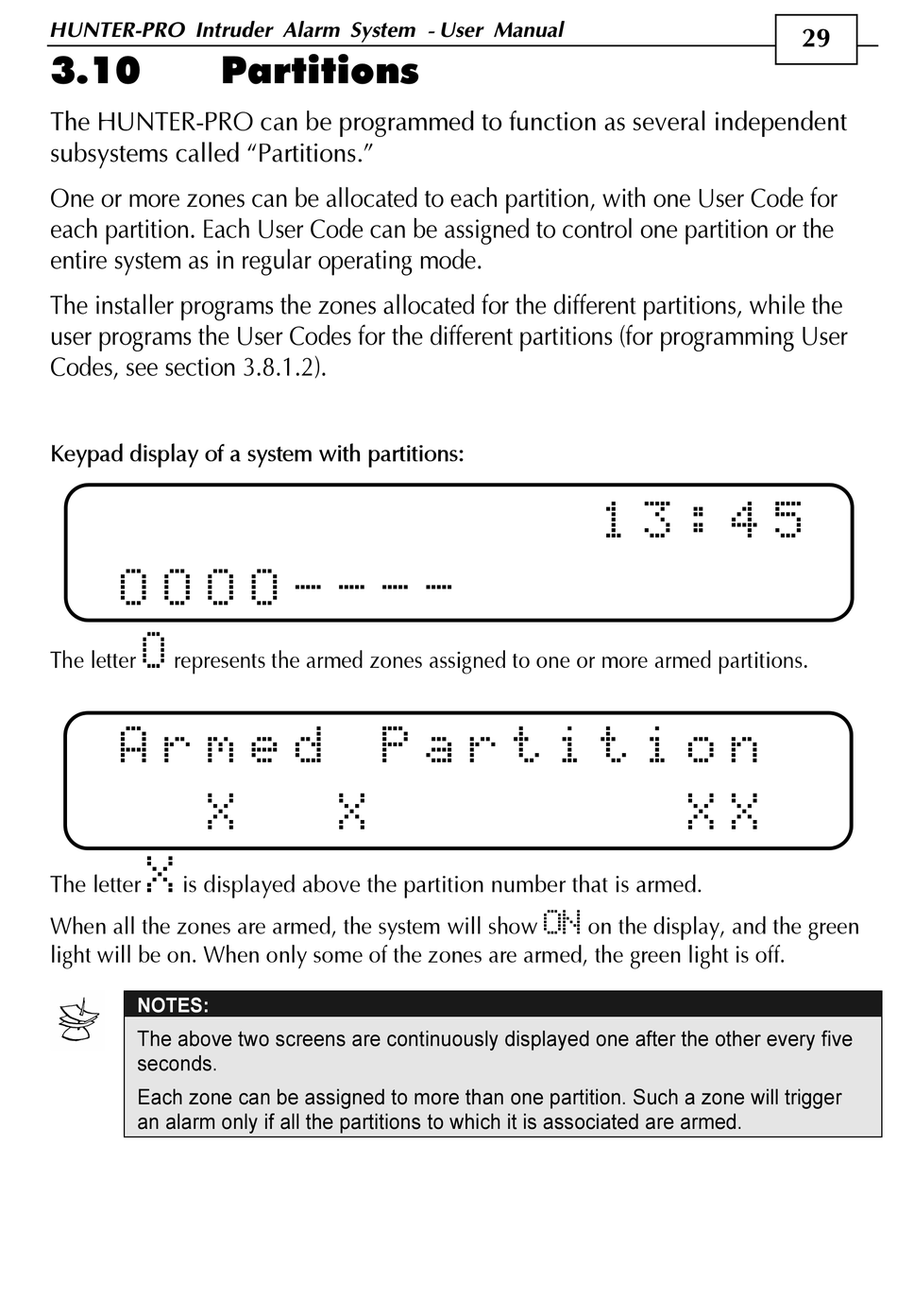

HUNTER-PRO Intruder Alarm System - User Manual
3.10
The HUNTER-PRO can be programmed to function as several independent
subsystems called "Partitions."
One or more zones can be allocated to each partition, with one User Code for
each partition. Each User Code can be assigned to control one partition or the
entire system as in regular operating mode.
The installer programs the zones allocated for the different partitions, while the
user programs the User Codes for the different partitions (for programming User
Codes, see section 3.8.1.2).
Keypad display of a system with partitions:
O O O O - - - -
O
The letter represents the armed zones assigned to one or more armed partitions.
A r m e d
X
X
The letter is displayed above the partition number that is armed.
When all the zones are armed, the system will show
light will be on. When only some of the zones are armed, the green light is off.
NOTES:
The above two screens are continuously displayed one after the other every five
seconds.
Each zone can be assigned to more than one partition. Such a zone will trigger
an alarm only if all the partitions to which it is associated are armed.

Partitions

P a r t i t i o n
X
1 3 : 4 5
X X
ON
on the display, and the green
