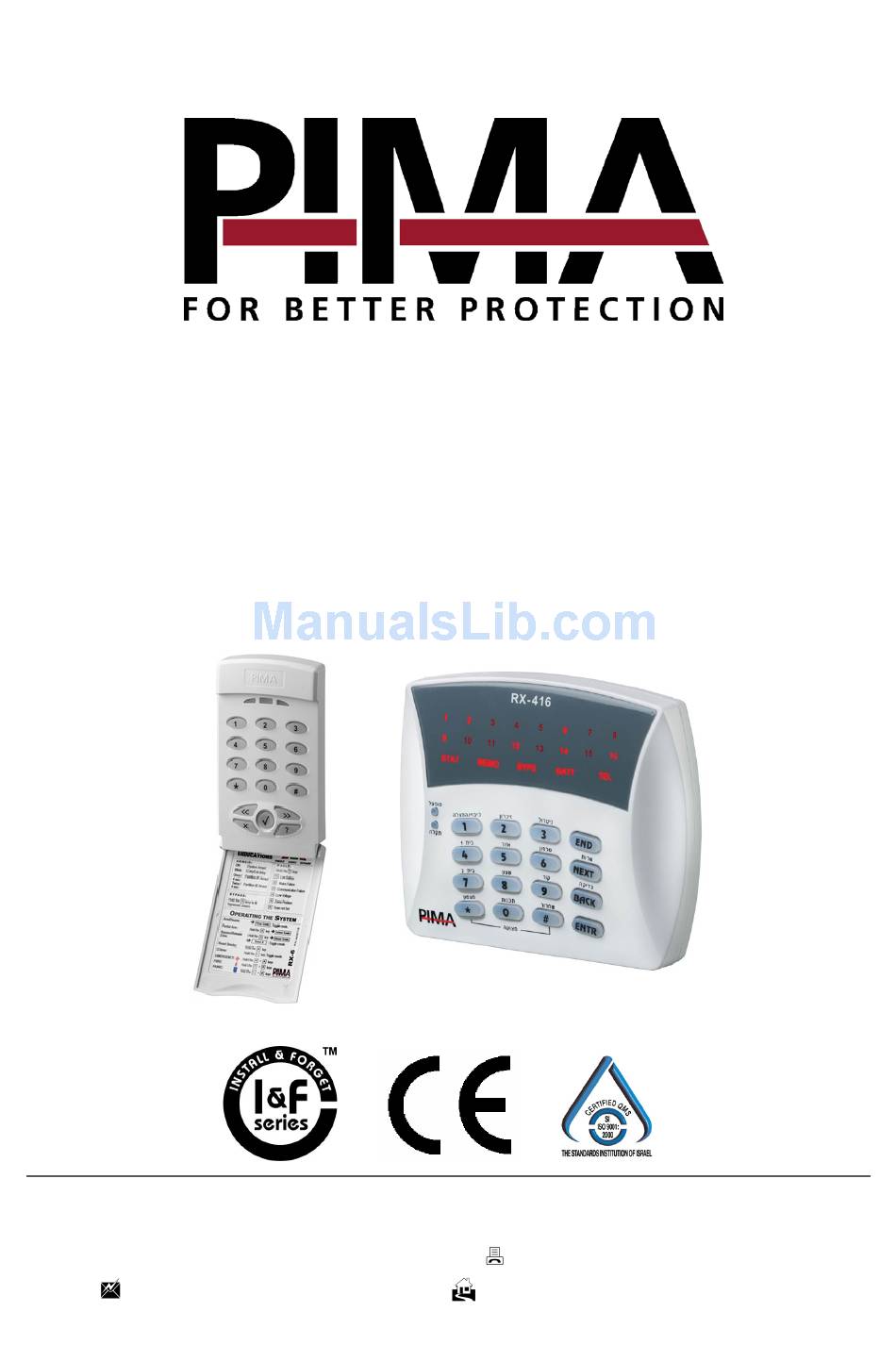

- Page 1 HUNTER-PRO 32 Ver. 3.8 Intruder Alarm System RXN-9/416 User Guide PIMA Electronic Systems Ltd. 5 Hatzoref Street, Holon 58856, Israel ℡ +972-3-5587722 +972-3-5500442 support@pima-alarms.com http://www.pima-alarms.com...
- Page 2 PIMA’s prior written consent is granted. All efforts have been made to ensure that the content of this manual is accurate. Pima retains the right to modify this manual or any part thereof, from time to time, without serving any prior notice of such modification.
- Page 3 To assure optimal safety and security, you should test the HUNTER-PRO 32 Intruder Alarm System once a week. For any further questions, please do not hesitate to contact your local PIMA Distributor or PIMA directly at: PIMA Electronic Systems Ltd.
- Page 4 16 zones. In any case, zones 17 through 32 can only be displayed on an LCD keypad. The keypads use the same bus as other PIMA keypads. Therefore, if is set with keypad ID, it can be monitored and used with partitions.
- Page 5 HUNTER-PRO 32 User Manual LED Keypads RXN-9 The RXN-9 keypad has 9 red LEDs under the 9 keys (1-9). The LEDs give two types of indications: zone status and faults (as described below). A red Fault LED, a green Armed LED and a red Bypass LED. Fault Notification: Armed Indicator: The red FAULT LED...
-
Page 6: First-Time Operation
HUNTER-PRO 32 User Manual LED Keypads ISPLAY First time operation When the keypad is connected to power, its circuitry and LEDs are tested. All LEDs will light in a changing pattern for 2-3 sec and then the keypad will start operating with the HUNTER-PRO 32 panel. -
Page 7: User Menu Display
HUNTER-PRO 32 User Manual LED Keypads The corresponding fault LED will light as described in the following table: LED No. Indication Fault Description Keypad BATTERY Low battery RXN-9/416 No voltage from mains RXN-9/416 No communication with monitoring station RXN-9/416 PHONE or, a problem with telephone line Low voltage RXN-9/416... -
Page 8: Operation
HUNTER-PRO 32 User Manual LED Keypads Programming time and date Numerical LED 8 RXN-9/416 constantly ON (After pressing NEXT) Numerical LED 9 RXN-9/416 Programming the user codes constantly ON Programming zones for Enabling/Disa Numerical LED 7 RXN-9/416 Chime feature bling the constantly ON Chime feature... -
Page 9: Arming The System
HUNTER-PRO 32 User Manual LED Keypads It is possible (programmable only by the installer) to enable a User Code entering the User Menu instead. When this option is enabled, the user code is referred to as Enabled User Code. Enabled User Code will function as the Master Code with the limitation of NEVER being able to set the Master Code and it can only access enabled functions (programmable). -
Page 10: Entering The User Menu
HUNTER-PRO 32 User Manual LED Keypads Entering the User or Short codes will arm the system immediately! Enabled User Code Arming the system to HOME Mode Arming “HOME 1”: Short Code or User Code or Enabled User Code Arming “HOME 2”: Short Code or User Code or Enabled User Code Fast Arming (without code) For quickly arming the system (possible only if enabled by installer):... -
Page 11: Displaying Bypassed Zones
HUNTER-PRO 32 User Manual LED Keypads NOTES: If the system does not turn to Disarm state, check the time frame for disarming the system (see section “Programming User Codes”). A User Code can ONLY disarm its allocated partition. Disarming the system via User Menu Master Code General Operation Modes Displaying Bypassed Zones... -
Page 12: Chime Mode
HUNTER-PRO 32 User Manual LED Keypads Chime Mode Enable : (enable all programmed chime zones) NOTE: This mode activates a buzzer in the keypad when a chime zone is triggered. This feature can be used to monitor unauthorized entry or exit in the defined zone when the system is not armed. -
Page 13: Remote Control Via Touch-Tone Phone
HUNTER-PRO 32 User Manual LED Keypads Remote Control via Touch-tone Phone The alarm system can be remote-controlled via any touch-tone telephone, including cellular phone. The system can be controlled from the moment communication is established, whether the system called the telephone, or when initiated by the user as following described. - Page 14 HUNTER-PRO 32 User Manual LED Keypads MODE B - Enhanced control The enhanced mode enables full control of all systems outputs. 6. Execute command by pressing keys combination: to activate an output; to deactivate an output. The command is followed by the output code as described in the following table.
-
Page 15: Programming The System
HUNTER-PRO 32 User Manual LED Keypads ROGRAMMING THE YSTEM Programming Master Code The default Master Code is: 5555. The Master Code can ONLY be changed with the master code. The Master Code is used for accessing memory and programming different functions as described further. -
Page 16: Setting Time And Date
HUNTER-PRO 32 User Manual LED Keypads NOTE: With RXN-9, when selecting users 1 through 8, the corresponding number (key) will blink. With RXN-416, when selecting users 1 through 8 and 10 through 16 the corresponding zone LED will blink. Setting Time and Date Time and date should be accurate because they are used in the system's memory log, Automatic Arming, and reporting to monitoring station. -
Page 17: Private Dialer Telephone Numbers
HUNTER-PRO 32 User Manual LED Keypads The system can detect movement in the protected area via its connected detectors and sensors, therefore, it can identify no-movement hence there is no one in the protected area. NOTE: The silence (no movement) timer will start counting down ONLY if no immediate zones are opened and after the last zone to be closed is the exit delay zone (i.e. -
Page 18: Programming Telephone Numbers
HUNTER-PRO 32 User Manual LED Keypads after a minute of not receiving any command (Remote Control via Touch-tone Phone on page 13). NOTE: In case a Voice-Unit with a recorded message is connected to the system, once the call is picked-up, the system will play the recorded message and not a warning sound. -
Page 19: Smoke And Fire Detectors Alarm
HUNTER-PRO 32 User Manual LED Keypads door/window is opened. This feature is especially useful when there are small children in the house, or in shops. NOTE: The “Chime” feature is only enabled when system is disarmed. Programming Chime Zone Master Code Zone number (LED 7 constantly ON, LED 1 blinks) to confirm or... - Page 20 HUNTER-PRO 32 User Manual LED Keypads ONES ESCRIPTION Zone # Partition # Zone Name/Description...
