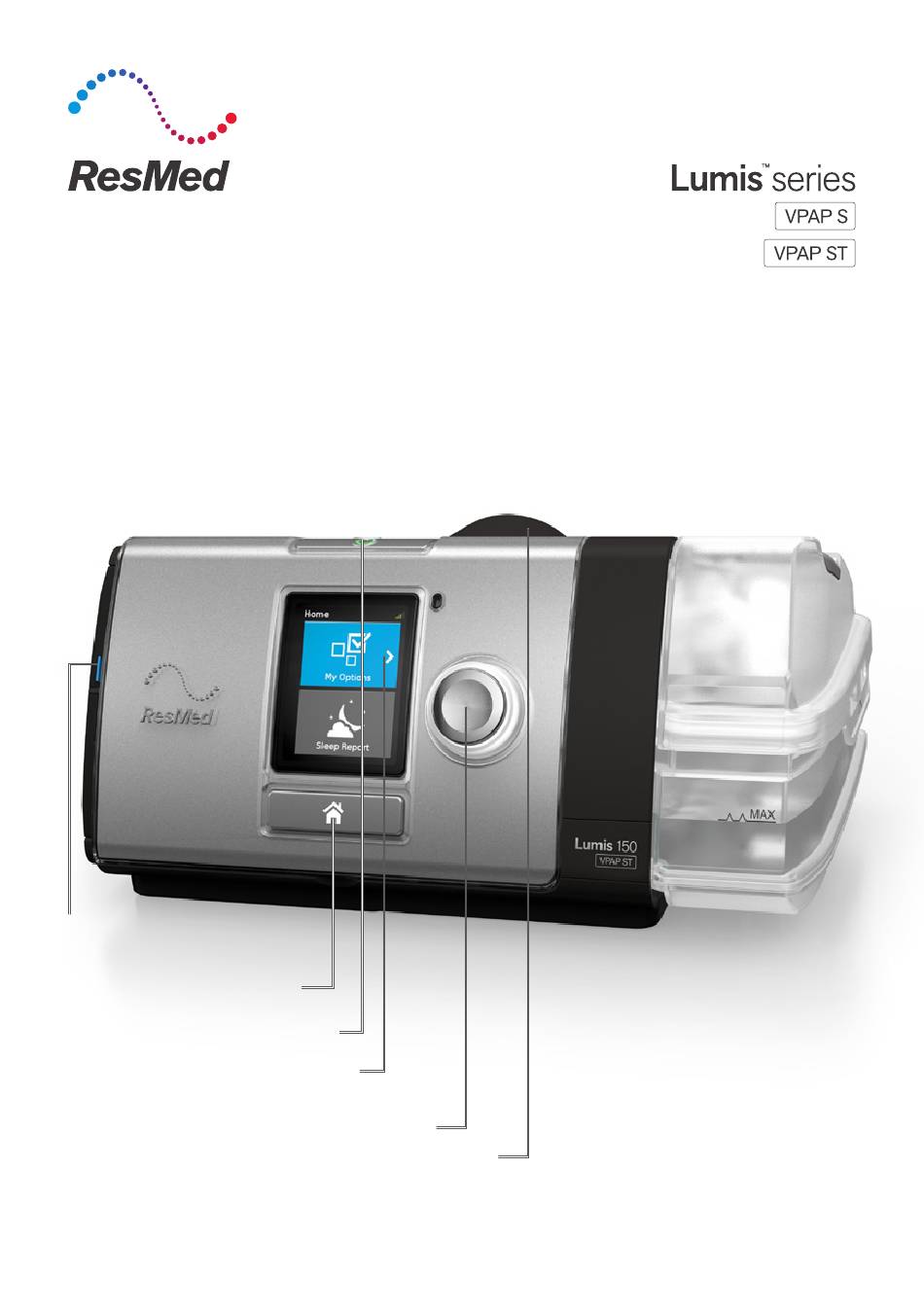

SD card cover to access the SD card Home button for returning to the Home screen at any time Start/Stop button for starting therapy LCD screen which displays therapy parameters and data Dial for navigating and changing options Air outlet for connecting the air tubing Clinical quick start guide English...
Page 2
Accessing the Clinical Menu To access the Clinical Menu, press and hold the dial and the Home button for three seconds. The Home screen is displayed with an unlock icon in the top right corner of the screen. The Home screen of the Clinical Menu consists of two areas: •...
Page 3
Starting Therapy To start therapy, press the Start/Stop button. Once therapy begins, the Monitoring screen is displayed. This screen may differ according to the configuration of the device and displays: • Current treatment pressures - The pressure bar shows the inspiratory and expiratory pressures in green.
Page 4
ResMed (UK) Ltd 96 Jubilee Ave Milton Park Abingdon Oxfordshire OX14 4RW UK See www.resmed.com for other ResMed locations worldwide. For patent information, see www.resmed.com/ip. Lumis, ClimateLine and HumidAir are trademarks of ResMed Ltd. ClimateLine is registered in U.S. Patent and Trademark Office.
