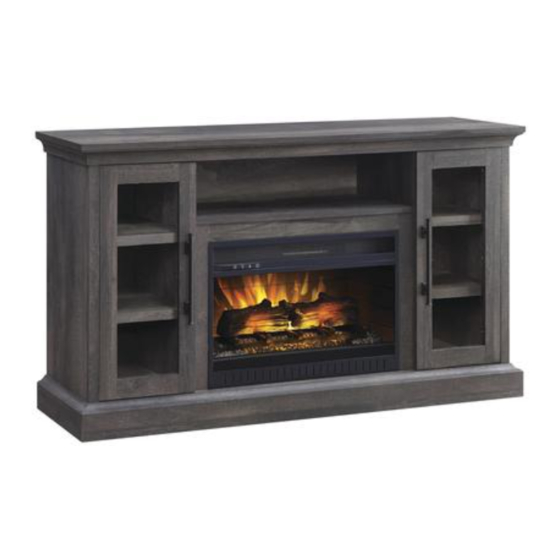

Millstead 60" Fireplace Console
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
Or visit our web site 24 hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
Model # WSF60MS26GAO
ADULT ASSEMBLY REQUIRED
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
www.whalenfurniture.com
Or e-mail your request to parts@whalenfurniture.com
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2020-07-20
# WSF60MS26WW
1-866-942-5362
Rev. 0001-B
LOT NUMBER:
DATE PURCHASED: /
/
Advertisement
Related Manuals for Whalen Millstead WSF60MS26GAO
Summary of Contents for Whalen Millstead WSF60MS26GAO
- Page 1 LOT NUMBER: DATE PURCHASED: / Millstead 60” Fireplace Console Model # WSF60MS26GAO # WSF60MS26WW ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our toll-free customer service number and have your instructions and parts list ready to provide the model name, part name or factory number: 1-866-942-5362 Pacific Standard Time: 8:30 a.m.
- Page 2 IMPORTANT Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-abrasive surface. You will need the parts identified on page 3 and 4 of this instruction manuals. NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH THE DOWELS. EXCESS GLUE CAN BE WIPED OFF WITH A DAMP CLOTH.
-
Page 3: Parts And Hardware List
Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Top Panel (Qty. 1) B- Fixed Shelf (Qty. 1) C- Bottom Panel (Qty. 1) D- Left Side Panel (Qty. 1) E- Right Side Panel (Qty. - Page 4 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. V- Wood Door Insert (Qty. 2) Fireplace Insert (Qty. 1) Remote Control with Battery (Qty. 1) (Pre-attached) (1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel...
- Page 5 Assembly Instructions 1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor or the empty carton to avoid any scratch. 2. Securely screw the Cam Bolts (2) into the designated small holes on the Fixed Shelf (B), Bottom Panel (C) and Partition Panels (F and G) with a Phillips screwdriver.
- Page 6 Assembly Instructions 4. Align and attach the Middle Crossbar (H) to the Fixed Shelf (B) by engaging three Cam Locks (1) (Refer to page 2 on Cam Lock system operation supplement). 5. Align and attach the Middle Left Stile (I) to the Left Partition Panel (F) by engaging two Cam Locks (1).
- Page 7 Assembly Instructions 6. Align and attach the Middle Right Stile (J) to the Right Partition Panel (G) by engaging two Cam Locks (1). 7. Glue the Wood Dowels (3) into the inner holes of Fixed Shelf (B), Bottom Panel (C), Partition Panels (F and G), Base Front Stretcher (L) and Base Rear Stretcher (M) as shown.
- Page 8 Assembly Instructions 8. Attach the Fixed Shelf (B) beween the Partition Panels (F and G) by engaging four Cam Locks (1). 9. Align and attach the Base Front Stretcher (L) to the Bottom Panel (C) with four Cam Locks (1).
- Page 9 Assembly Instructions 10. Align and attach the Base Rear Stretcher (M) to the Bottom Panel (C) with three Cam Locks (1). 11. Using the wood dowels as a guide, firmly press the assembled Partition Panels (F and G) to the Bottom Panel (C) and fasten them in place with four 50 mm Screws (8).
- Page 10 Assembly Instructions 12. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A) and Side Panels (D and E) with a Phillips screwdriver. 13. Glue the Wood Dowels (3) into the inner holes on both Side Panels (D and E) and the Base Front Molding (K) as shown.
- Page 11 Assembly Instructions D/ E 14. Align the large holes on the Left Side Panel (D) with the inserted Wood Dowels (3) on the assembled base. Firmly press them together and fasten it in place by engaging three Cam Locks (1). 15.
- Page 12 Assembly Instructions 17. Attach the Base Front Molding (K) to the Base Front Stretcher (L) by using eight 38 mm Screws (6). 18. Place the Top Panel (A) onto the inserted Wood Dowels (3) properly and fasten it in place by engaging eight Cam Locks (1).
- Page 13 Assembly Instructions 19. Ask for assistance to flip the unit around at its front edge as shown. 20. With the pilot holes as a guide, fasten the Middle Crossbar (H) to the Middle Stiles (I and J) by attaching two Mending Plates (9) at the joints, using two 12 mm Screws (4) per plate. 21.
- Page 14 Assembly Instructions 24. Ask for assistance to lift the assembly unit upright and position it near the final location. 25. Insert eight Shelf Supports (13) into the holes at the desired height inside each side compartment. Make sure you place four shelf supports in the same level, so the shelf is not tilted. Tilt and rest the Adjustable Shelves (N) onto the Shelf Supports (13) and secure them into place with 12 mm Flat Head Screws (4).
- Page 15 Assembly Instructions 29. Open the doors and attach one Handle (11) to the front side of each Door (P) with two 22 mm Bolts (12). Wood Panel Glass Panel Mesh Trim NOTE: The doors are shipped with the Wood Door Insert Panels (V). You can keep the doors as they are or interchange with the Door Glass Insert (T) or Mesh Trims (U) depending on your configuration.
- Page 16 Assembly Instructions 31. Plug Cam Lock Covers (14) onto the visible Cams Locks to conceal the cams. 32. Stick the Rubber Bumpers (15) on the outer corners of the Doors (P) where they meet the partition panels. F /G 33. Lift the fireplace insert carefully into the back of the assembled mantel and center it in the opening. drag the insert across the Bottom Panel (C) as it may scratch the unit.
- Page 17 Assembly Instructions Tools required (not provided): Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8” drill bit. 36. Ask for assistance to position the assemble fireplace at the desired location against a wall. If necessary, adjust the pre-attached Floor Levelers at the bottom of the Base Front Molding (K) to correct the tilting and level the doors.
-
Page 18: Care And Maintenance
Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area. Using solvents of any kind on your furniture may damage the finish. ... -
Page 19: Quality Guarantee
Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
