INSTALLATION AND OPERATION INSTRUCTIONS
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO
NOTE: This product is designed for use with an attended hearth appliance or fire feature. Adults must be present when
the Control System is operating. DO NOT program or thermostatically set this Control to operate a hearth appliance or fire
feature when Adults are not physically present. Furthermore, DO NOT leave the hearth appliance or fire feature burning
unattended; it may cause damage or serious injury. If an Adult is going to be away from the hearth appliance or fire
feature for any length of time, then the handheld/wall mount, receiver/control module and application should be in the
"OFF" position.
INTRODUCTION

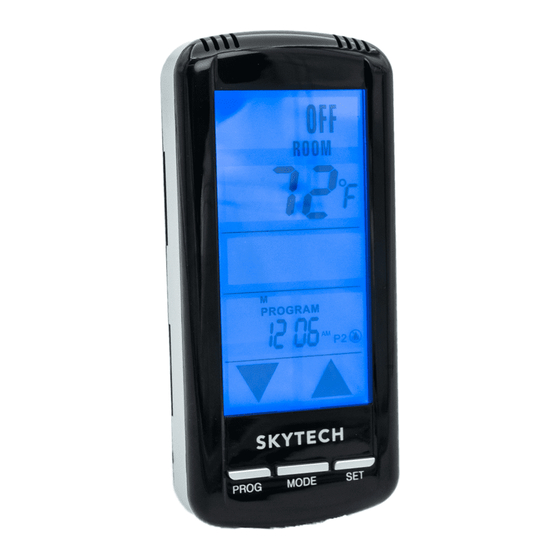

his remote control system was developed to provide a safe, reliable, and user-friendly remote control system for gas
T
heating appliances. The system can be operated thermostatically, manually or with the built-in factory program inside the
transmitter. The built-in program has two segments, a weekdays and a weekend segment. The factory presets are time
periods for each day. SEE PROGRAM SEQUENCE BELOW. Custom programming may be achieved after the initial
setup has been performed.
This system operates on radio frequencies (RF) within a 20-foot range using non-directional signals. The system
operates one of 1,048,576 security codes that are programmed into the transmitter at the factory; the remote receiver's
code must be matched to that of the transmitter prior to initial use.
Weekdays - Mon. Tues. Wed.Thurs. Fri.
Program 1 (P1)
Weekends - Sat. Sun.
Program 1 (P1)
Table 1 Factory program.
Skytech: 5301P
Model: 5301P
NOT ATTEMPT TO INSTALL OR OPERATE
Built-in Factory Programs
MORN
5:00AM
9:00AM
72°
MORN
6:00AM
10:00AM
72°
Program 2 (P2) 4:00PM
Program 2 (P2) 5:00PM
DAY
10:00PM
72°
DAY
10:00PM
72°
REV. 5-20-22
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Skytech 5301P
Summary of Contents for Skytech 5301P
- Page 1 Model: 5301P INSTALLATION AND OPERATION INSTRUCTIONS IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT ATTEMPT TO INSTALL OR OPERATE NOTE: This product is designed for use with an attended hearth appliance or fire feature. Adults must be present when the Control System is operating.
- Page 2 10. PROGRAM ON/OFF – Indicates when Program 1 (P1) is on or off, and indicates when Program 2 (P2) is on or off. 11. DAY of WEEK - Indicates current day of week, or program segment when editing Fig. 3 LCD display. program settings. Skytech: 5301P REV. 5-20-22 Page 2...
- Page 3 One of the days of the week will be flashing (above the clock). Select the correct day by pressing the UP and DOWN touch buttons, then press SET. Your time will automatically be accepted. (Fig. #8) Fig. 5 Hours. Fig. 6 Minutes. Fig. 7 AM/PM. Fig. 8 Days of week. Skytech: 5301P REV. 5-20-22 Page 3...
-
Page 4: Installation
Cover Plate (Rear View) Remote Receiver Receiver Slide Fig. 9 Mounting receiver to cover plate. Button Cover Plate Plastic Switch Box Fig. 10 Installing receiver into junction box. Skytech: 5301P REV. 5-20-22 Page 4... - Page 5 Slide the button to REMOTE, then press the ON button on the transmitter to change the system to ON. The spark electrode should begin sparking to ignite the pilot. After the pilot is lit, the main gas valve should open and the main gas flame should ignite. Skytech: 5301P REV. 5-20-22 Page 5...
-
Page 6: Learning Transmitter To Receiver
THERMO UPDATING FEATURE - TRANSMITTER When in thermo mode, the transmitter reads the ROOM temperature every 2 minutes, checks the room temperature against the SET temperature then sends a signal to the receiver. Fig. 15 Thermo mode. Skytech: 5301P REV. 5-20-22 Page 6... -
Page 7: Program Function
ON will be flashing. Repeat the above steps to set the ON and OFF times and set temperatures for weekdays. Fig. 21 Program OFF at 10:00PM. Fig. 22 Weekday segments (Mon-Fri). (See Fig. 22) Skytech: 5301P REV. 5-20-22 Page 7... - Page 8 • When the Transmitter is in “LOCK-OUT” mode, programmed functions will go on without interruption; Only manual functions are prevented. Fig. 25 Childproof lock-out. Skytech: 5301P REV. 5-20-22 Page 8...
-
Page 9: Wall Mount
TRANSMITTER TO RECEIVER section). FCC REQUIREMENTS NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODI- FICATIONS TO THE EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT Skytech: 5301P REV. 5-20-22 Page 9... - Page 10 System by the Customer. System Sold As Is. Subject to this Warranty and any applicable state law, each System is sold by Skytech to a Customer on an “as is” basis. In addition, each System and Skytech’s obligations are and remain subject to all additional disclaimers, limitations, reservations of rights, exclusions, and qualifications set forth on Skytech’s website, www.skytechpg.com, all of which are considered part of the Warranty and are...
- Page 11 Print information below and return form to: Skytech Products Group, 9230 Conservation Way, Fort Wayne, IN. 46809; Attn. Warranty Dept Phone: (855) 498-8224 Warranty Information Purchase Date: _____________ Model: _______________ Date Code: _________ 21’ 1 2 3 4 5 6 Note: Date code may be in one of two formats - (1) Printed 4-digit number: YYMM format.
