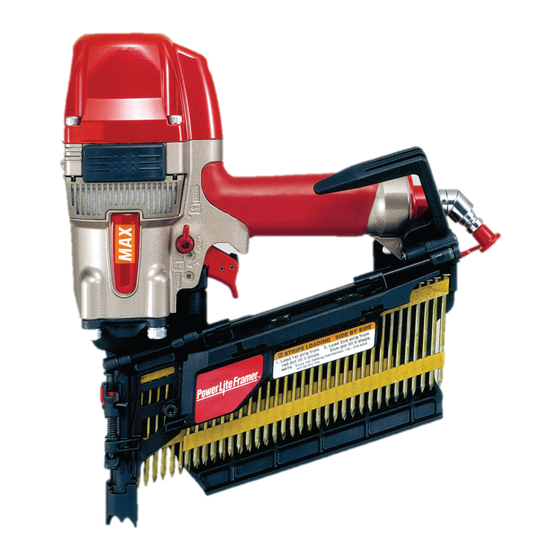

- Page 1 HS90A HIGH PRESSURE FRAMING TOOL OPERATING and MAINTENANCE MANUAL WARNING: BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.
- Page 2 INDEX ENGLISH Page 3 to 15 Page DEFINITIONS OF SIGNAL WORDS WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
- Page 3 ENGLISH HS90A HIGH PRESSURE FRAMING TOOL INDEX 1. SAFETY INSTRUCTIONS 2. SPECIFICATIONS & TECHNICAL DATA 3. AIR SUPPLY AND CONNECTIONS 4. INSTRUCTIONS FOR OPERATION 5. MAINTAIN FOR PERFORMANCE 6. STORING 7. TROUBLESHOOTING/REPAIRS OPERATING and MAINTENANCE MANUAL WARNING: BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING AND INSTRUCTIONS.
-
Page 4: Safety Instructions
In order to improve its performance, it has set its working pressure higher than the conventional nailers. To use the tool, you always need the special air compressor and air hose (MAX PowerLite Compressor and MAX PowerLite Hose). Use of high-pressure gas (for example, oxygen, acetylene, etc.) causes abnormal combustion, possibly resulting in explosion. - Page 5 INSPECT SCREW TIGHTNESS Loose or improperly installed screws or bolts cause accidents and tool damage when the tool is put into operation. Inspect to confirm that all screws and bolts are tight and properly installed prior to operating the tool. DO NOT TOUCH THE TRIGGER UNLESS YOU INTEND TO DRIVE A FASTENER Whenever the air supply is connected to the tool, never touch the trigger unless you intend to drive a fastener into the work.
- Page 6 • Keep the tool in a dry place out of reach of children when not in use. • Do not use the tool without Safety Warning label. • Do not modify the tool from original design or function without approval by MAX CO., LTD.
-
Page 7: Specifications And Technical Data
Trigger Lock Dial !0 Plug !1 Discharge Outlet !2 Hook 2. TOOL SPECIFICATIONS 3. FASTENER SPECIFICATIONS PRODUCT NO. HS90A MAX KCM PAPER TAPE COLLATED NAIL LENGTH HEIGHT 12-3/4˝ (325 mm) 2-3/8˝ to 3-1/2˝ (60 to 90 mm) WIDTH 4-1/2˝ (114 mm) SHANK DIAMETER .113˝... -
Page 8: Air Supply And Connections
To use the tool, you always need the special air compressor and Air hose air hose (MAX PowerLite Compressor and MAX PowerLite Hose). Use of high- pressure gas (for example, oxygen, acetylene, etc.) causes abnormal combustion, possibly resulting in explosion. Use only the special air compressor and air hose. -
Page 9: Instructions For Operation
4. INSTRUCTIONS FOR OPERATION Read section titled “SAFETY INSTRUCTIONS”. BEFORE OPERATION q Wear Safety Glasses or Goggles. w Do not connect the air supply. e Inspect screw tightness. r Check operation of the contact arm & trigger if moving smoothly. t Connect the air supply. -
Page 10: Driving Fasteners
REMOVING THE NAIL q Push up the door latch to open the door. Door latch w Remove the nail. Note that when this is done, the feed pawl moves. e Close the door. Nail Feed pawl DRIVING FASTENERS NOTE: This tool is shipped with SINGLE ACTUATION selected. WARNING: To avoid double firing or accidental firing, pull the trigger rapidly and firmly. - Page 11 The use of Switching Lever other than the designated original one will cause serious accidents. (e.g., firing fasteners just pulling trigger, etc.) Color Shape (1/1 scale) Tool STEEL BLACKENING HS90A SINTERING STEEL NF550 GREY METALLIC SN883 with thin trigger SN883 with thick trigger...
-
Page 12: Model Identification
CONTACT TRIP MODEL with ANTI-DOUBLE FIRE MECHANISM The anti-double fire mechanism (US patent 5597106, UK patent 2286790) is installed on this tool. The common operating procedure on “Contact Trip” tools is for the operator to contact the work to actuate the trip mechanism while keeping the trigger pulled, thus driving a fastener each time the work is contacted. - Page 13 SEQUENTIAL TRIP The Sequential Trip requires the operator to hold the tool against the work before pulling the trigger. This makes accurate fastener placement easier, for instance on framing, toe nailing and crating applications. The Sequential Trip allows exact fastener location without the possibility of driving a second fastener on recoil, as described under “Contact Trip”.
- Page 14 DRIVING DEPTH ADJUSTMENT DIAL Adjustment WARNING: dial ALWAYS disconnect air supply before adjustment dial. q With air pressure set, drive nails into a representative material sample to determine if adjustment is necessary. Deeper Shallow w If adjustment is required, disconnect air supply. e Refer to the mark on the contact arm for direction to turn the adjustment dial.
-
Page 15: Maintain For Performance
All quality tools will eventually require servicing or replacement of parts because of wear from the normal use. 7. TROUBLE SHOOTING/REPAIRS The troubleshooting and/or repairs shall be carried out only by the MAX CO., LTD.authorised distributors or by other specialists. Supplement to the operating instruction According to the European Norm EN 792-13 the regulation is valid from 01.01.2001 that all fastener... - Page 16 Recycled paper is used for this manual and its recyclable. • The content of this manual might be changed without notice for improvement. 6-6 NIHONBASHI-HAKOZAKI-CHO, CHUO-KU, TOKYO, JAPAN Tel: (03) 3669-8131 Telefax: (03) 3669-7104 www.max-ltd.co.jp/int/ (GLOBAL Site) www.max-europe.com (EUROPE Site) 071205-00/00 PRINTED IN JAPAN...
