Max HN65 Operating And Maintenance Manual

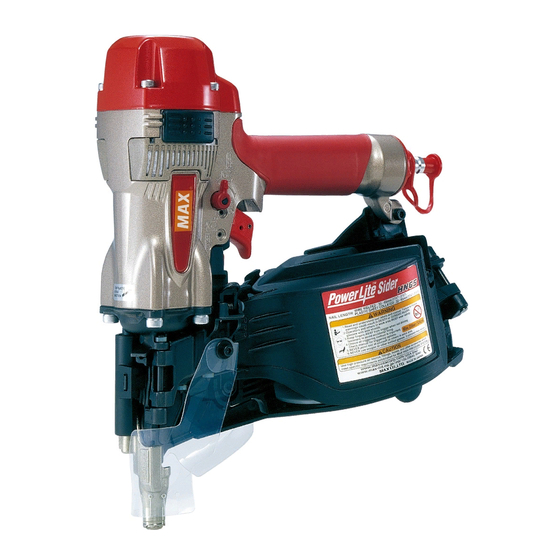

High pressure coil nailer
Hide thumbs Also See for HN65:

Advertisement

Quick Links

Download this manual
HN65
HIGH PRESSURE COIL NAILER
OPERATING and MAINTENANCE MANUAL
.
BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING
AND INSTRUCTIONS.
KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HN65 and is the answer not in the manual?

Questions and answers

Related Manuals for Max HN65

Summary of Contents for Max HN65

  • Page 1 HN65 HIGH PRESSURE COIL NAILER OPERATING and MAINTENANCE MANUAL BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.
  • Page 2 INDEX ENGLISH Page 3 to 15 Page DEFINITIONS OF SIGNAL WORDS Indicates a potentially hazardous situation which, if not avoided, WARNING: could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, CAUTION: may result in minor or moderate injury. Emphasizes essential information.

  • Page 3: Table Of Contents

    ENGLISH HN65 HIGH PRESSURE COIL NAILER INDEX 1. SAFETY INSTRUCTIONS......4 2. SPECIFICATIONS & TECHNICAL DATA........7 3. AIR SUPPLY AND CONNECTIONS .... 9 4. INSTRUCTIONS FOR OPERATION ..10 5. MAINTAIN FOR PERFORMANCE..... 15 6. STORING ........... 15 7. TROUBLESHOOTING/REPAIRS....15...

  • Page 4: Safety Instructions

    1. SAFETY INSTRUCTIONS TO AVOID SEVERE PERSONAL INJURY OR PROPERTY DAMAGE BEFORE USING THE TOOL, READ CAREFULLY AND UNDERSTAND THE FOLLOWING “SAFETY INSTRUCTIONS”. FAILURE TO FOLLOW WARNINGS COULD RESULT IN DEATH OR SERIOUS INJURY. PRECAUTIONS ON USING THE TOOL WEAR SAFETY GLASSES OR GOGGLES Danger to the eyes always exists due to the possibility of dust being blown up by the exhausted air or of a fastener flying up due to the improper handling of the tool.
  • Page 5 INSPECT SCREW TIGHTNESS Loose or improperly installed screws or bolts cause accidents and tool damage when the tool is put into operation. Inspect to confirm that all screws and bolts are tight and properly installed prior to operating the tool. DO NOT TOUCH THE TRIGGER UNLESS YOU INTEND TO DRIVE A FASTENER Whenever the air supply is connected to the tool, never touch the trigger unless you intend to drive a fastener into the work.
  • Page 6 ・Keep the tool in a dry place out of reach of children when not in use. ・Do not use the tool without Safety Warning label. ・Do not modify the tool from original design or function without approval by MAX CO., LTD.

  • Page 7: Specifications

    ③ Contact Arm ④ Nose ⑤ Magazine ⑥ Trigger ⑦ Grip ⑧ Exhaust Cover ⑨ Trigger Lock Dial 2. TOOL SPECIFICATIONS PRODUCT NO. HN65 11-7/8” (301 mm) HEIGHT 5” (129 mm) WIDTH 10-5/8” (270 mm) LENGTH 4.3 lbs. (1.9 kg) WEIGHT RECOMMENDED 170 to 320 p.s.i.
  • Page 8 4. TECHNICAL DATA ① NOISE A-weighted single-event sound power level ------ LWA, 1s, d 93.8 dB A-weighted single-event emission sound pressure level at work station ------ LpA, 1s, d 85.6 dB These values are determined and documented in accordance to EN12549 : 1999. ②...

  • Page 9: Air Supply And Connections

    To use the tool, you always need the special air compressor and Air hose air hose (MAX PowerLite Compressor and MAX PowerLite Hose). Use of high-pressure gas (for example, oxygen, acetylene, etc.) causes abnormal combustion, possibly resulting in explosion. Use only the special air compressor and air hose.

  • Page 10: Instructions For Operation

    4. INSTRUCTIONS FOR OPERATION Read section titled “SAFETY INSTRUCTIONS”. 1. BEFORE OPERATION ① Wear Safety Glasses or Goggles. ② Do not connect the air supply. ③ Inspect screw tightness. ④ Check operation of the contact arm & trigger if moving smoothly. ⑤...
  • Page 11 NAIL LOADING ① Open the Magazine: Pull up Door Latch and swing Door open. Swing Magazine Cover open. Door Latch ② Check adjustment: Magazine The Nail Support can be moved up and down to four settings. To change setting pull up on the Nail Post and twist to the correct step.
  • Page 12 TEST OPERATION ① Adjust the air pressure at 170 p.s.i. (12 bar) and connect the air supply. ② Without touching the Trigger, depress the Contact Arm against the work-piece. Pull the Trigger. (The tool must fire the fastener.) ③ With the tool off the work-piece, pull the Trigger. Then depress the Contact Arm against the work-piece.
  • Page 13 CONTACT FIRE OPERATION (CONTACT TRIP) For contact fire operation, hold the Trigger and depress the Contact Arm against the work surface. PROCEDURE ① Hold the Trigger. ② Depress the Contact Arm. SINGLE FIRE OPERATION (ANTI-DOUBLE FIRE MECHANISM AND SEQUENTIAL TRIP) For single fire operation, depress the Contact Arm against the work surface and pull the Trigger.
  • Page 14 CONTACT TIP ALWAYS disconnect air supply before attaching / detaching the contact tip. Attach the Contact Tip on the tip of Contact Arm, when driving nails to a soft material. Arm Cover The Contact Tip can be kept on the Arm Cover when not using. Contact Tip Contact Arm WHEN USING THE TOOL FOR STEEL PLATES...

  • Page 15: Maintain For Performance

    ④ All quality tools will eventually require servicing or replacement of parts because of wear from the normal use. 7. TROUBLE SHOOTING/REPAIRS The troubleshooting and/or repairs shall be carried out only by the MAX CO., LTD.authorised distributors or by other specialists.
  • Page 17 ・ The content of this manual might be changed without notice for improvement. 6-6 NIHONBASHI-HAKOZAKI-CHO, CHUO-KU, TOKYO, JAPAN Tel: (03) 3669-8131 Telefax: (03) 3669-7104 http://www.maxusacorp.com (USA Site) http://www.max-ltd.co.jp/int/ (GLOBAL Site) ★060117-00/01 PRINTED IN JAPAN...
  • Page 18 - nella chiusura di casse o gabbie - nell’ applicazione de assicurazioni per il trasporto, p.e. su veicoli e vagoni. Ergänzung zur Betriebsanleitung von MAX-Naglern Suplemento a la instrucción para la Unter der am O1 Januar 2001 in Kraft tretenden operación europäischen Norm EN 792-13 müssen...
