The Map Options menu allows you to adjust the depth range, contour interval, water level offset, and map position. Some of the menu
options in this section may be displayed in other parts of the menu system so that you can access them quickly. No matter where
you make the change, the control head will update the setting across the system.
Open the Map Options Menu
1. With a Chart View displayed on-screen, tap Chart in the status bar, or press the MENU key once.
2. Select AutoChart LIVE.
3. Select Map Options.
Adjust the Depth Range
You can adjust the range of data shown on the chart by changing the minimum range and maximum range on the display. The
range you select affects how the depth colors are displayed. For related color or shading options, see Add Settings with Chart
Options.
1. From the Map Options menu, select Min Range.
2. Press and hold the slider, or press and hold the ENTER key, to adjust the setting.
3. Select Max Range.
4. Press and hold the slider, or press and hold the ENTER key, to adjust the setting.
D
S
ISPLAY
ETTINGS
low range
high range
depth map
scale

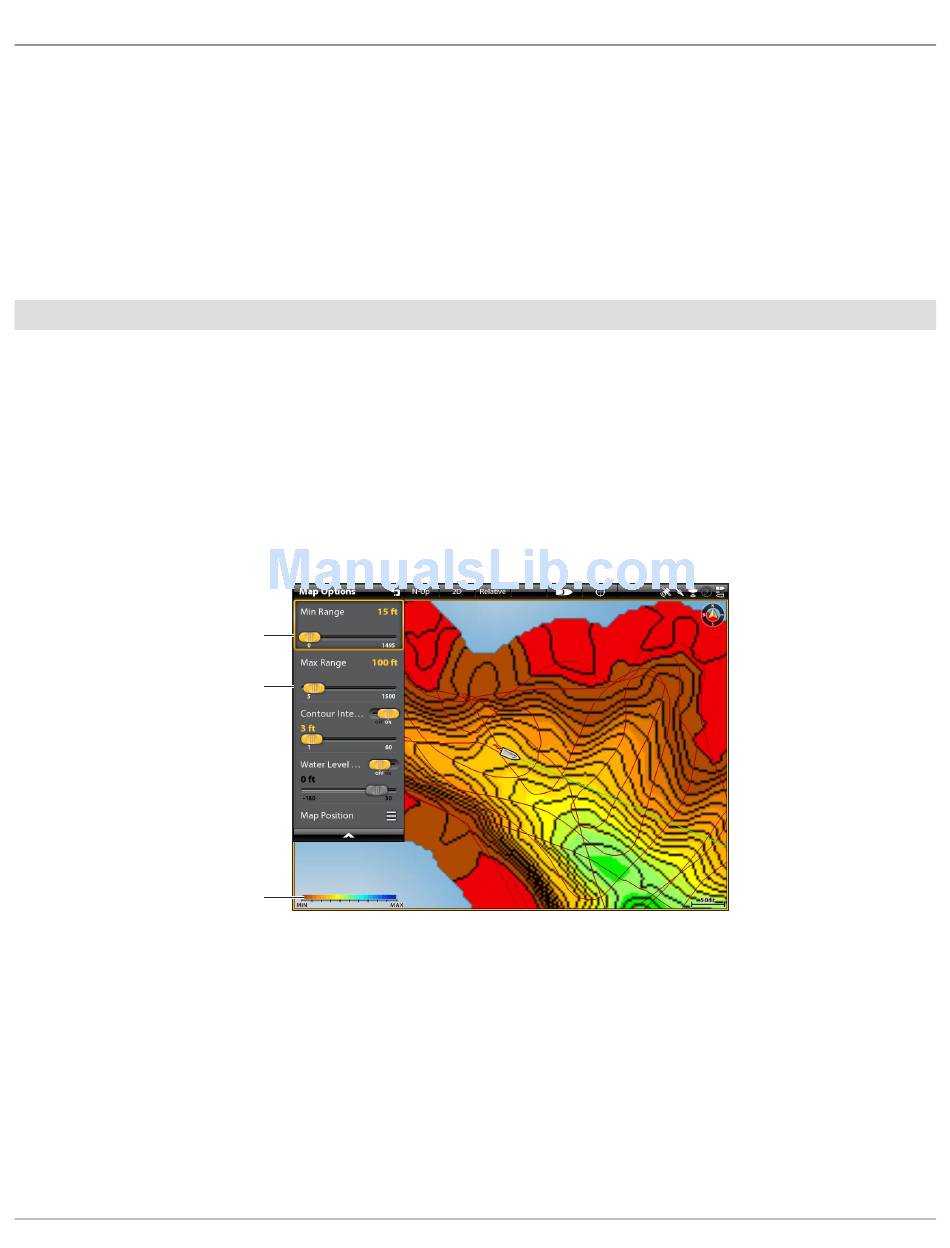

Adjusting the Display Depth Range
