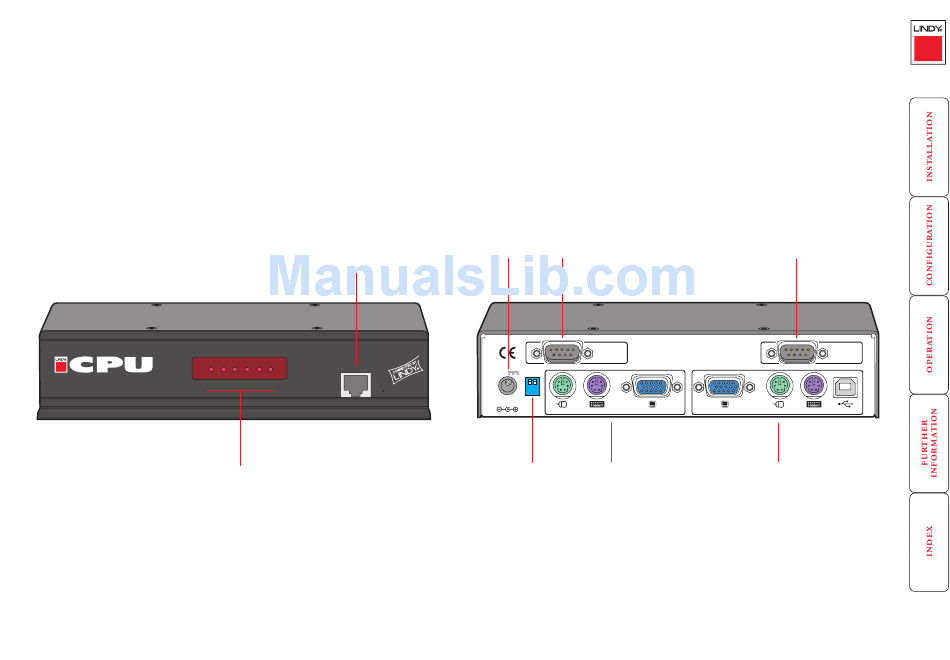

CPU IP Access Switch Plus features - front and rear

Considering its capabilities, the CPU IP is supplied within a remarkably compact
casing. Measuring just 198mm x 120mm x 43mm, it occupies just half of a
single (1U) rack space and provides most of its connectors at the rear face. The
smart front face features the IP network port and the operation indicators.
IP
Access Switch Plus
Indicators
These six indicators clearly show the key aspects of operation:
• LOC Keyboard or mouse data is being received from the local console.
• REM Keyboard or mouse data is being received from a remote viewer.
• VNC Indicates that a remote viewer is connected and active.
• 100 Indicates the Ethernet network speed (10/100Mbs).
• LNK Network link and activity indication.
• PWR Power indicator.
IP network port
This intelligent Ethernet
port can automatically
sense whether it is
attached to a 10Mb or
100Mb network.
LOC REM VNC 100 LNK PWR
Power control port
Optionally use this port
Power input to control one or more
Connect power switches. These
the supplied allow the remote user to
power take full control of the
adapter here. host system(s).
COM2
POWER
CONTROL
5V
1 2
ON
2A
KVM CONSOLE
Configuration KVM console
switches Connect a keyboard, video
Used for flash monitor and a mouse to these
upgrades and three connectors. These allow
you to perform the initial
total reset
functions. They configuration of the CPU IP.
are not required Additionally, you can use these
under normal to locally control the connected
circumstances. computer(s).
Modem port
Optionally use this port to
attach either a standard
modem or an ISDN adapter.
This feature provides an
alternative, direct-dial, remote
link into the CPU IP.
COM1
INDOOR USE ONLY
MODEM
COMPUTER / KVM SWITCH
Computer/KVM Switch
Link these connectors to the
keyboard, video and mouse ports of
the device to be remotely controlled,
either a single computer or a KVM
switch. The USB port on the right
is for future expansion and is not
currently used.
