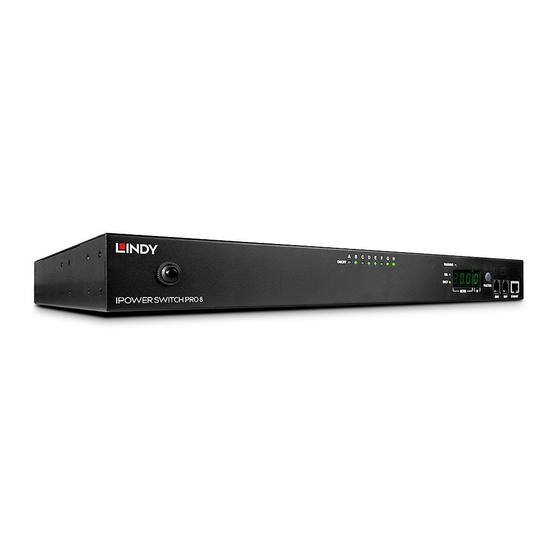

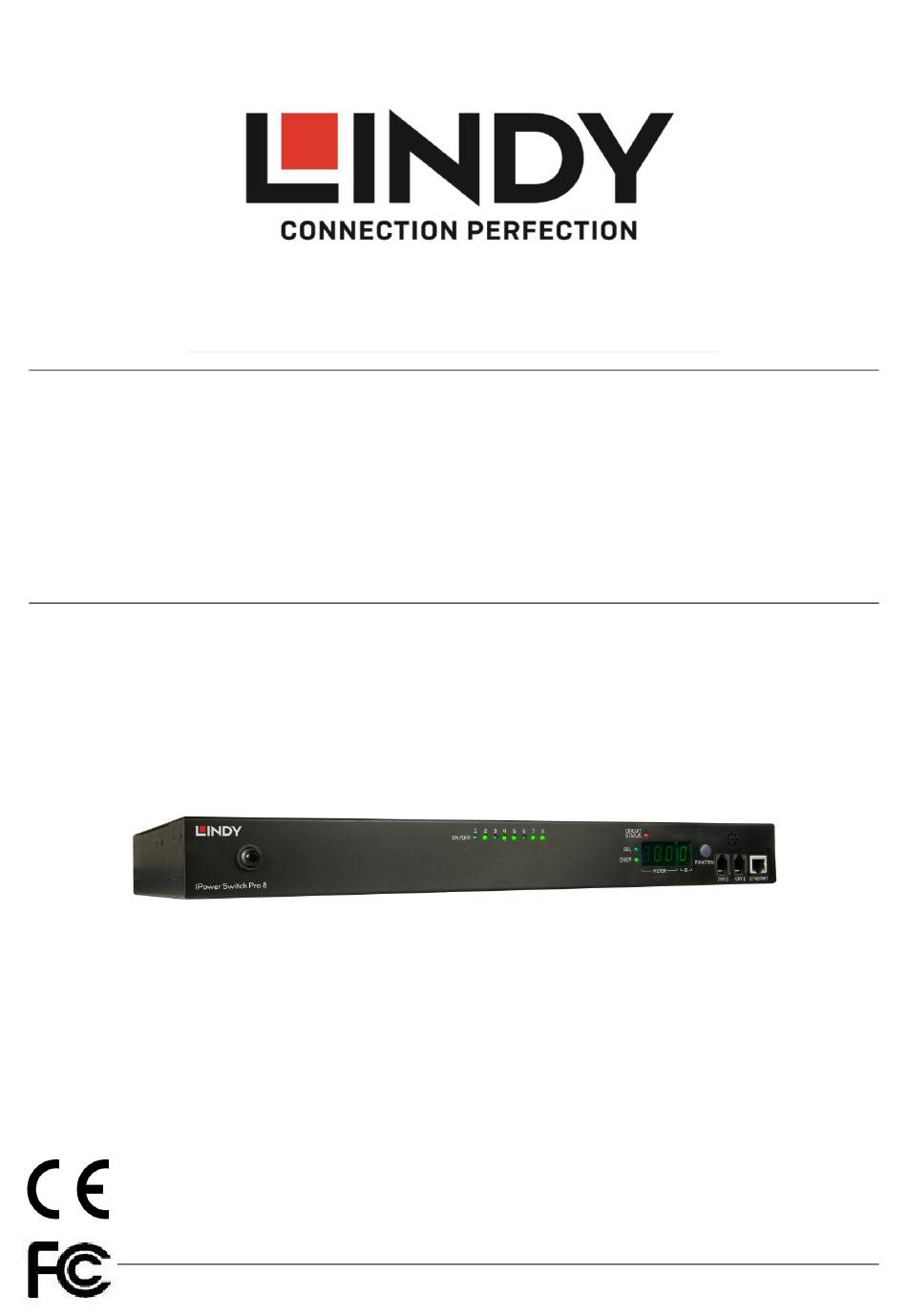

- Page 1 IPower Switch Pro 8 User Manual Eng lis h Benutzerhandbuch Deutsch Manuel Utilisateur Français Manuale Italiano No. 32659 lindy.com © LINDY Group - FIRST EDITION (June 2018)
- Page 3 Thank you for purchasing the IPower Switch Pro 8. This product has been designed to provide trouble free, reliable operation. It benefits from both a LINDY 2 year warranty and free lifetime technical support. To ensure correct use, please read this manual carefully and retain it for future reference.
- Page 4 User Manual English 2. You can add up to 8 user accounts. a. Admin (Full authority, control and configuration permission). Default Login Name“snmp”, default Login Password “1234”. b. Power User (Monitoring PDU, control the specific outlets. No permission for configurations). Default Login Password “password”.
- Page 5 User Manual English Information – System On this tab you will find all necessary information regarding system, network and SNMP. Information – Event Log On this tab you will find all event logs. It’s possible to log up to 5000 entries.
- Page 6 User Manual English Information – Data Log On this tab you will find all data logs. It’s possible to log up to 5000 entries. Management – Control This tab is for controlling a single or group outlets. ATS Primary Input Selection: Select one of the input sources as primary (Support ATS mode only)
- Page 7 User Manual English Management – Schedule On this tab it’s possible to add and modify the schedule settings by date and time for all outlets or outlet groups. Management – Ping Action This tab can be used to reboot the locked device by pinging its IP.
- Page 8 User Manual English Management – Event Action This tab allows you to configure the outlet actions for current, temperature and humidity over threshold. Receive Trap OID equal to: Users can input the private OID to trigger the specified outlet action. Management –...
- Page 9 User Manual English Management – Threshold This tab is to configurate thresholds for current, temperature and humidity.
- Page 10 User Manual English Configuration – Network This tab is for IP Address configurations. The default setting for the way to get an IP address is DHCP. If the PDU can´t get the IP from DHCP server, the IP address will stay at 192.168.0.216 The maximum length of the host name is 36 characters.
- Page 11 User Manual English Configuration – Mail This tab is to configure messages to pre-defined accounts when different events are occurring. Configuration – SNMP This tab is to configurate network management protocols. Supports SNMPv1, v2 and v3.
- Page 12 User Manual English...
- Page 13 User Manual English Configuration – Time This tab is to configure time manually or by NTP for schedules and log records. Configuration – Radius The system supports the Remote Authentication Dial-in User Service protocol. (RADIUS). It provides a centralized network protocol to enable remote authentication and authorization.
- Page 14 User Manual English Configuration – Log Export: Export events and data log in text format. Set the date to mail kWh usage information. Syslog: Send event log to specified syslog server. Heartbeat Trap: Send trap to the specified IP to indicate PDU is alive. Event Log: Check the box to enable to log the specified event...
- Page 15 User Manual English Configuration – System System: Export to backup system configuration. Import system configuration from backup file. Firmware Upgrade: Update: Keep all configurations after complete firmware upgrade. Update and reset: Reset all configuration back to default after complete firmware upgrade. Reset System: Restart network system through web.
-
Page 16: Ce/Fcc Statement
LINDY Herstellergarantie – Hinweis für Kunden in Deutschland LINDY gewährt für dieses Produkt über die gesetzliche Regelung in Deutschland hinaus eine zweijährige Hersteller- garantie ab Kaufdatum. Die detaillierten Bedingungen dieser Garantie finden Sie auf der LINDY Website aufgelistet bei den AGBs. -
Page 17: Recycling Information
Geräte müssen den Sammel- und Rückgabesystemen zugeführt werden! Dort werden sie kostenlos entgegen genommen. Die Kosten für den weiteren Recyclingprozess übernehmen die Gerätehersteller. LINDY bietet deutschen Endverbrauchern ein kostenloses Rücknahmesystem an, beachten Sie bitte, dass Batterien und Akkus den Produkten vor der Rückgabe an das Rücknahmesystem entnommen werden müssen und über die Sammel- und Rückgabesysteme für Batterien separat entsorgt werden müssen.
