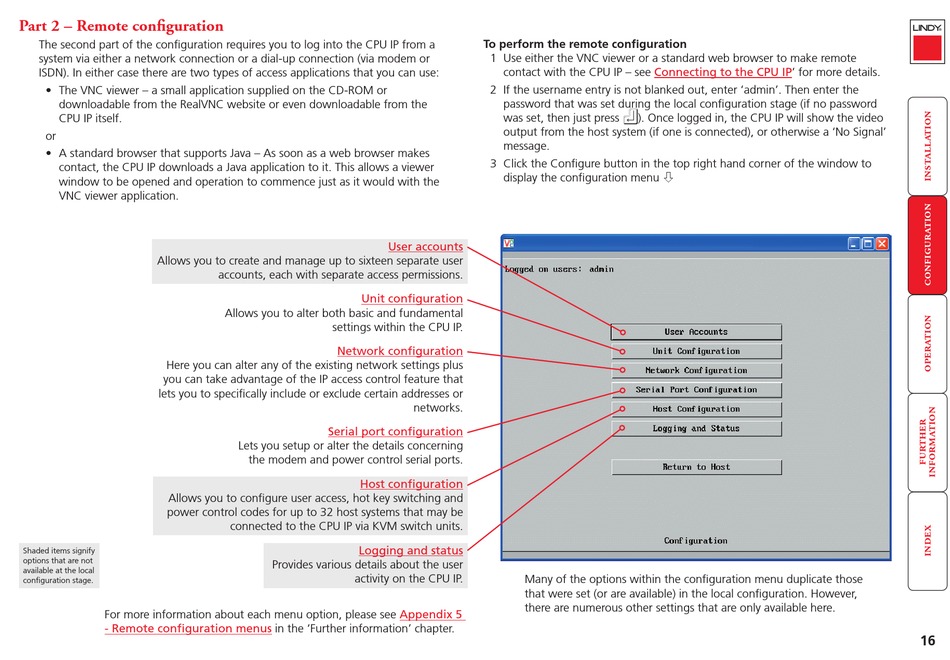

Part 2 – Remote configuration
The second part of the configuration requires you to log into the CPU IP from a
system via either a network connection or a dial-up connection (via modem or
ISDN). In either case there are two types of access applications that you can use:
• The VNC viewer – a small application supplied on the CD-ROM or
downloadable from the RealVNC website or even downloadable from the
CPU IP itself.
or
• A standard browser that supports Java – As soon as a web browser makes
contact, the CPU IP downloads a Java application to it. This allows a viewer
window to be opened and operation to commence just as it would with the
VNC viewer application.
Allows you to create and manage up to sixteen separate user
Here you can alter any of the existing network settings plus
you can take advantage of the IP access control feature that
lets you to specifically include or exclude certain addresses or
Allows you to configure user access, hot key switching and
power control codes for up to 32 host systems that may be
Shaded items signify
options that are not
available at the local
configuration stage.
For more information about each menu option, please see
- Remote configuration menus
User accounts
accounts, each with separate access permissions.
Unit configuration
Allows you to alter both basic and fundamental
settings within the CPU IP.
Network configuration
Serial port configuration
Lets you setup or alter the details concerning
the modem and power control serial ports.
Host configuration
connected to the CPU IP via KVM switch units.
Logging and status
Provides various details about the user
activity on the CPU IP.
in the 'Further information' chapter.
To perform the remote configuration
1 Use either the VNC viewer or a standard web browser to make remote
contact with the CPU IP – see
2 If the username entry is not blanked out, enter 'admin'. Then enter the
password that was set during the local configuration stage (if no password
was set, then just press
output from the host system (if one is connected), or otherwise a 'No Signal'
message.
3 Click the Configure button in the top right hand corner of the window to
display the configuration menu
networks.
Many of the options within the configuration menu duplicate those
that were set (or are available) in the local configuration. However,
there are numerous other settings that are only available here.
Appendix 5
Connecting to the CPU IP' for more details.
). Once logged in, the CPU IP will show the video
ò
