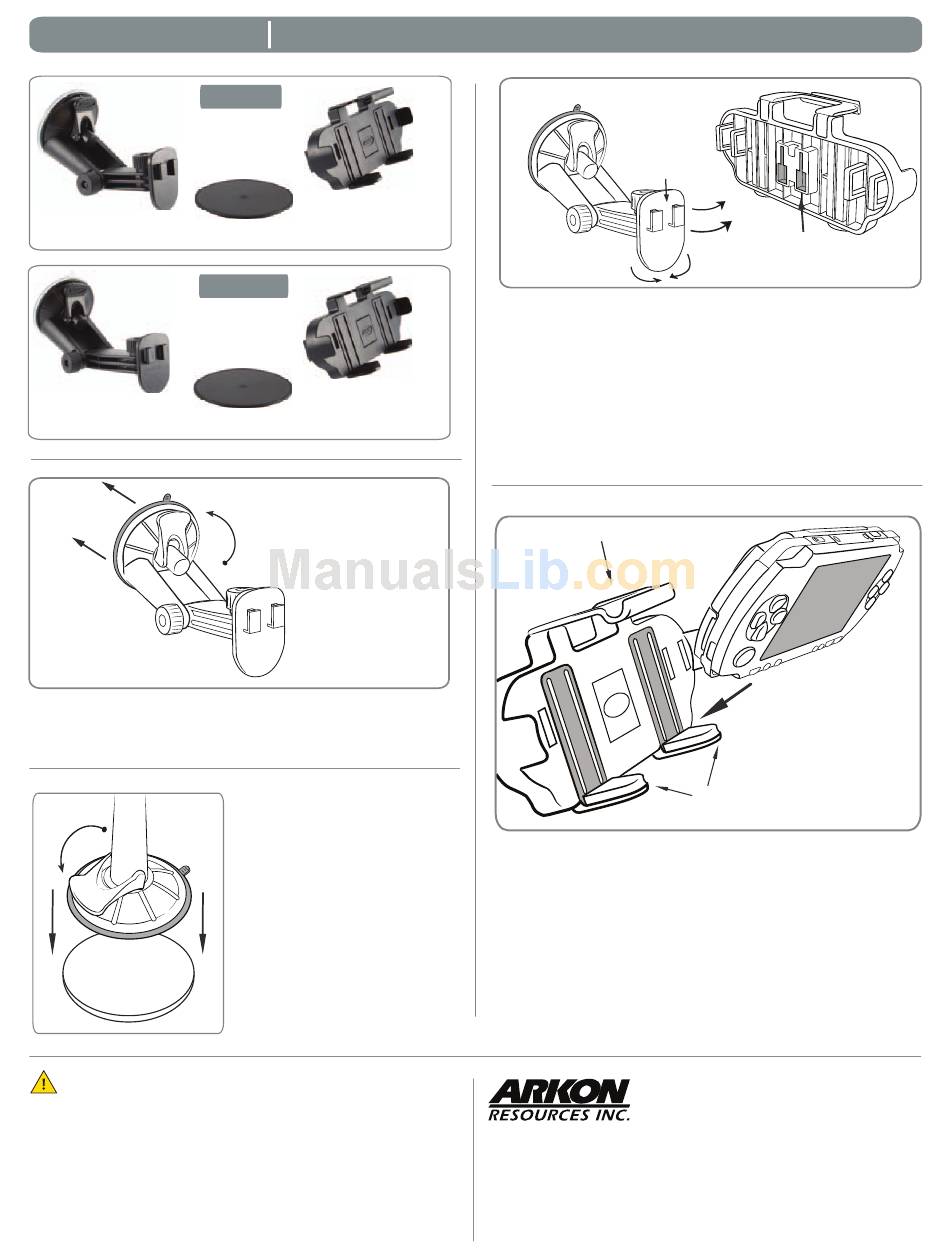

Arkon VG917-L Manual

VG917 & VG917-L
CM017-2
CM017-L-2
(B)
(A)

Windshield Installation

Step 1.
Push the pedestal suction cup (A) firmly to the windshield.
Flip the lever (B) down to secure the suction cup.
(A)
(B)
(C)

Safety Precautions

Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and/or
air bag deployment.
Arkon Resources, Inc. is not responsible for any damages caused to
your car, your device, or yourself due to the installation or use of
the pedestal mount.
PSP-Mount Windshield or Dash/Console Mount
VG917
VG085
AP020
VG917-L
VG085
AP020

Dash Installation

Step 1. Locate a safe flat surface on
the dash or console to
mount the pedestal. Clean
the dash with the alcohol
pad provided. Let the dash
surface dry before applying
the adhesive disc (C).
Step 2. Push the pedestal suction
cup (A) firmly to the disc (C).
Flip the lever (B) down to
secure the suction cup.
TM
(D)

Pedestal Adjustment and PSP Cradle Attachment

Step 1. Adjust the angle of the pedestal head by loosening the
adjustment knob (D).
Adjust the lateral angle of the pedestal head by loosening the
Step 2.
adjustment knob (E).
Step 3. Attach the PSP cradle to the dual-T tab head (F) by inserting the
T-tabs into the T-slots (G).

Sony PSP Cradle Instructions

Insert PSP into the cradle at a slant so that the base of the PSP
Step 1.
comes to rest on the spring loaded support legs (H).
Step 2. While firmly holding the cradle, push downward on the PSP so
that the spring loaded support legs slide down. This allows
enough clearance for the top of the PSP to slide under the top
support clip (I).
To remove PSP from cradle follow step 2
Step 3.
Consumer Hotline:
(USA) (800) 841-0884
(INT'L) (626) 254-9005
Mon-Fri. 9am-5pm, PST
Arkon Resources, Inc. is not affiliated with Sony Computer Entertainment Inc.
(F)
(E)
(I)
(H)
The Mobile Mounting Specialists
© Copyright 2007 Arkon Resources, Inc.
PSP is a trademark of Sony Computer Entertainment Inc.
(G)
TM
www.arkon.com
Arcadia, CA 91006 USA
Made in Taiwan
