Arkon FLBKTAB04 Manual

FLBKTAB04 | Metal Locking Forklift Tablet Mount with Key Lock
TAB004KL
SP-RM250
WARNING
CHOKING HAZARD - Keep out of reach from children under 8 yrs. as they can choke or suffocate on parts included with this system
WARNING
Arkon ® is not responsible for any damages caused to your device or yourself due to the installation or use of this mount. Do not install Arkon
of vehicles. Arkon ® assumes no responsibility or liability for injury or death as a result of failure to install in a safe location. Arkon
product, or people due to the installation or use of this product.
APFLBKTRC
SP-12M-4M7
SPSCPBOLT
APMAMPS25MM

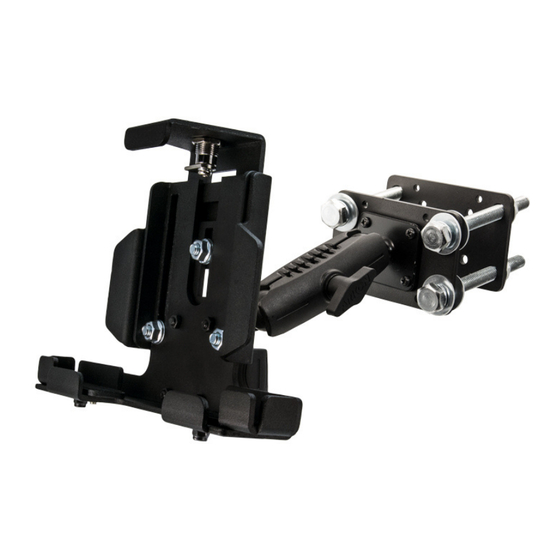

Example of assembled mount
Includes:
1 – Universal Locking Adjustable Aluminum Tablet Holder Kit
1 – Robust™ Series Standard Mount Shaft
2 – 2.5" x 4" Black Steel Mounting Plate
1 – Hardware Pack
2 – Metal 4-Hole AMPS to 25mm Ball Adapter
1 – Screw cap pack (5) for 3/8 bolts
1 – Screw Pack
SP4FLIFT
FLBKTAB04 comes with two steel mounting plates that can be placed on
either side of the forklift pillar. To secure the recessed plate to the front of
the forklift pillar, use the included recessed plate hardware. At each corner,
use the included 3/8-16x4" bolts with washers and nuts to secure the
plates.
Each APFLBKTRC steel plate measures 4" x 2.5" x 1/4" (101mm x 64mm x
6mm) and weighs just over 0.5 pounds.
USA (800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm PST
(SP-RM250)
(APFLBKTRC)
(SP4FLIFT)
(APMAMPS25MM)
(SPSCPBOLT)
(SP-12M-4M7)
Assembled onto a forklift
® products near areas that intefere with operation
® is not responsible for any damages caused to vehicles,
arkon.com
Designed in USA
©Arkon Resources, Inc.
rev.022024
(TAB004KL)
