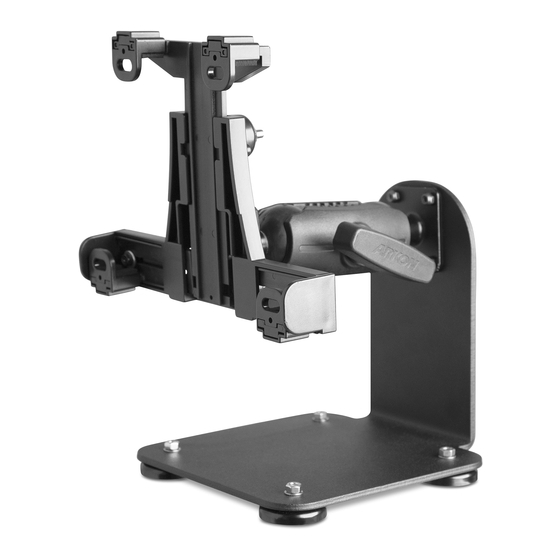

FLTAB005RM38 | SteadyMag™ Magnetic Mount with Locking Tablet Holder
1

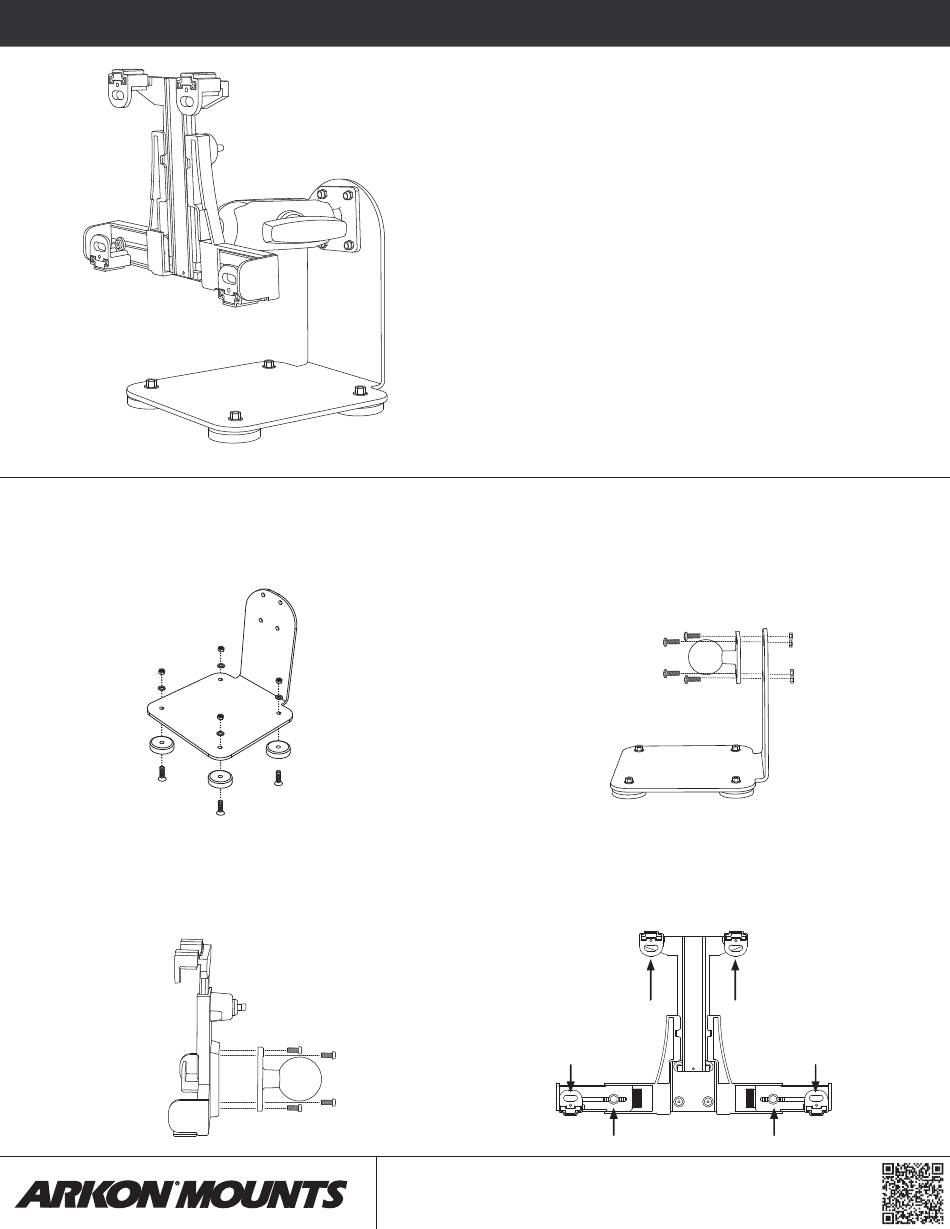

Assembling the magnetic plate kit
Remove all components from the packaging and assemble
the mounting plate with the base magnets as seen in the
diagram below.
3
Installing the Locking Tablet holder to the shaft arm
Locate the packaging that contains the locking tablet holder,
locking keys, and installation hardware. Locate the second
38mm ball adapter and allen key with screws. After that, install
the four mounting screws by putting them through the ball
adapter plate and into the tablet holder.
FLTAB005RM38
USA
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm PST
Includes:
1 – Manual
5 – Washers
(M5 x 10mm x 0.5mm Stainless Steel Round Flat)
5 – Nylon Nut
(M5-0.8 DIN 985 A2 Stainless Steel)
5 – Screws
(M5-0.8 x 16mm DIN Phillips Flat Head A2 Stainless Steel Machine)
1 – Mounting Bracket
4 – Base Magnets
(SPMAG35MM)
1 – 38mm Double Ball Mount
4 – Screws
(Pan Head Phillips M4 x 0.7mm Thread, 14mm Long)
4 – Nylon-Insert Locknut
1 – Tablet Holder with Hardware
4 – Screws
(M4 x 10mm)
2 – Locking Keys
1 – Wrench Key
(2.38mm hex)
2
Foam Padding
–
Note: Different types of screws are included with this
system. Please consider keeping components sealed until
needed during the installation process to avoid confusion
Important: Clean the application surface and make sure
it is free of dirt, dust, and grease before installing the
mounting hardware.
2
Installing the 38mm ball mount to the base plate
Locate the packaging with the double ball adapters and
shaft arm. Locate the packaging with the four mounting
screws and nuts. Take out the double ball mount and put
one of the ball adapters on top of the mounting plate's
four screw insertion holes. Use the provided screws and
nuts to attach it, following the diagram.
4
Adjusting the length of the tablet holder
Use a Phillips screwdriver to adjust all screw locations on
the tablet holder. Loosen the screws to expand the width
and depth of the tablet holder.
(800) 841-0884
(FLIFT03)
(RM38352XMAMPS)
(M4 x 0.7mm Thread, 5mm High)
(TAB005KL)
Need assistance?
arkon.com
Scan to email our
Designed in USA
Arkon
© Arkon Resources, Inc.
customer
®
service team.
