Arkon FLBK3885TAB4 Manual

FLBK3885TAB4 | Metal Locking Forklift Tablet Mount
TAB004KL
APMAMPS38MM
WARNING
CHOKING HAZARD - Keep out of reach from children under 8 yrs. as they can choke or suffocate on parts included with this system
WARNING
Arkon® is not responsible for any damages caused to your device or yourself due to the installation or use of this mount. Do not install Arkon® products near areas that intefere with operation
of vehicles. Arkon® assumes no responsibility or liability for injury or death as a result of failure to install in a safe location. Arkon® is not responsible for any damages caused to vehicles,
product, or people due to the installation or use of this product.
APFLBKTRC SP4FLIFT
SPSCPBOLT
SPRM3885
Example of assembled mount
USA (800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm PST

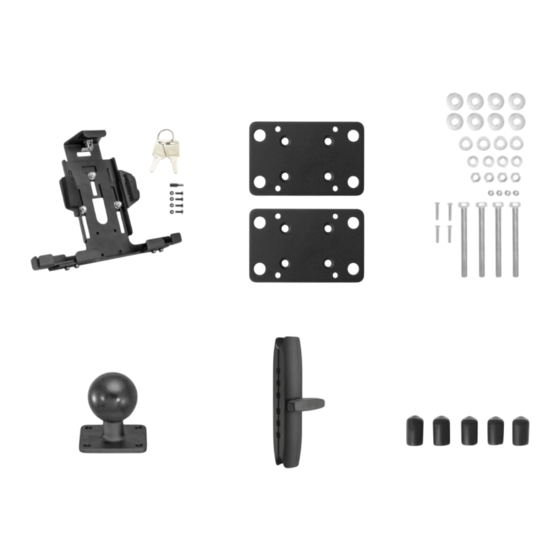

Includes:
1 – Universal Locking Adjustable Aluminum Tablet Holder Kit
1 – Robust™ Series 8.5 inch Metal Mount Shaft
2 – 2.5" x 4" Black Steel Mounting Plate
1 – Hardware Pack
(SP4FLIFT)
2 – Metal 4-Hole AMPS to 38mm Ball Adapter
1 – Screw cap pack (5) for 3/8 bolts
FLBK3885TAB4 comes with two steel mounting plates that can be placed on
either side of the forklift pillar. To secure the recessed plate to the front of the
forklift pillar, use the included recessed plate hardware. At each corner, use the
included 3/8-16x4" bolts with washers and nuts to secure the plates.
Each APFLBKTRC steel plate measures 4" x 2.5" x 1/4" (101mm x 64mm x 6mm)
and weighs just over 0.5 pounds.
arkon.com
Designed in USA
©Arkon Resources, Inc.
rev.012324
(TAB004KL)
(SPRM3885)
(APFLBKTRC)
(APMAMPS38MM)
(SPSCPBOLT)
Device not included
Need assistance?
Scan to email our
Arkon® customer
service team.
