Ozito SCMS-107 Instruction Manual

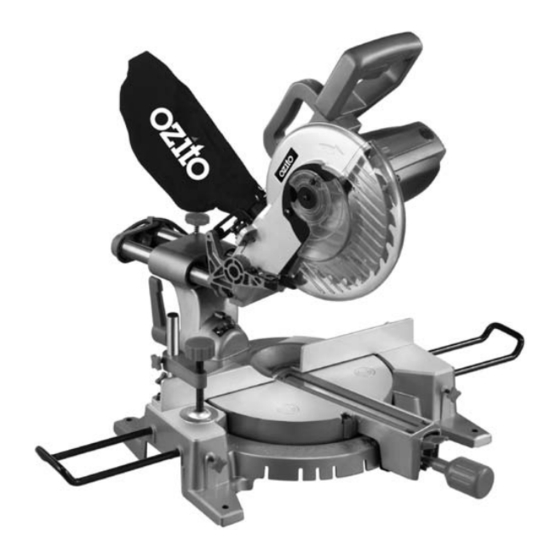

Slide compound mitre saw 1600w
Hide thumbs
Table of Contents

Advertisement

Quick Links

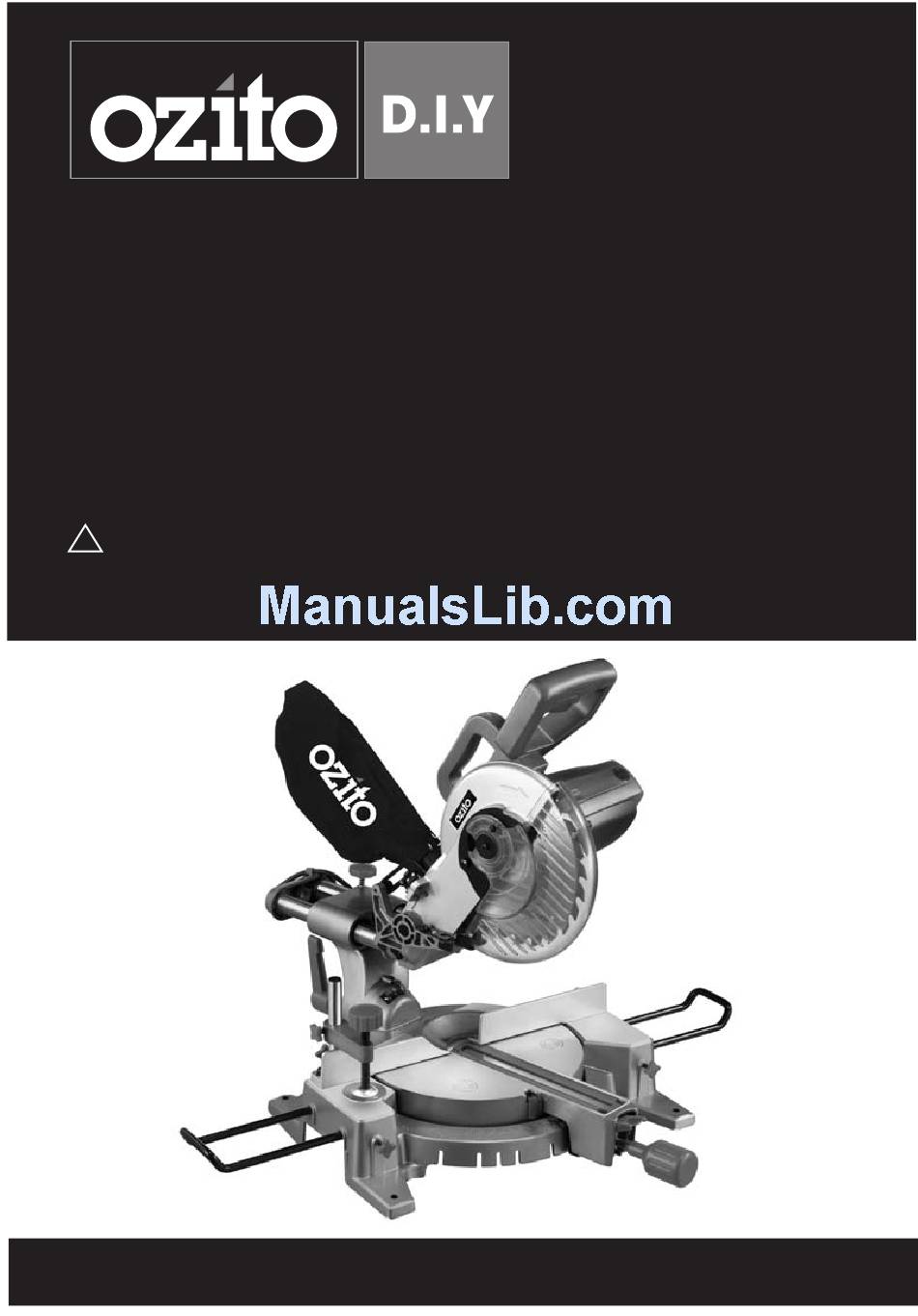

Slide Compound
Mitre Saw
1600W
Instruction Manual
3 Year Replacement Warranty
SCMS-107
! !
WARNING: Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
0910
www.ozito.com.au
To view the full range visit:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCMS-107 and is the answer not in the manual?

Questions and answers

Related Manuals for Ozito SCMS-107

Summary of Contents for Ozito SCMS-107

  • Page 1 1600W Instruction Manual 3 Year Replacement Warranty SCMS-107 WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Page 2 SPECIFICATIONS…………………………………………. Page 2 PACK CONTENTS………………………………………… Page 3 KNOW YOUR PRODUCT………………………………… Page 4 INTRODUCTION …………………………………………. Page 4 ELECTRICAL SAFETY……………………….……………. Page 5 GENERAL SAFETY INSTRUCTIONS ………….………… ADDITIONAL SAFETY INSTRUCTIONS FOR MITRE SAWS……………………………………………… Page 7 SET-UP AND ADJUSTMENT……………………………. Page 9 OPERATION……………………………………….……….

  • Page 3: Specifications

    210mm (8 Bore Size: 16mm Tool Weight: 16kg PACK CONTENTS 1 x Slide Compound Mitre Saw (SCMS-107) 1 x 6mm Allen key 2 x Side support bars 1 x 13mm Hex spanner 1 x Material clamp 2 x Spare carbon brushes...

  • Page 4: Know Your Product

    KNOW YOUR PRODUCT 1. Dust bag 22. Side support bar locking knobs (x2) 2. Dust extraction port 23. Bench mounting holes (x4) 3. Cutting head 24. Rotating mitre table 4. Head locking pin 25. Table insert (kerf plate) 5. Carry handle 26.

  • Page 5: Introduction

    The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.

  • Page 6: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “Power Tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. SAVE THESE INSTRUCTIONS This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge,...
  • Page 7 GENERAL SAFETY INSTRUCTIONS (cont.) b) Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Avoid accidental starting. Ensure the switch is in the off position before plugging in.

  • Page 8: Additional Safety Instructions For Mitre Saws

    ADDITIONAL SAFETY INSTRUCTIONS FOR MITRE SAWS This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the appliance.
  • Page 9 ADDITIONAL SAFETY INSTRUCTIONS FOR MITRE SAWS (cont.) • Do not attempt to free a jammed blade before first switching off the machine. • Do not slow or stop a blade with a piece of wood. Let the blade come to rest without assistance.

  • Page 10: Set-Up And Adjustment

    Mitre Saw to other work areas. Note: Ensure the mounting surface is not warped as an uneven surface can cause binding and inaccurate cutting. You can purchase an Ozito Mitre Saw Stand to fit this unit, available at your local Bunnings Warehouse.
  • Page 11 SET-UP AND ADJUSTMENT (cont.) Releasing the Head Locking Pin The head locking pin (4) is used to hold the cutting head (3) Fig. 4 down when transporting or storing the Mitre Saw. The Mitre Saw must not be used with the cutting head (3) in the locked down position.
  • Page 12 SET-UP AND ADJUSTMENT (cont.) 2. To loosen the mitre lock knob (26), turn in an Fig. 8 anti-clockwise direction. 3. Adjust the mitre angle by loosening the mitre lock knob (26) and pushing down on the mitre adjustment lever (27) (Fig. 8). The rotating mitre table (24) can now be adjusted to the left or the right for the desired mitre angle.
  • Page 13 SET-UP AND ADJUSTMENT (cont.) Material Clamp The material clamp (8) can be mounted on either side of the Mitre Saw behind the rear fence (19). Depending on the cut, the material clamp (8) will need to be mounted on the appropriate side. When performing bevel cuts, the material clamp (8) must be on the right hand side of the fence (otherwise it will interfere with the cutting action).
  • Page 14 SET-UP AND ADJUSTMENT (cont.) Retractable Safety Guard Fig. 14 The retractable safety guard (11) provides protection from both sides of the saw blade (13). It retracts over the upper fixed blade guard (10) as the cutting head (3) is lowered into the workpiece (Fig. 14). Dust Bag Fig.
  • Page 15 SET-UP AND ADJUSTMENT (cont.) Trenching Trenching refers to restricting the depth of cut and permits a "trench" to be cut in the workpiece. 1. Ensure the cutting head (3) is raised and the slide lock Fig. 19 (32) is released (Fig. 19). 2.

  • Page 16: Operation

    OPERATION Turning On and Off Fig. 23 1. To turn the Mitre Saw on, depress and hold the on/off switch (7) (Fig. 23). 2. To turn the Mitre Saw off, release the on/off switch (7). CAUTION! Do not use the Mitre Saw to cut metal or masonry. Straight and Mitre Cutting (without slide action) When cutting a narrow piece of wood, it is not necessary to use the slide mechanism.
  • Page 17 OPERATION (cont.) 2. Loosen the mitre lock knob (26) by turning in an Fig. 27 anti-clockwise direction (Fig. 27). 3. Push down on the mitre adjustment lever (27) and Fig. 28 rotate the mitre table (24) to the desired angle (Fig. 28). Use the mitre angle indicator (28) as a guide.
  • Page 18 OPERATION (cont.) Cross Cutting (with slide action) When cutting wide pieces of wood, ensure the slide locking knob (32) is loose. 1. Ensure the cuttting head (3) is raised and the head locking pin (4) is released. 2. Slide the cutting head towards you. 3.
  • Page 19 OPERATION (cont.) 7. When cutting long pieces of timber, support the ends of the timber with the side support bars (21), a roller stand or a work surface (bench) that is level with the mitre table (24). 8. Use the material clamp (8) to secure the workpiece. 9.
  • Page 20 OPERATION (cont.) 5. Loosen the bevel lock lever (16) and move the cutting head (3) to the left to the desired bevel angle (as shown on the bevel angle indicator (17)) (Fig. 34). 6. Place the workpiece flat on the rotating mitre table (24) with one edge securely against the rear fence (19).

  • Page 21: Maintenance

    MAINTENANCE WARNING! Always ensure the Mitre Saw is switched off and the plug is removed before performing any adjustments or maintenance procedures. Power Cable Maintenance If the power cable (39) needs replacing, the task must be carried out by an electrician or a power tool repairer in order to avoid a safety hazard.
  • Page 22 MAINTENANCE (cont.) 4. Place the 13mm hex spanner (14) over the bolt in Fig. 35 the centre of the blade (13) (Fig. 35). 5. Depress the spindle lock (30). To ensure it engages Fig. 36 correctly, rotate the 13mm hex spanner (14) until you hear it click (Fig.
  • Page 23 MAINTENANCE (cont.) Setting the Table Square with the Blade Tools required (not supplied): 10mm Ring spanner, set square, Phillips Head screwdriver. After replacing the blade or over time, the Mitre Saw angles may require adjusting so that the 0° angles (both bevel and mitre) are actually located at exactly 0°. 1.
  • Page 24 MAINTENANCE (cont.) 7. Place a set square (not included) on the rotating Fig. 42 mitre table (24) and against the flat part of the blade (13) (Fig. 42). NOTE: Ensure the set square contacts the flat part of the blade (13) and not the teeth. 8.
  • Page 25 MAINTENANCE (cont.) 17. Using a scrap piece of wood, perform a straight cut at 0°. 18. Use a set square (not included) check that the cut is Fig. 46 accurate (Fig. 46). 19. If the cut is not square, repeat steps 1-18 to set the 90°...
  • Page 26 MAINTENANCE (cont.) 8. Place a square against the rear fence (19) and Fig. 49 alongside the flat part of the blade (13) (Fig. 49). 90º 9. Adjust the rear fence (19) until it is square with the blade (13). 10. Tighten the four screws using the 6mm allen key (15) and turning in a clockwise direction.
  • Page 27 Always replace both carbon brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the Mitre Saw by an unauthorised person or by mishandling of the Mitre Saw.

  • Page 28: Spare Parts

    SPARE PARTS Limited spare parts are available subject to availability. Please contact a local Bunnings Special Orders Desk to order the required spare parts. Most common spare parts listed below Spare Part Part No. Fence SPSCMS107-52 Blade Bolt M8x16 SPSCMS107-63 Flange set SPSCMS107-67A Carbon Brush, Pair...

  • Page 29: Caring For The Environment

    Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1-23 Letcon Drive, Bangholme Victoria, Australia, 3175 Telephone: 1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au...

  • Page 30: Warranty

    PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
