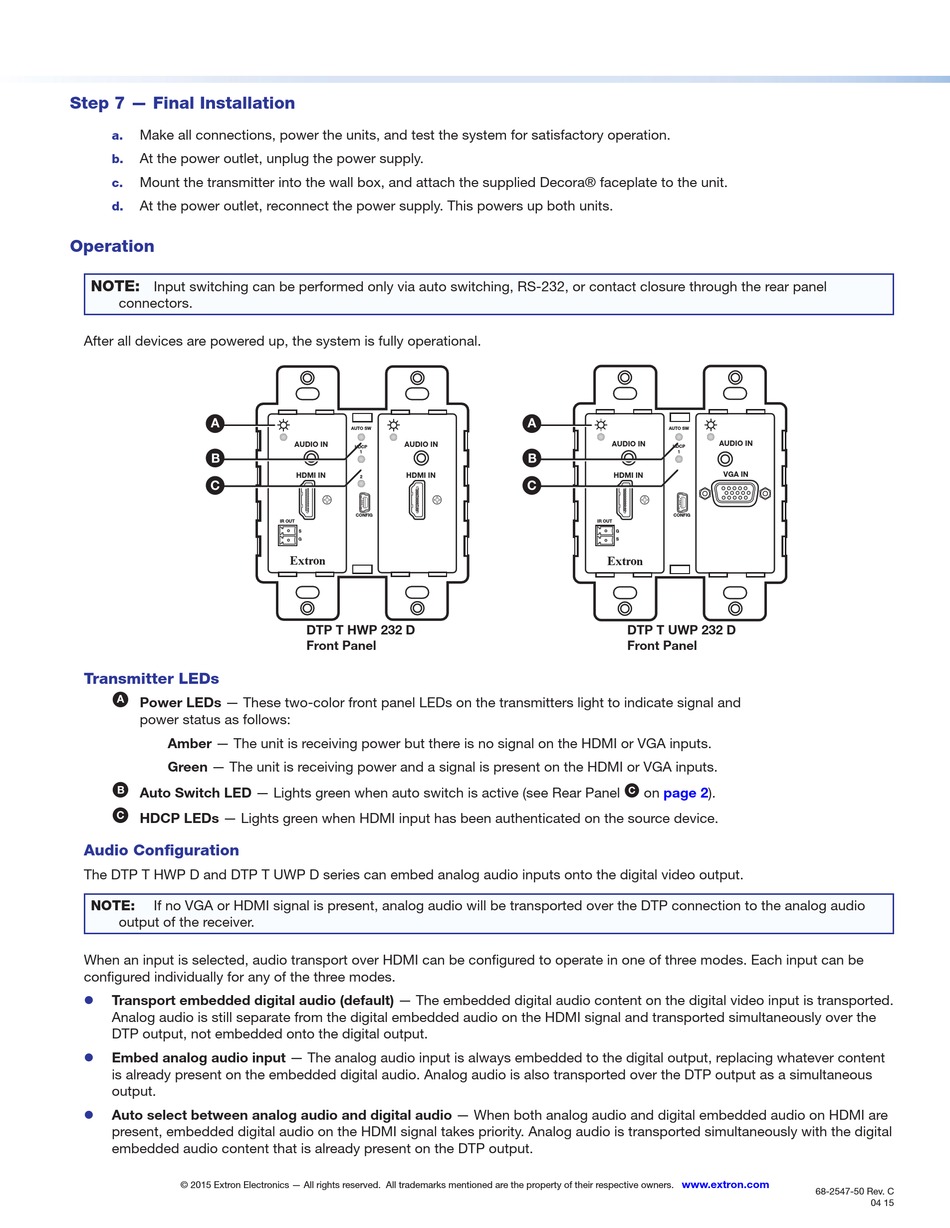

Step 7 — Final Installation
Make all connections, power the units, and test the system for satisfactory operation.
a.
At the power outlet, unplug the power supply.
b.
Mount the transmitter into the wall box, and attach the supplied Decora® faceplate to the unit.
c.
At the power outlet, reconnect the power supply. This powers up both units.
d.
Operation
NOTE:
Input switching can be performed only via auto switching, RS-232, or contact closure through the rear panel
connectors.
After all devices are powered up, the system is fully operational.
A
B
C
Transmitter LEDs
A
Power LEDs — These two-color front panel LEDs on the transmitters light to indicate signal and
power status as follows:
Amber — The unit is receiving power but there is no signal on the HDMI or VGA inputs.
Green — The unit is receiving power and a signal is present on the HDMI or VGA inputs.
B
Auto Switch LED — Lights green when auto switch is active (see Rear Panel
C
HDCP LEDs — Lights green when HDMI input has been authenticated on the source device.

Audio Configuration

The DTP T HWP D and DTP T UWP D series can embed analog audio inputs onto the digital video output.
NOTE: If no VGA or HDMI signal is present, analog audio will be transported over the DTP connection to the analog audio
output of the receiver.
When an input is selected, audio transport over HDMI can be configured to operate in one of three modes. Each input can be
configured individually for any of the three modes.
Transport embedded digital audio (default) — The embedded digital audio content on the digital video input is transported.
z
Analog audio is still separate from the digital embedded audio on the HDMI signal and transported simultaneously over the
DTP output, not embedded onto the digital output.
Embed analog audio input — The analog audio input is always embedded to the digital output, replacing whatever content
z
is already present on the embedded digital audio. Analog audio is also transported over the DTP output as a simultaneous
output.
Auto select between analog audio and digital audio — When both analog audio and digital embedded audio on HDMI are
z
present, embedded digital audio on the HDMI signal takes priority. Analog audio is transported simultaneously with the digital
embedded audio content that is already present on the DTP output.
© 2015 Extron Electronics — All rights reserved. All trademarks mentioned are the property of their respective owners.
AUTO SW
AUDIO IN AUDIO IN
HDCP
1
HDMI IN HDMI IN
2
CONFIG
IR OUT
S
G
Extron
DTP T HWP 232 D
Front Panel
A
AUTO SW
AUDIO IN
HDCP
B
1
HDMI IN
C
CONFIG
IR OUT
G
S
Extron
DTP T UWP 232 D
Front Panel
C
on page 2).
www.extron.com
AUDIO IN
VGA IN
68-2547-50 Rev. C
04 15
