Part name
No.
6
Menu button
7
Power switch
Terminals for exterior Camera / Interphone connection and program
8
8
equipment and Program.

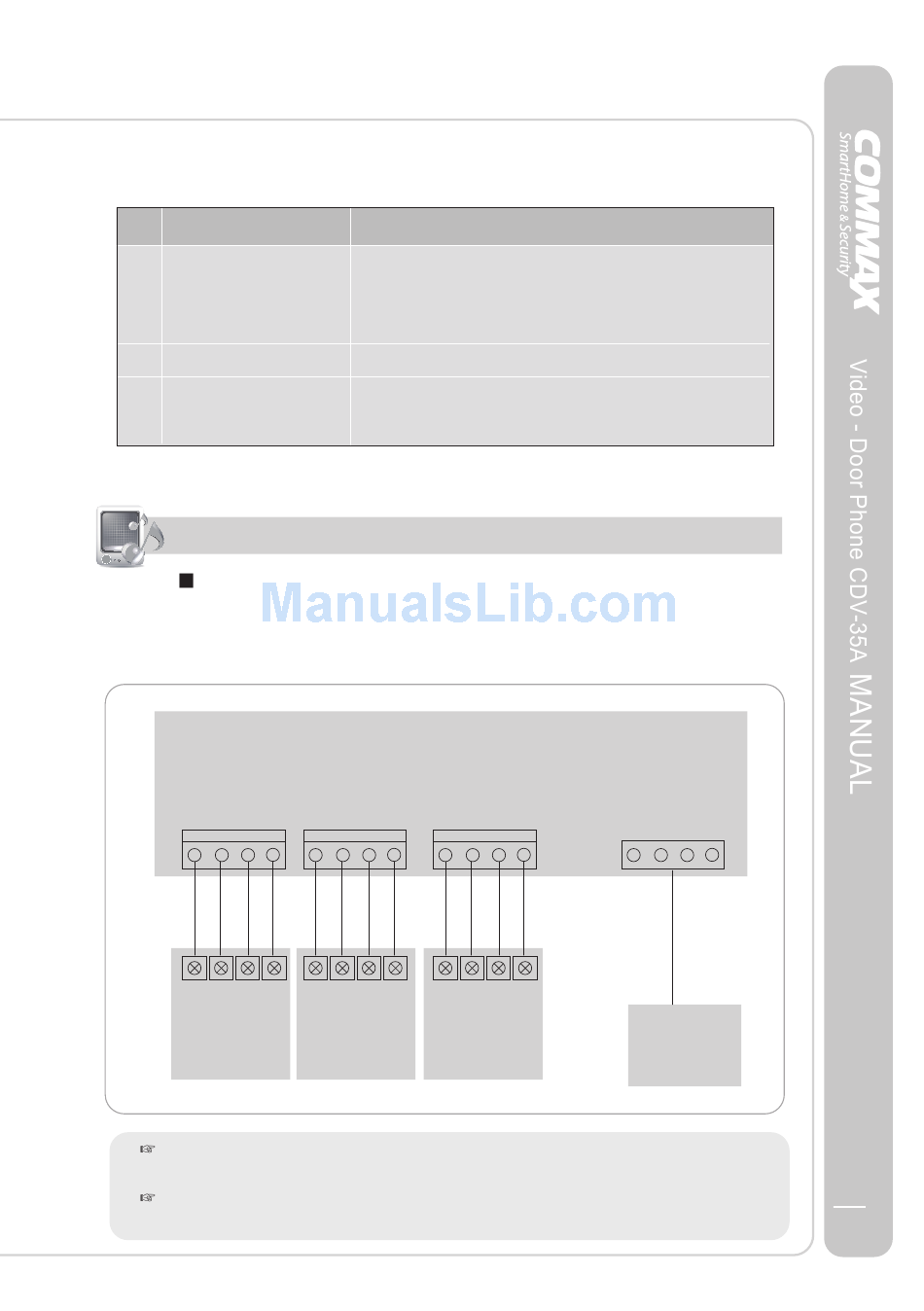

Wiring for this equipment is as follows
CAMERA CONNECTOR POLARITY
1. RED : VOICE 2. BLUE : GND 3. YELLOW : POWER(+12V)
4. WHITE : VIDEO
1 2 3 4
1 2 3 4
CAMERA1
When adding a second monitor, visual and audio quality of video may
deteriorate
When using UTP CABLE[CAT.5] for better image quality, connect the
rest 4 lines to GND after connecting 4 lines with monitor and camera.
Use this in order to change the setting value.
① Calling sound adjustment
② Change of image setting
ON/OFF switch
update terminal

Wiring

MONITOR
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
CAMERA2
INTERPHONE
Description
1 2 3 4
PROGRAM
COMMAX
05
