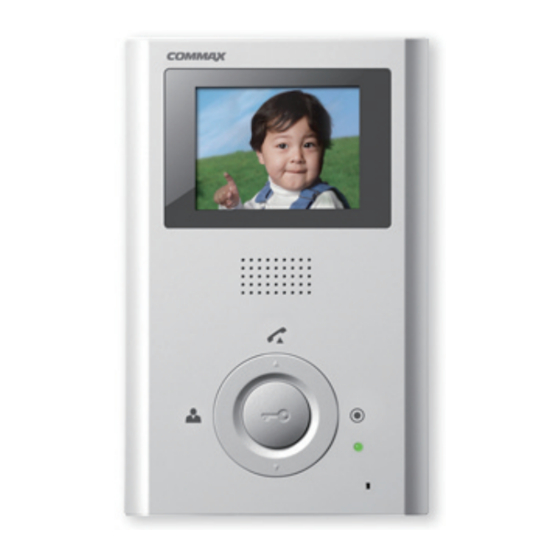

Commax CDV-352HD User Manual

Color video door phone
Hide thumbs Also See for CDV-352HD:
Table of Contents

Advertisement

Quick Links

User Manual

COLOR VIDEO DOOR PHONE CDV-352HD
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDV-352HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commax CDV-352HD

Summary of Contents for Commax CDV-352HD

  • Page 1: User Manual

    User Manual COLOR VIDEO DOOR PHONE CDV-352HD • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.

  • Page 2: Table Of Contents

    Greetings 1. Thank you for purchasing Commax product. 2. You should read this user’s manual carefully before operating the unit. Table of Contents Greetings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -1 1.

  • Page 3: Warnings And Caution

    1. Warnings and caution Make sure to follow the instructions to prevent any danger or property losses. It indicates prohibition. It indicates prohibition of disassembly. Warning Death or serious It indicates prohibition of contact. injury is expected. It indicates dos and don’ts. It indicates that the plug should be pulled out from the socket.
  • Page 4 Install the product in a flat and Pull the plug if the product is If the product generates strange stable place. not used for a long time. sound, make sure to pull the Otherwise, it may not function plug immediately and contact properly. Commax service center.

  • Page 5: Part Names And Functions

    2. Part names and functions Contents Contents Monitor Menu button Speaker SELECT button Talk Button UP button Monitoring button DOWN button No function Adjustment dial for calling sound Microphone Adjustment dial for talk volume Door open button Power switch Interphone button Power input (1 : +, 2 : -) Power indicator Terminal...

  • Page 6: Features And Main Functions

    3. Features and Main Functions 1. Features - COLOR 3.5” TFT-LCD Monitor - Surface Mounted installation type 2. Main Functions - Interphone talk - Unlock 3. System Layout. Note : Only DRC-20CK/DRC-20MC are compatible with CDV-352HD. Other door cameras are not connectable with it.

  • Page 7: Package Contents

    Fixing screw ① Monitor (CDV-352HD) ......1EA ② Wall fixing bracket ......1EA ③...

  • Page 8: Installation Method

    5. Installation Method 1. Installation method of monitor Note - Do not install near magnetic activity, humid temperatures, extreme heating conditions, under direct sunlight as these may damage the condition and performance of the product. - The position of the unit’s body should fit the standard height from the range which is recommended to be from 1450~1500mm.

  • Page 9: Function Description

    6. Wiring 7. Function Description 1. Calling from door station unit 1) Pressing visitor’s call button, the visitor’s image is shown on the screen along with chime sounds & indicating door camera in use as OSD menu on the screen like DOOR1 / DOOR 2) Press talk button ( ) to communicate with a visitor.

  • Page 10: Communication With Interphone

    Video standard can be switched in state of monitoring or talk mode by pressing the buttons on the right side of the CDV-352HD - Press the “MENU” button firstly and “UP/DN” buttons in a row to enter the “video setting mode”.

  • Page 11: Trouble Shooting

    8. Trouble shooting. If you think that the product has trouble, please first check below contents before you ask a repair. Troubles Check Point Actions The power supply is 1. Please connect the ● 1.The power supply power supply cord not on.

  • Page 12: Specifications

    Call Sound From an interphone : Electric Chime. Power Standby : 2 W consumption Operation : (Max.) 10 W Connection A door camera unit to CDV-352HD : 50m /Φ0.65 distance Interphones to CDV-352HD : 30m /Φ0.65 Operating 0 ~+40℃ temperature...
  • Page 13 Memo...
  • Page 14 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com PM07352HD010 Printed In Korea / 2011.03.104...
