513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea
Int'l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133
Web site : www.commax.com
WIDE COLOR VIDEO
Printed In Korea/ 2008.05
DOOR PHONE

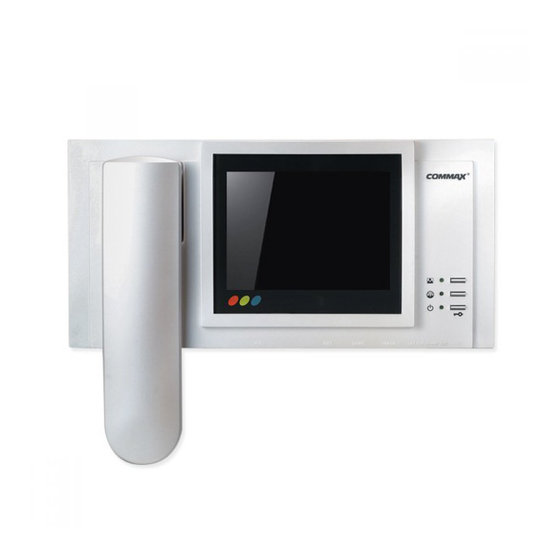

Model No. CDV-50/50D
Thank you for purchasing COMMAX products.
Please carefully read this User's Guide (in particular, precautions for safety)
before using a product and follow instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal
operation of the product.
Advertisement
Table of Contents
Related Manuals for Commax CDV-50
Summary of Contents for Commax CDV-50
- Page 1 DOOR PHONE Model No. CDV-50/50D 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Thank you for purchasing COMMAX products. Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Please carefully read this User’s Guide (in particular, precautions for safety) Web site : www.commax.com before using a product and follow instructions to use a product exactly.
-
Page 2: Introduction
Introduction The model number is located on the bottom and record the serial number in the space provid- ed below. Refer to these numbers whenever you call upon your Commax dealer regarding this product. Model No. Serial No. To prevent fire or shock hazard, do not expose the unit to rain or moisture. -
Page 3: Important Safeguard
Important Safeguards Read Instructions - All safety and Damage Requiring Service - Unplug this operating instructions should be read equipment from the power source and before the unit is operated. refer servicing to qualified service personnel under the following conditions: Retain Instruction - The safety and a. - Page 4 Important Safeguards Lightning - For added protection for this Servicing - Do not attempt to service this product before a lightning storm, or when it product yourself as opening or removing is left unattached and unused for long covers may expose you to dangerous periods of time, unplug it from the wall voltage or other hazards.
-
Page 5: Table Of Contents
Table of Contents Introduction ....................2 Before You Begin Important Safeguard ..................3 Table Contents ..................... 5 Preparations ....................6 Location and function of controls (For Monitor) ........... 7 Location and function of controls (For Camera) ........... 8 Operating Operation Operating And Function Of Control .............. -
Page 6: Preparations
Preparation On Safety ·Operate the unit on free volt AC(100~240V), 50/60Hz · Should any solid object or liquid fall into the cabinet, unplug the unit and have it checked by qualified personnel before operating it any further. · One blade of the plug (for 120V Version, only) is wider than the other for the purpose of safety and will fit into the power outlet only one way. -
Page 7: Front/Side View
Location And Function of Control (For Monitor) Front View 7 8 9 Side View L.E.D Indicator Monitoring Button Interphone Button Release(Open/Close) Button VOLume Adjust Controller BRightness Adjust Controller CONTrast Adjust Controller COLOR Adjust Controller ... -
Page 8: Location And Function Of Controls (For Camera)
Location And Function of Control (For Camera) DRC-4CA DRC-40CS Microphone Screw Hole ➒ Viewing angle Adjustment Press the[CALL] button on the panel to communicate with the visitor. The viewing angle of the camera lens can be C.C.D. Camera Lens adjusted manually using the adjustment knob on Built-in Color 1/4”C.C.D lens the back of the camera... -
Page 9: Operation
Operation Communication Functions 1. Communication between the VDP and the outdoor camera A visitor presses the [CALL] on the door camera. A chime will be heard and the LED light will flicher on the VDP. Pick the handset to communicate with the visitor at the door. (The monitor will turn off automatically after 90 seconds.) ... -
Page 10: Installation(For Monitor)
Installation(For Monitor) For Flush Box Installation For Semi-surface on the wall Installation Wiring Monitor Standard Installation Notice : 1. 4wires and polarity 2. Connect wires1, 2, 3, 4 from the camera to the monitor in the same order 3. The power must be turned off before connecting the monitor and camera. Caution : 1. -
Page 11: Installation (For Camera)
Installation (For Camera) For Flush Box Installation For Semi-surface on the wall Installation Camera Standard Installation(For Height/Up/Down/Horizontal Angular) Notice : If you have questions connection the wires for installation following up, Contact to seller or qualified service personnel before operating. Procaution before Installation •Do not Aim The Camera At The Sun Do not aim the camera at the sun or point it at the sun even if you are not shooting. -
Page 12: Components View
Part List Monitor ..............................1unit Hand set..............................1unit Bracket for Monitor..........................1unit Connect Connector(4P) .........................2unit Fixed screw for monitor..........................1unit Fixed screw for monitor bracket ......................2unit Manual ..............................1unit For DRC-4CA Camera ............................1unit Camera Flush Box ........................1unit Camera Screw .........................2unit Hexagon Lench........................1unit For DRC-40CS Camera ............................1unit Camera Bracket ........................1unit Camera Fixed Screw .......................1unit Fixed Screw for Camera ......................2unit... -
Page 13: Troubleshooting Guide Troubleshooting Guide
Troubleshooting Symptom Possible Cause And Corrections - The power cord is not disconnected. The unit does not turn on. Power - Check the AC outlet for power Power But No - Make sure that there is nothing blocking No picture, good sound Picture the lens of the camera. -
Page 14: Specifications
Specifications Monitor for CDV-50 Camera for DRC-4CA/40CS Power Source Mounting Type AC 100 ~ 240V, Flush Mount Type Picture Tube 5” Color TFT-LCD Mount (DRC-4CA) Power Consumption Wiring 4 Wires (Polarity) Power Source Operating 23 Watts DC 13V (Power Normal 5.5 Watts...
