Installation

Place this player in the flat surface without obstacle to IR sensor in the front panel. Do not
expose it to rain, fog or dusty area. Do not place heavy items over the power cable, HDMI
cable or AV cable. Do not use wet hand or metal to touch the player. Do not use the other
power adapter which is not from the product package.
This device is a SAT>IP player which must work with SAT>IP server. Please install this de-
vice in the same local area network with your SAT>IP server.

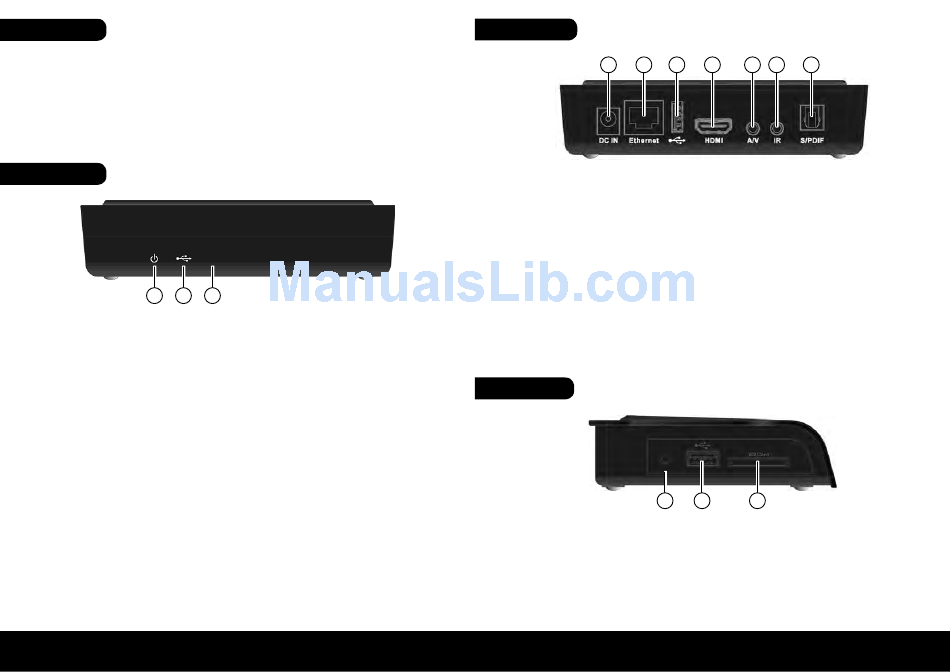

Front panel

1 2 3
1. Power lamp: it lights blue when power on, and lights red in standby mode.
2. USB lamp: it blinks green when USB device is reading.
3. IR sensor: the IR sensor is inside the front panel. Make sure that there are no obstacles
between remote controller and the front panel.
ENGLISH
04

Rear panel

1 2 3
1. DC IN: it connects the DC input of the Power Adapter.
2. Ethernet: connect Ethernet cable for the network function. This device and the
SAT>IP server must be in the same Local Area Network and same network domain, so
this device can watch SAT>IP programs from server. Several functions on this player re-
quire Internet connection, therefore it is recommended that the network environment
passing through the Internet.
3. USB port: insert USB Storage to USB port to browse and playback.
4. HDMI port: this port is to connect with HDMI A/V receiver or HDMI TV set.
5. A/V port: this port is for the Composite video input (yellow) and audio (white & red) of
TV set. If the HDMI is unplugged, this port will output audio/video immediately.
6. IR port: this port is for the IR extender cable. When the bundled IR extender is plugged,
it is enabled and the internal IR receiver is disabled.
7. S/PDIF: this is the optical digital output for audio.

Left panel

1
1. Reserved button: this button is reserved.
2. USB port: Insert USB Storage to USB port to browse and playback.
3. SD Card socket: Insert the SD card to card reader to browse and playback.
ENGLISH
4 5 6 7
2 3
