Summary of Contents for Megasat HD570

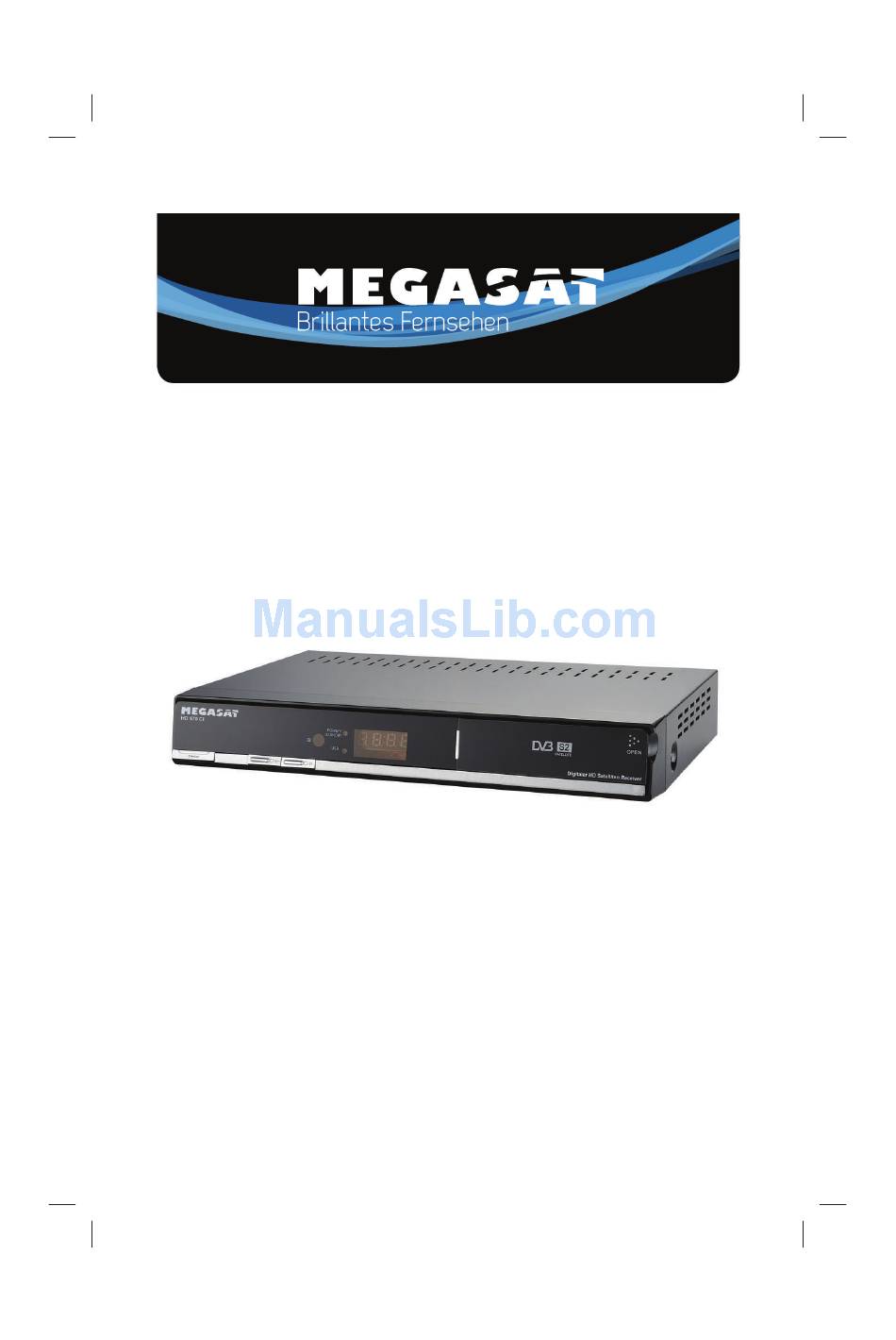

- Page 1 Bedienungsanleitung User Manual Digitaler HD Satelliten Receiver Megasat HD570 Stand: März 2012 V1.0...
- Page 2 Inhalt Sicherheitshinweise…………………………………………….. 3 Vorsichtsmaßnahmen………………………………………….. 4 Zubehör….………………………………………………………….. 4 Vorderansicht……………………………………………………… 5 Rückansicht………………………………………………………… 5 Fernbedienung……………………………………………………. 6 Start……………………………………………………………………7-9 Batterie……………………………………………………………………………. 7 Lebensdauer der Batterien…………………………………………….. 7 Reichweite der Fernbedienung……………………………………….. 7 Vorbereitung……………………………………………………………………. 8 Anschluss an den TV……………………………………………………….. 8 Schnellinstallation……………………………………………… 9 Hauptmenü………………………………………………………… 9 Programmbearbeitung…………………………………………. 10 Installation…………………………………………………………. 11 System Einstellung……………………………………………... 12 Diverses (Werkzeuge)….……………………………………..
-
Page 10: Programme Bearbeiten
Programme bearbeiten Wählen Sie Kanäle im Hauptmenü und drücken Sie [OK]-Taste, um in das Untermenü zu gelangen. Es gibt 4 Optionen zur Auswahl: TV Programmliste Radio Programmliste Alle löschen Aktuelle Programmliste sichern TV Programmliste Bewegen Sie den Cursor auf "TV Programmliste" und drücken Sie [OK]-Taste. Verwenden Sie Taste [CH ] und drücken Sie die [OK]-Taste zur Bestätigung. - Page 11 Installation Wählen Sie die Installation im Hauptmenü und drücken Sie [OK]-Taste, um in das Untermenü zu gelangen. Es gibt 9 Untermenüpunkte: - Antennenverbindung - Satellitenliste - Antenneneinstellung - Einzel-Satelliten Suche - Multi-Satelliten Suche - TP-Liste Antennenverbindung - Feste Antenne - Motorgesteuerte Antenne Satellitenliste Bewegen Sie den Cursor auf "Satellitenliste"...
-
Page 12: System Einstellungen
Multi-Satelliten-Suche - Satellit: Drücken Sie [OK]-Taste, um einen Satelliten zu wählen. - Nur FTA: Ja (Suche in freien Kanälen) / Nein (Suche kostenlose und kostenpflichtige Kanäle) - Programmsuche: TV / Radio / TV + Radio - Netzwerk Suche: JA/NEIN (wird aktiviert, wenn "Scan Mode" im "Preset Scan"- Modus ist) - Scan-Modus: Auto Scan / Preset Scan - Suche: Suche starten. - Page 13 Kindersicherung Standard-Kennwort: 0000 Menu Lock: Ein / Aus. Wenn Sie EIN wählen wird ein Passwort benötigt beim Suchlauf. Channel Lock: Ein / Aus. Das Passwort wird benötigt, um gesperrte Programme zu sehen. Neues Passwort: Neues Passwort mit den Zifferntasten wählen Password bestätigen: Geben Sie das neue Kennwort mit den Zifferntasten ein.
- Page 15 Technische Details Items Features Eingangsfrequenz 950~2150 MHz (C/KuCompatible) Eingangssignal 30dBm IEC169 2, weiblich RF Input Anschluss Eingangs Widerstand QPSK Compatible SCPC & MCPC Demodulation Symbolrate 2~45 Mbit/s Code Rate 1/2, 2/3, 3/4, 5/6, 7/8 ISO/IEC13818-2 MPEG2 MP@ML Video Decotierung 720×576 PAL 720×480 NTSC Video Auflösung Video Eingangsrate...
- Page 16 Fehlerbehebung Fehler Mögliche Ursachen Lösungsvorschläge Vergewissern Sie sich, dass das Das Netzkabel ist nicht Kabel richtig angeschlossen ist. Kein Strom richtig angeschlossen Schalten Sie das Gerät 5-10 min. aus und versuchen Sie es erneut. Die Antenne ist nicht Richten Sie die Antenne richtig aus Es kann keine Suche richtig ausgerichtet durchgeführt werden...
- Page 18 User Manual Digital HD Satellite Receiver Megasat HD570...
-
Page 19: Table Of Contents
Contents Accessories--------------------------------------------------------2 Safety Instructions--------------------------------------------3-4 Precautions-----------------------------------------------------4-5 Features-----------------------------------------------------------5 Front Panel---------------------------------------------------------6 Rear Panel----------------------------------------------------------6 About Remote Control --------------------------------------------7 Start-------------------------------------------------------------8-9 Battery Installation-------------------------------------------------8 Service Life of Batteries-------------------------------------------8 Operation Range of Remote Control-------------------------------8 Fast Installation ---------------------------------------------------9 Advanced Operation--------------------------------------------9-14 Main Menu --------------------------------------------------------9 Edit Channel -----------------------------------------------9-10 Installation-----------------------------------------------10-12 System Setup-------------------------------------------12-13 Tools-----------------------------------------------------13-14 Game-----------------------------------------------------14 Appendix-----------------------------------------------------15-17... -
Page 21: Precautions
CONNECTING TO ANTENNA Disconnect the product from mains before connecting or disconnecting to antenna. Otherwise, it may damage the product and antenna. CONNECTING TO TV SET Unplug the power cord when connecting or disconnecting to TV Set. Otherwise, it may damage the product and antenna EARTHING The antenna cable must be earthed to the antenna system and the Earthing System... -
Page 22: Features
Do not insert fingers or other objects into the product It may damage the product or even hurt human body by touching any internal parts of the product because of high voltage. Do not dismantle the product. Do not stack any object on the product. Keep water and magnetic things away Contact with liquid may cause serious damage, please keep the product away from it. -
Page 24: About Remote Control
About Remote Control Remote control Name Descriptions Switch your device on from Power standby mode. Change HDMI output MODE resolution. Select channel or programming Numeric parameters. Press numeric Buttons button 0 to switch to sleep mode. MENU Enter in setup interface. EXIT Exit from current menu. -
Page 26: Start
Start Fast Installation Connect this unit and other apparatus according to “BASIC CONNECTIONS”. Plug the power cord, press [STANDBY] button no need for first connection to start. Plug the power cord and press [STANDBY] button to start. Press [MENU] button to setup. Use [ / ] buttons to select “Tools” and load factory default. -
Page 27: Installation
1.1 TV Channel List Move cursor to “TV Channel List” and press [OK] button to enter in its setup interface. Use [ / ] buttons and press [OK] button to confirm. Use programmable buttons (which with color) to set up according to screen. Favor button is activated when the favorite channels have been set. - Page 28 2.2 Satellite List Move cursor to “Satellite List” and press [OK] button to enter in its submenu. Use [ / ] buttons to choose satellite. Edit: Press [RED] button to edit satellite. Please operate according to screen. Use [RED] button to shift alpha between capitalized and small. Use [GREEN] button to delete input.
-
Page 29: System Setup
2.4 Single Satellite Search Satellite: Press [OK] button to choose satellite. FTA Only: Yes(Search the free channels only)/No (Search both free and paid channels) Scan Channel: TV Channel/Radio/TV + Radio Network Search: Yes/No (It is activated when “Scan Mode” is in “Preset Scan” mode.) Scan Mode: Auto Scan/Preset Scan Search: Start search. -
Page 30: Tools
3.4 Local Time Setting GMT Usage GMT Offset Summer Time Date Time 3.5 Timer Setting Timer Mode: once/daily/weekly/monthly/off. Timer Service Wakeup Channel Wakeup Date On Time Duration Note: Wake up function is not available in Standby mode. 3.6 Parental Lock Default password: 0000 Menu Lock: On/Off. -
Page 31: Game
4.3 Upgrade by USB Insert flash drive and load file named with “all*.abs”. Enter in “Tools” menu and select “Upgrade by USB”, press OK button to start upgrade. Select “ALL CODE”, the upgrade file will be found automatically. Select “Start” to load the upgrade file and start upgrade. Notes: 1. -
Page 32: Appendix
Appendix Specifications Items Features Input Frequency 950~2150 MHz (C/Ku Compatible) Range High 30dBm Frequency Input Signal Level Tuner RF Input Connector IEC169 2, Female Input Impedance Demodulation QPSK Compatible SCPC & MCPC Demodulation Symbol Rate 2~45 Mbit/s Mode Code Rate 1/2, 2/3, 3/4, 5/6, 7/8 ISO/IEC 13818-2 MPEG2 MP@ML ISO/IEC... -
Page 33: Troubleshooting
Troubleshooting Look through the trouble shooting information. Some simple checks or minor adjustment of the unit on your part may help resolve the problems. If the problems prove to beyond your capability, you had better hand it over to a professional qualified technician. The integrated circuits are easily breakdown by static. - Page 34 The unit is in a mute status Cancel the mute No sound at all Volume set at a too low level Augment the volume Cable connected incorrectly Connect the cable correctly Correct output-cable There might be a short circuit connection, and turn on it. sound chance In mute status...
- Page 35 MEGASAT Werke GmbH, Industriestraße 4a, 97618 Niederlauer Web: www.megasat.tv Mail: info@megasat.tv...
