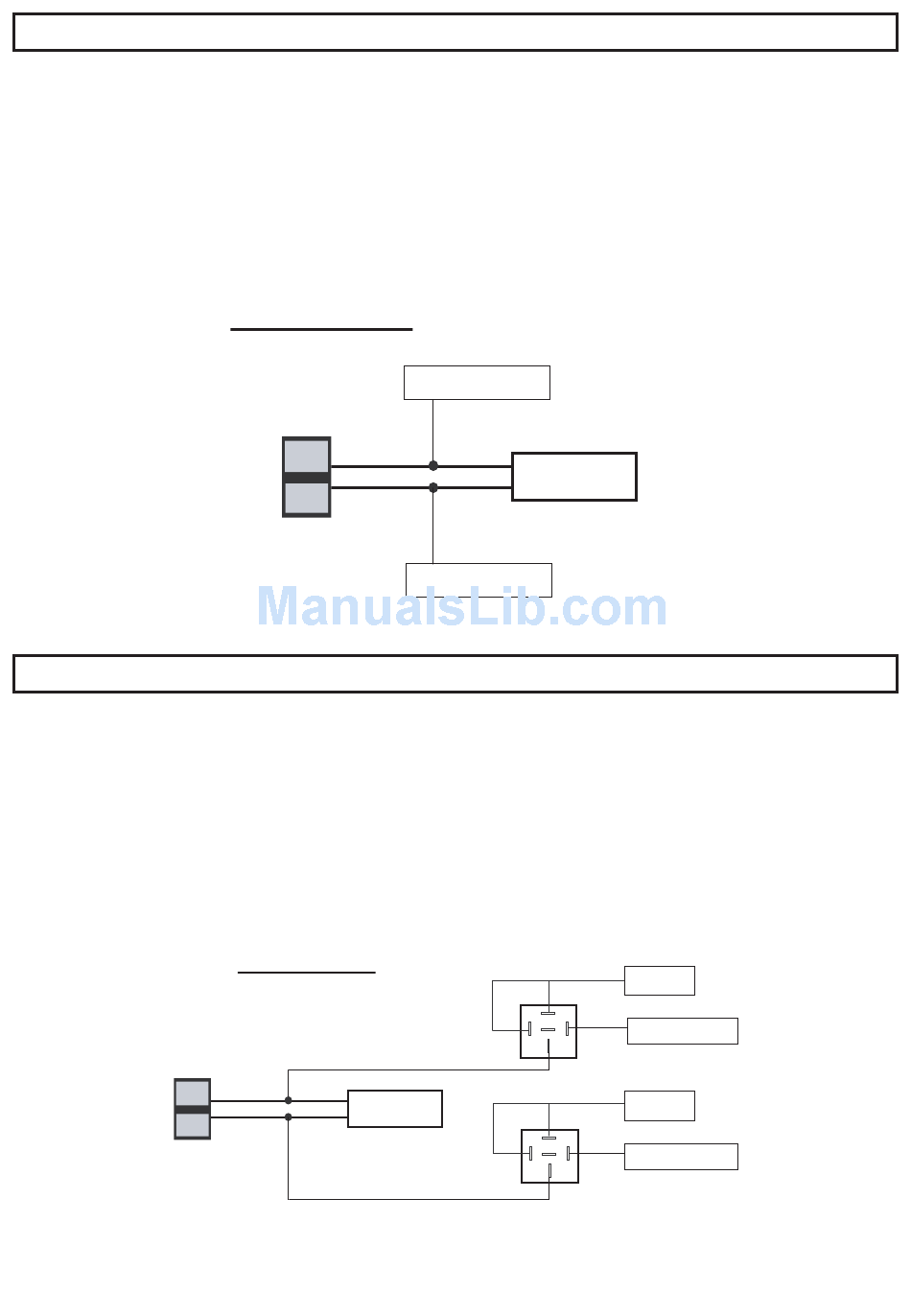

Negative Switching Locks
All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle's lock / unlock
switch.
Verification: These wires will register ground when the Lock and Unlock
switches are activated.
Connect the GREEN and BLUE wires shown in the diagram below.
Positive Switching Locks
All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle's lock / unlock
switch.
Verification: These wires will register positive voltage when the Lock and
Unlock switches are activated.
Connect the GREEN and BLUE wires shown in the diagram below.
12
Negative Locks:
Lock
Unlock
Positive Locks:
Lock
Unlock
GREEN ( - ) Lock Output
Vehicle Door Lock
BLUE ( - ) Unlock Output
86
Vehicle Door Lock
Control Relays
86
Control Relays
Fused +12 Volt
Battery Souce
87
87a
GREEN ( - ) Lock Output
85
30
Fused +12 Volt
Battery Souce
87
87a
BLUE ( - ) Unlock Output
85
30
ca5554 Install rev A
