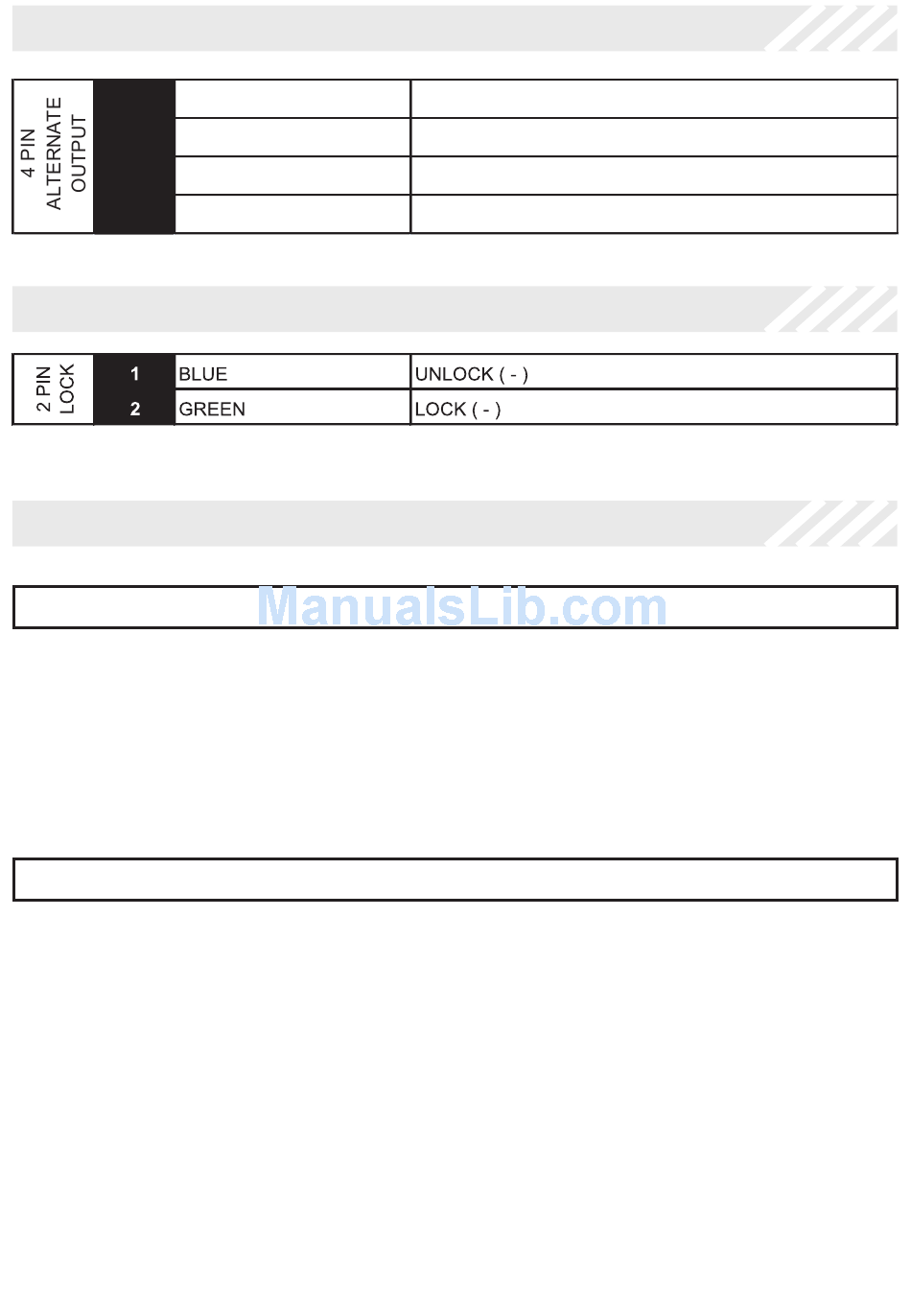

Pin Alternate Harness; Pin Main Harness - Code Alarm ca5554 PROFESSIONAL SERIES Installation Manual

4 Pin Alternate Harness

1
2
3
4
2 Pin Door Lock Harness

11 Pin Main Harness

1 GRAY/RED
Locate the vehicle's parking brake wire.
Verification: This wire will register ground when the vehicle's PARKING
BRAKE is engaged.
NOTE: The following connection is required for Manual Transmission Mode.
2 PURPLE
Locate the vehicle's dome light or door pin switch wire.
Verification: This wire will register positive voltage (POS) when the door is
opened and the interior light is on. This wire will
register ground or "0" Volts when the door is closed and the interior light is
off.
Connect the PURPLE wire to the vehicle's positive door input wire(s).
NOTE: Certain vehicles may require multiple connections. Refer to vehicle
application guide.
2014 Voxx Electronics Corporation. All rights reserved.
BLACK/YELLOW
GREEN/WHITE
LT BLUE
LT GREEN/BLACK
PULSE DURING CRANK ( - )
PULSE AFTER SHUTDOWN ( - )
FACTORY ARM / PULSE AFTER START ( - )
FACTORY DISARM / PULSE BEFORE START ( - )
PARKING BRAKE INPUT ( - )
DOOR TRIGGER INPUT ( + )
5
