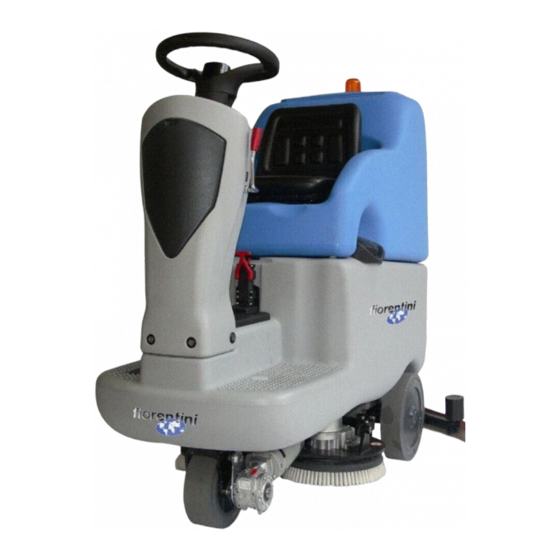

- Page 1 C110 55B SCRUBBER DRYER OPERATOR MANUAL Clemas & Co. Unit 5 Ashchurch Business Centre, Alexandra Way, Tewkesbury, Gloucestershire, GL20 8NB. Tel: 01684 850777 Fax: 01684 850707 Email: info@clemas.co.uk Web: www.clemas.co.uk...
-
Page 2: Table Of Contents
Congratulations for your choice! FIORENTINI S.p.A. thanking you for the preference to our product would like to remind you that FIORENTINI’s S.p.A. production covers manufacture and marketing of industrial cleaning machines and is currently a leading company in this sector. Our tradition and competence guarantee technical quality of your choice;... -
Page 3: Conformity Declaration
MAINTENANCE 5.1. Periodical maintenance……………..……………....…..…..……………….. 5.2. Batteries maintenance…………………………………………………………………….. 5.2.1. Hydrometrics.…………………………………………………………………………….. 5.2.2. Water filling up …………………………………………………………………………... 5.2.3. Charge limits……………………………………………………………………………… 5.2.4. Off duty or inactive batteries …………………………………………………………... 5.2.5. Battery charger technical features…………………………………………………….. 5.2.6. Batteries disposal………………………………………………………………………… 5.3. Suction motor maintenance……………………………………………………………….. 5.4. Electric equipment control………………………………………………………………... 5.5. -
Page 4: General Information
GENERAL INFORMATION Ecosmart Rev. 000 29/11/2012 6/38... -
Page 5: Machine Features And Technical Data
MACHINE FEATURES AND TECHNICAL DATA Ecosmart MACHINE FEATURES AND TECHNICAL DATA 2.1. IDENTIFYING THE MACHINE A silver label is sticked on the protection case of the steering column and clearly shows the data referring to the “CE” marking. PICTURE N° 2.1 The label has never to be removed and should always be kept readable. - Page 6 MACHINE FEATURES AND TECHNICAL DATA Ecosmart The structure of the machine consists of an iron frame with cataphoresis treatment and painting, so as to avoid oxidation which could compromise the reliability of the machine itself. The main components of the machine are: Iron frame with cataphoresis and painting;...
-
Page 7: Technical Data
MACHINE FEATURES AND TECHNICAL DATA Ecosmart 2.3. TECHNICAL DATA SPECIFICATIONS ECOSMART - 55 ECOSMART - 65 Alimentation 48 V (4 x 12 V – 85 Amp/h) (C5) Motor 48V 1x400W + Gear 1:25 Drive system Scrubbing width 540 mm 680 mm Squeegee width 775 mm 870 mm... -
Page 8: Safety
SAFETY Ecosmart 3. SAFETY 3.1. RIGHT USE OF THE MACHINE This machine is a scrubbing machine and it has been designed and built to clean in an industrial place. It can work on flat surfaces or on sloping surfaces not higher than 10% and with a speed not higher than 3 km/h while the machine is reversing. -
Page 9: Operator Qualify
SAFETY Ecosmart 3.4. OPERATOR’S QUALIFICATIONS The scheme below sumarizes the operator’s qualifications requested for each kind of operation. OPERATION OPERATOR’S QUALIFICATIONS Driving/control of the machine Trained operator Installation/ disinstallation Fiorentini technician Fiorentini technician Mechanical parts maintenance Fiorentini technician Electric parts maintenance Cleaning maintenance Trained operator Dismantling and demolition... -
Page 10: Safety Systems
SAFETY Ecosmart SAFETY SYSTEMS The machine is equipped with the following safety systems: Socket (picture 4.5), the same socket used for the battery charger. In case of emergency, this socket must be taken away from the plug by means of its handle. The operator must be trained about safety rules. - Page 11 SAFETY Ecosmart The accelerator potentiometer is not working. The machine is 05 ACCELERATOR PEDAL blocked. Reset to re-start. After restarting, until the pedal of the accelerator is pushed again and the fault condition persists, the FAULT rest of the machine starts working again. Intervenes when on start-up the advancement pedal is pushed and the panel switches on.
- Page 12 SAFETY Ecosmart The stationary brake or emergency brake is inserted. Traction is forbidden. 16 BRAKE INSERTED The rest of the machine is working. When the brake is released the message disappears. Only on the retracting squeegee version. If the squeegee crashes the “belly button”...
-
Page 13: Other Dangers
SAFETY Ecosmart OTHER DANGERS FIORENTINI S.p.A. analyzes starting from the design of the machine - all the dangers that can occur while the machine is operating in order to prevent or at least lower the operator’s accidents. Thanks to a series of signals on the machine the operator can avoid many risks that can occur. -
Page 14: Safety Signals
SAFETY Ecosmart 3.9. SAFETY SIGNALS The safety signs including signs of: Dangers’ signals are triangular with black DANGERS pictures on a yellow background Prohibitions’ signals are round with black PROHIBITIONS pictures and a red stripe What is it? This signal forbids to remove the protection of pieces in movement. During the installation or the maintenance make sure that the ignition key is not in the dashboard before removing the mobile protections. - Page 15 SAFETY Ecosmart Explosion danger: it may occur while recharging the batteries because What is it? of hydrogen spread. During the batteries recharge, please place the machine under a What to do suction chemney or in a ventilated area and keep it away from heat and corrosive substances.
-
Page 16: Starting And Use Instructions
STARTING AND USE INSTRUCTIONS Ecosmart STARTING AND USE INSTRUCTIONS 4.1. TRANSPORT AND HANDLING The machine is delivered to the purchaser in a proper package (see picture 4.1 below). A black arrow on the package indicates the barycentre. This arrow must be in the middle of the elevator or transpallet forks. The package must be carefully handled. -
Page 17: Storage
STARTING AND USE INSTRUCTIONS Ecosmart The bands used for lifting the machine up must have the same loading capacity as the machine load. Handling operations must be done without causing a loss of stability of the machine. Otherwise, the machine can be damaged or the operator can do in danger. -
Page 18: Installation
STARTING AND USE INSTRUCTIONS Ecosmart INSTALLATION 4.5. Installation must be carried out by authorized personnel after reading this manual. BATTERIES INSTALLATION 4.5.1 To install the batteries apply the following instructions: Lift the recovery tank up in order to reach the batteries room (see detail 1 in picture 4.4); Install the batteries in their room (see detail 2 picture 4.4.) and make sure that the cases of the batteries are not broken;... -
Page 19: Control Devices
STARTING AND USE INSTRUCTIONS Ecosmart 4.6. CONTROL DEVICE 4.6.1. DASHBOARD The dashboard is made of a series of switches that active or disactive all the machine functions. The function of each switch is shown by a picture . PICTURE N° 4.6 N°... - Page 20 STARTING AND USE INSTRUCTIONS Ecosmart Below are the symbols of the dashboard with a small description next to on the applicable function: UP/ DOWN BRUSH MAIN SWITCH SWITCH VACUUM ADJUSTMENT VACUUM ON OFF SPEED ADJUSTMENT FORWARD BATTERY INDICATOR REVERSE Rev. 000 29/11/2012 22/38...
-
Page 21: Functioning
STARTING AND USE INSTRUCTIONS Ecosmart 4.7. FUNCTIONING The washing operation is very delicate as it is needed, based on experience, to judge correctly the type of brush to use, good choice of detergent and whether or not a double cleaning action. To perform the washing operation, you must click on the symbol of the power machine (see Fig.4.6 part.8): automatically light up the brushes (the solenoid is activated and if 'any), will subside' brushes through the plate jack and will also turn on the vacuum. -
Page 22: Functions Levers
STARTING AND USE INSTRUCTIONS Ecosmart 4.7.3 FUNCTIONS LEVER Advancement lever (detail 1 fig.4.9). By pressing the pedal you obtain forward or back operation of the machine according to the setting chosen on the commands dashboard. Stationary brake lever (detail 2 fig.4.9). When the machine is stopped, the brake must be activated: to unblock it bring the lever forward. -
Page 23: Squeegee Adjustment
STARTING AND USE INSTRUCTIONS Ecosmart 4.7.4 SQUEEGEE ADJUSTMENT To guarantee perfect drying, it is essential for the squeegee to be perfectly adjusted. This type of squeegee has the characteristics of gathering water well towards the suction tube, but is very sensitive to parallelism with the ground. -
Page 24: Water Drainage
STARTING AND USE INSTRUCTIONS Ecosmart 4.7.5 WATER DRAINAGE The floor washer is equipped with a water drainage tube and a squeegee tube: (figure 4.14): Recovery tank drainage tube (detail 1 figure 4.14); Plug for inspection porthole and recovery tank cleaning (detail 2 figure 4.14); Squeegee tube (detail 3 figure 4.15). -
Page 25: Brushes Replacement
STARTING AND USE INSTRUCTIONS Ecosmart 4.7.6 BRUSHES REPLACEMENT To proceed with replacing the brushes, you must do as follows: Remove the key from the commands dashboard to avoid accidental switch on. Replace the brush by rotating it (detail 1 fig. 4.15) and then removing it (detail 2 fig. 4.15). To insert a new brush, position it under the flange and subsequently lift it until it is inserted in the aforementioned flange (detail 3 fig.4.15);... -
Page 26: Squeegee Blades Replacement
STARTING AND USE INSTRUCTIONS Ecosmart 4.7.7 SQUEEGEE BLADE REPLACEMENT The squeegee blades (figure 4.18) must be replaced when the contact edge is abrasive: in fact, edge perfection is essential for perfect drying. To replace the blades, do as follows: Remove the squeegee from the machine and position it on a bench (fig.4.17 detail 1). Remove the knobs on both the front and back part of the squeegee unit (fig.4.17 detail 2), remove the strips (fig.4.17 detail 3) and remove the worn blades (fig.4.17 detail 4) Insert the new blades and proceed with the inverse operations. - Page 27 STARTING AND USE INSTRUCTIONS Ecosmart PICTURE N° 4.17 Rev. 000 29/11/2012 29/38...
-
Page 28: Maintenance
MAINTENANCE Ecosmart 5. MAINTENANCE 5.1. PERIODICAL MAINTENANCE A periodical maintenance is very important. Please write down in the format you find below all the interventions done on the machine. • Trained personnel only can service the machine and especially electric and electromechanical parts by means of suitable tools and equipments. -
Page 29: Hydrometrics
MAINTENANCE Ecosmart 5.2.1 HYDROMETRY In order to check the batteries hydrometry the operator has to follow the instructions below: By means of a hydrometre draw a small quantity of electrolyte so that the floater reaches the surface; Make sure that the floater inside the hydrometre is not blocked; For a new measurement, after having filled the batteries with distilled water, the operator has to wait until the liquid inside each battery becomes homogeneous. -
Page 30: Batteries Disposal
MAINTENANCE Ecosmart 5.2.6 BATTERIES DISPOSAL The batteries are hazardous waste "toxic and hazardous." For disposal must be assigned exclusively to collectors possess specific authorization whose existence must be verified by the bestower. If unable to attend, the "temporary storage" must comply with the laws, mainly: Be in possession of temporary storage Store in sealed plastic containers of a capacity not lower than the volume of the electrolyte contained in the batteries, or in any case in such a way that the container cannot enter the rainwater... - Page 31 MAINTENANCE Ecosmart PICTURE N° 5.11 Rev. 000 29/11/2012 33/38...
-
Page 32: Electric Equipment Control
MAINTENANCE Ecosmart ELECTRIC EQUIPMENT CONTROL It is very important to check the electric system up every two years. Disconnected cables or burnt cables must be immediately replaced. If any intervention is necessary on the electrical system it must be conducted by a professional technician.
