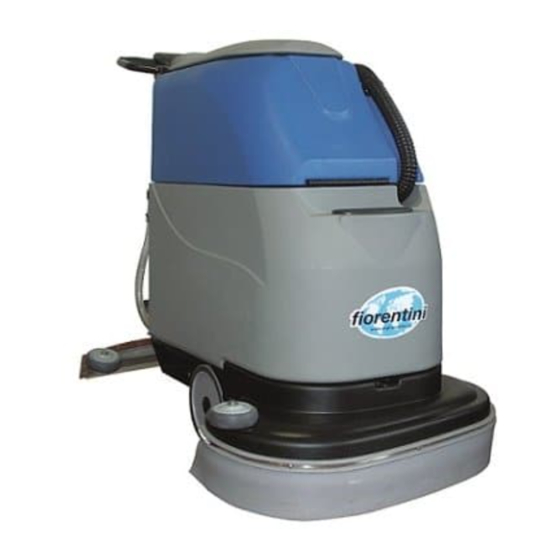

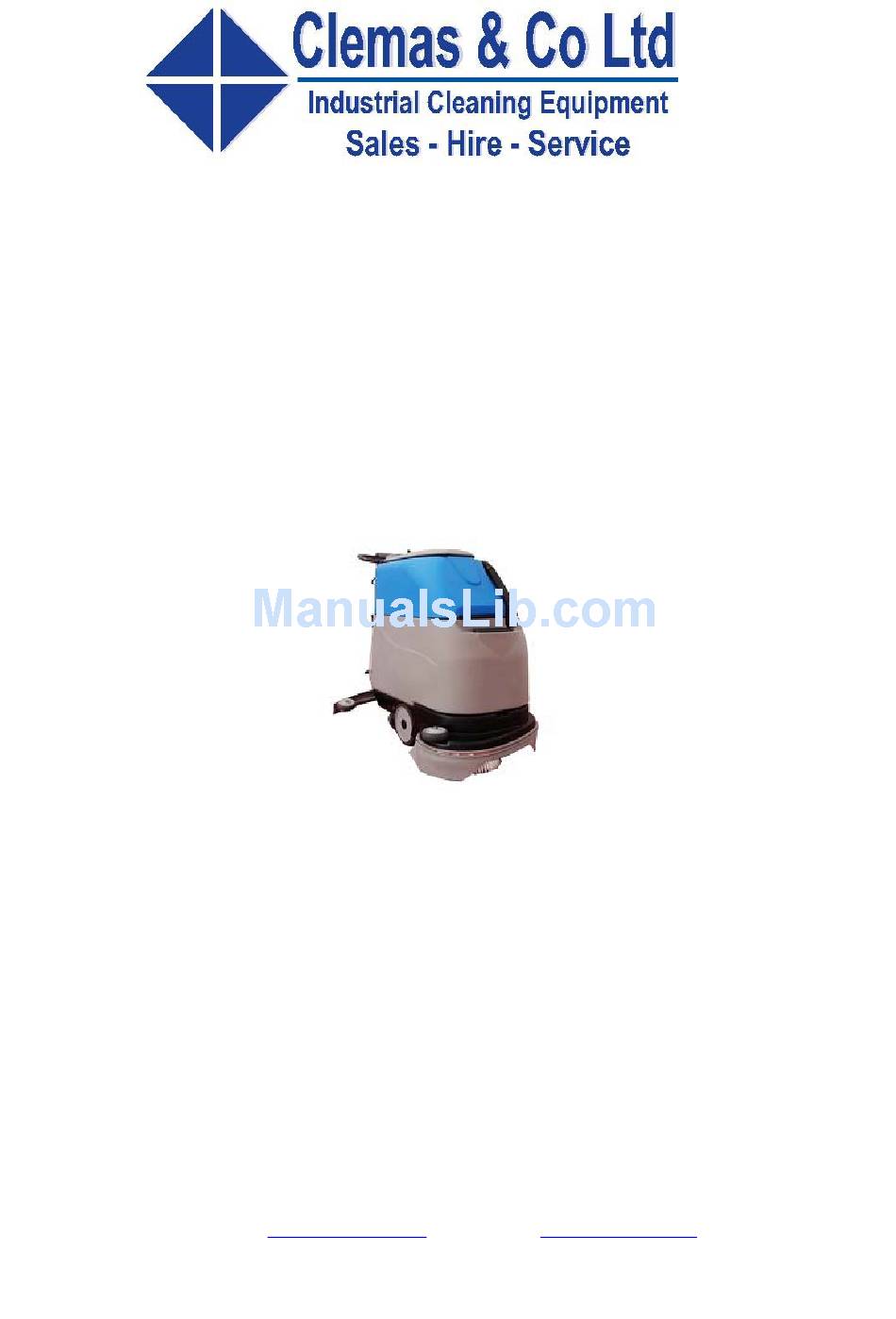

- Page 1 C50 50B SCRUBBER DRYER OPERATOR MANUAL Clemas & Co. Unit 5 Ashchurch Business Centre, Alexandra Way, Tewkesbury, Gloucestershire, GL20 8NB. Tel: 01684 850777 Fax: 01684 850707 Email: info@clemas.co.uk Web: www.clemas.co.uk...
- Page 2 Congratulations for your choice! FIORENTINI S.p.A. thanking you for the preference to our product, would like to remind you that FIORENTINI’s S.p.A. production covers manufacture and marketing of industrial cleaning machines and is currently a Leading industry in this sector . Our tradition and competence guarantee technical quality of your choice;...
- Page 3 4.7.1. Start and preparation machine………………………………………………………... 4.7.2. Choise of detergent…………………………………………………………………….. 2 2 2 2 6 6 6 6 4.7.3. Regulation of driving position…………………………………………………………. 2 2 2 2 7 7 7 7 4.7.4. Rudder pedal functions ……..………………………………………………………… 2 2 2 2 5 5 5 5 4.7.5.
-
Page 4: General Information
GENERAL INFORMATION GIAMPY APPLICATION MODES In order to establish anomalies causes, so that warranty could be applied, is necessary that defective components must be sent to FIORENTINI. Repairing or substituting works under warranty will be, by FIORENTINI’s opinion, made in its own workshop, or by third party on place. Works on place, are supplied with customer’s energy sources and exceptional equipment to repairing if necessary. - Page 5 GENERAL INFORMATION GIAMPY 15/02/2012 Rev. 00 Pag. 7/43...
- Page 6 GENERAL INFORMATION GIAMPY 15/02/2012 Rev. 00 Pag. 8/43...
-
Page 7: Support Features And Specifications
SUPPORT FEATURES AND SPECIFICATIONS GIAMPY 2. SUPPORT FEATURES AND SPECIFICATIONS 2.1. IDENTIFICATION The autoscrubber machine can be identified with an adhesive label put on the protection carter in the backside of the machine which will clearly report the data referring to “CE” marking. MADE Ing. - Page 8 SUPPORT FEATURES AND SPECIFICATIONS GIAMPY The bearing structure of the machine is made of a steel zinc-plated chassis or in stainless steel, so that to avoid oxidation problems which could compromise the reliability of the machine. The main components of the machine are: steel zinc-plated chassis or stainless steel;...
- Page 9 SUPPORT FEATURES AND SPECIFICATIONS GIAMPY 2.3. TECHNICAL DESCRIPTION VERSION ELECTRIC AND ELETTRIC TRACTION GIAMPY20 : GIAMPY20E GIAMPY20ET DIMENSIONAL CHARACTERISTICS LENGHT 1000 mm WIDTH 550 mm HIGHT 1080 mm SCRUBBING BRUSH N° 1 Ø500 mm SCRUBBING WIDTH 500 mm SQUEEGEE WIDTH 750 mm DRIVE WALK-BEHIND...
- Page 10 SUPPORT FEATURES AND SPECIFICATIONS GIAMPY BATTERY VERSION GIAMPY20/24: GIAMPY20B GIAMPY24B DIMENSIONAL CHARACTERISTICS LENGHT 1000 mm 1300 mm WIDTH 550 mm 710 mm HIGHT 1080 mm 1040 mm SCRUBBING BRUSHES N° 1 x Ø 500 mm N° 2 x Ø 305 mm SCRUBBING WIDTH 500 mm 610 mm...
- Page 11 SUPPORT FEATURES AND SPECIFICATIONS GIAMPY BATTERY VERSION GIAMPY22 WITH 1 OR 2 BRUSHES: GIAMPY22/1 GIAMPY22/2 DIMENSIONAL CHARACTERISTICS LENGHT 1350 mm 1300 mm WIDTH 595 mm 815 mm HIGHT 1040 mm SCRUBBING BRUSHES N° 1 x Ø 550 mm N° 2 x Ø 285 mm SCRUBBING WIDTH 550 mm 550 mm...
- Page 12 SUPPORT FEATURES AND SPECIFICATIONS GIAMPY VERSION BATTERY GIAMPY22 WITH CYLINDRICAL BRUSHES: GIAMPY22 CILIN.BRUSHES DIMENSIONAL CHARACTERISTICS LENGHT 1180 mm WIDTH 810 mm HIGHT 1080 mm N° 2 cylindrical brushes SCRUBBING BRUSHES Ø 110 mm L=500 mm SCRUBBING WIDTH 500 mm SQUEEGEE WIDTH 750 mm DRIVE WALK-BEHIND...
-
Page 13: Incorrect Use
SAFETY GIAMPY 3. SAFETY 3.1. CORRECT USE The machine is a scrubbing machine and has been studied and manufactured to be used to clean flat floors or with maximum slop of 5%.. 3.2. INCORRECT USE Not authorized operator uses; Not regular floors cleaning; Cleaning of surfaces with more than 5% slope;... -
Page 14: Operator Qualification
SAFETY GIAMPY 3.4. OPERATOR QUALIFICATION Follow the request operator qualification for different uses. OPERATION TYPE OPERATOR QUALIFICATION Use /Inspection Taught operator Installation / disinstallation Specialized technician Mechanical parts maintenance Specialized technician Electrical parts maintenance Specialized technician Ordinary maintenance Taught operator Dismantling and demolition Specialized technician Use /Inspection... -
Page 15: Safety Devices
SAFETY GIAMPY SAFETY DEVICES This machine is provided of the following safety systems. Electric plug (picture 3.1), used similarly for the battery charger. In case of emergency, it can be kept away from the plug acting on the handle. Before using the machine, the operator must know the safety system use, in such a way as in case of necessity it can act automatically. -
Page 16: Safety Signals
SAFETY GIAMPY Don’t use the machine to clean up areas exceeding 5% of sloping or presenting holes, and depressions which might compromise the stability of the machine. FIORENTINI decline every responsibility for accidents to persons or things using the machine on surfaces that can compromise the stability of the same one. - Page 17 SAFETY GIAMPY This signal shows explosion dangers due to the hydrogen released in What is it ? charging the accumulators. During the battery charging we recommend to place the machine in a What to do ? suction chimney or in an airy zone, far from heat sources and corrosive environments.
-
Page 18: Instructions For Starting And Use
INSTRUCTIONS FOR STARTING AND USE GIAMPY INSTRUCTIONS FOR STARTING AND USE 4.1. TRANSPORT AND HANDLING This autoscrubber is delivered to the purchaser in a special package, which features are well showed in picture 4.1, completely assembled. The package shows the barycentre position indicated with a black arrow. The forks of the truck or transpallet must be placed in such a way as the black arrow is at the center of them. -
Page 19: Loading Diagram
INSTRUCTIONS FOR STARTING AND USE GIAMPY Bands to be used must be suitable for the effective loading. Operations must be executed slowly avoiding oscillations or upsetting. The incorrect way of operatinG can damage the support or expose to dangers. Machine dimensions and mass are explained at point 2.3. We strongly recommend authorized personnel for lifting operations. -
Page 20: Batteries Installation
INSTRUCTIONS FOR STARTING AND USE GIAMPY 4.5. INSTALLATION The installation must be done by authorized personnel after reading this manual. 4.5.1 BATTERIES INSTALLATION To install the batteries follow the instructions as below : Raise up the battery-cover chain guard (picture 4.4); install the batteries in the suitable slot as showed in picture 4.4 being sure that no breakings are in the battery cases;... - Page 21 INSTRUCTIONS FOR STARTING AND USE GIAMPY To install the battery charger: In the rear part of the machine, there is a room for the battery charger. To reach it, you have to remove the screws which are fixing the cover to the electric system and take it away. Remove the cover to reach the battery charger PICTURE N°...
-
Page 22: Control Devices
CONTROL DEVICES GIAMPY 4.6. CONTROL DEVICES 4.6.1. CONTROL BRIDGE (ELECTRIC VERSION) The control bridge is set up with some interrupters that start/stop every function of the machine. Every interrupters has a pictogram showing, without errors, related functions. In picture 4.6 is showed the control bridge, while the schedule shows every switch functioning. - Page 23 CONTROL DEVICES GIAMPY 4.6.1. CONTROL BRIDGE (BATTERY VERSION) The control bridge is set up with some interrupters that start/stop every function of the machine. Every interrupters has a pictogram showing, without errors, related functions. In picture 4.6.1 is showed the control bridge, while the schedule shows every switch functioning.
- Page 24 FUNCTIONING GIAMPY 4.7. FUNCTIONING The scrubbing operation is too delicate being necessary, by experience, to value correctly the kind of brush to be used, the necessity or not for a double scrubbing action, the better choice of the detergent. if floors are too dirty, we recommend a double scrubbing action.
- Page 25 FUNCTIONING GIAMPY 4.7.2 CHOISE OF DETERGENT For a good floor cleaning is necessary to use the right detergent, not aggressive and so damaging. It’s suitable to use a controlled foam detergent, or an additive antifoam, to avoid damages to the suction motor, whether not possible to get these products, to avoid foam, it’s easy to use some normal vinegar, pouring a quantity of 50 cc inside the recovery tank before scrubbing.
- Page 26 FUNCTIONING GIAMPY .7.4 RUDDER PEDALS FUNCTIONS This machine is equipped with different levers and pedals: traction drive lever (part 1 Figure 4.9). The machine has a red switch for forward and reverse lid placed on top of the handle, before you pull the lever to pay attention to the positioning of the switch. The lifting brush lever activates all the moving parts of the machine.
- Page 27 FUNCTIONING GIAMPY 4.7.5 REGULATION OF THE DETERGENT SOLUTION The quantity of detergent solution during the scrubbing operation can be easily regulated by a lever placed in the back-left side of the machine (picture 4.10 particular 1) PICTURE N° 4.10 N.B.: if it is necessary to set the regulation of water quantity make sure that the ignition key is disconnected to avoid casual starting.
-
Page 28: Water Discharge
FUNCTIONING GIAMPY 4.7.7 WATER DISCHARGE This autoscrubber machine is equipped with two water discharge pipes (picture 4.15): solution tank drain hose (particular 1 picture 4.13) suction pipe (particular 2 picture 4.12). Moreover the machine is complete with a flexible pipe (detail 3 picture 4.13) which sucks the dirty water and a porthole cleaning inspection of the tank solution (detail 4.13). -
Page 29: Brush Replacement
FUNCTIONING GIAMPY 4.7.8 BRUSH REPLACEMENT With one brush version To substitute the brushes do as it follows: Remove the ignition key to avoid casual starting. Empty both recoveries of the machine. Lift up the machine. Release the brushes pulling them to the bottom. To insert a new brush is necessary to place it underneath the plate, then pushing it on. - Page 30 FUNCTIONING GIAMPY Cylindrical brushes version The operator has to follow the instructions below to replace the brushes: Take the ignition key away from the dashboard in order to avoid a casual starting of the machine; Remove the protective cover (detail 1 in picture 4.17) plate by unscrewing the three screws detail 2 in picture 4.17).
-
Page 31: Squeegee Blades Replacement
FUNCTIONING GIAMPY BRUSHES BELT REGULATION AND REPLACEMENT Take the ignition key away from the dashboard in order to avoid a casual starting of the machine; Uscrew the four screws and remove the plastic case (detail 1 in picture 4.20); Tighten the nut of the belt (detail 2 in picture 4.20) fixed on the eye in order to increase the spring strength which regulates the belt (see detail 3 in picture 4.20);... - Page 32 FUNCTIONING GIAMPY 4.7.10 BRUSH PRESSURE REGULATION When the machine is scrubbing, it is possible to adjust the brush height from the ground, in order to vary its pressure on the floor. Rotating the knob anti-clockwise (particular 1 fig. 4.22) the pressure increases. Rotating it clockwise the pressure decreases.
-
Page 33: Maintenance Table
MAINTENANCE GIAMPY 5. MAINTENANCE 5.1. MAINTENANCE TABLE To keep a good efficiency of this autoscrubber machine and grant a good reliability during the warranty period, is essential to keep a periodic maintenance using the table reported in this manual. • Authorized personnel only can service this machine, particularly for electrical and electromechanical parts using suitable tools and equipment for every intervention •... - Page 34 MAINTENANCE GIAMPY 5.2.1 HYDROMETRY Hydrometry can be made with batteries under charge with a densimeter. Do as it follows : Put the gun densimeter and take a quantity of electrolyte sufficient to push up the floating; Keep care the top of it doesn’t touch the rubber or the glass walls. For a measure of density, after filling up with distilled water, density has to be uniform in the box.
-
Page 35: Maintenance Of Suction Motor
MAINTENANCE GIAMPY MAINTENANCE OF SUCTION MOTOR The suction motor must be efficient and cleaned. Every six months check the brushes and if necessary replace them . Maintenance of suction motor needs the following operations : eeeping away the key from the dashboard release the motor hooks and disconnect the plug. epty the recovery tank. - Page 36 MAINTENANCE GIAMPY 5.3 ELECTRICAL EQUIPMENT CHECKING The electrical system must be checked every two years. Possible defects, such as connections off and burnt cables, must be suddenly replaced. All intervention on the electrical system must be done by a technician. All maintenance or repair out of the ordinary maintenance must be done with personnel authorized only by FIORENTINI.
