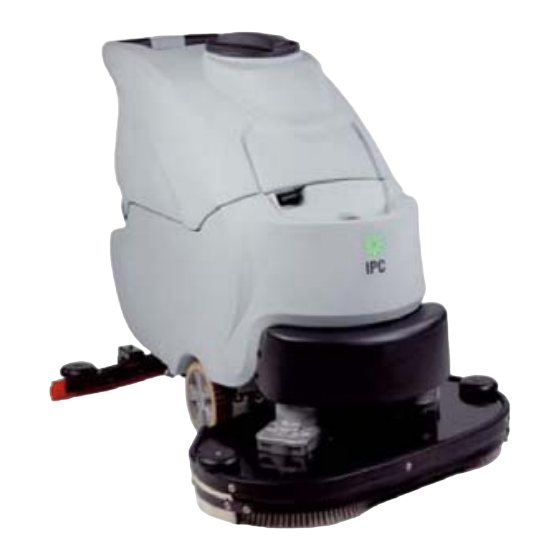

CT90
SCRUBBER DRYER
OPERATOR MANUAL
Clemas & Co. Unit 5 Ashchurch Business Centre, Alexandra Way, Tewkesbury,
Gloucestershire, GL20 8NB.
Tel: 01684 850777
Fax: 01684 850707
Email:
info@clemas.co.uk
Web:
www.clemas.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT90 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clemas & Co CT90

Summary of Contents for Clemas & Co CT90

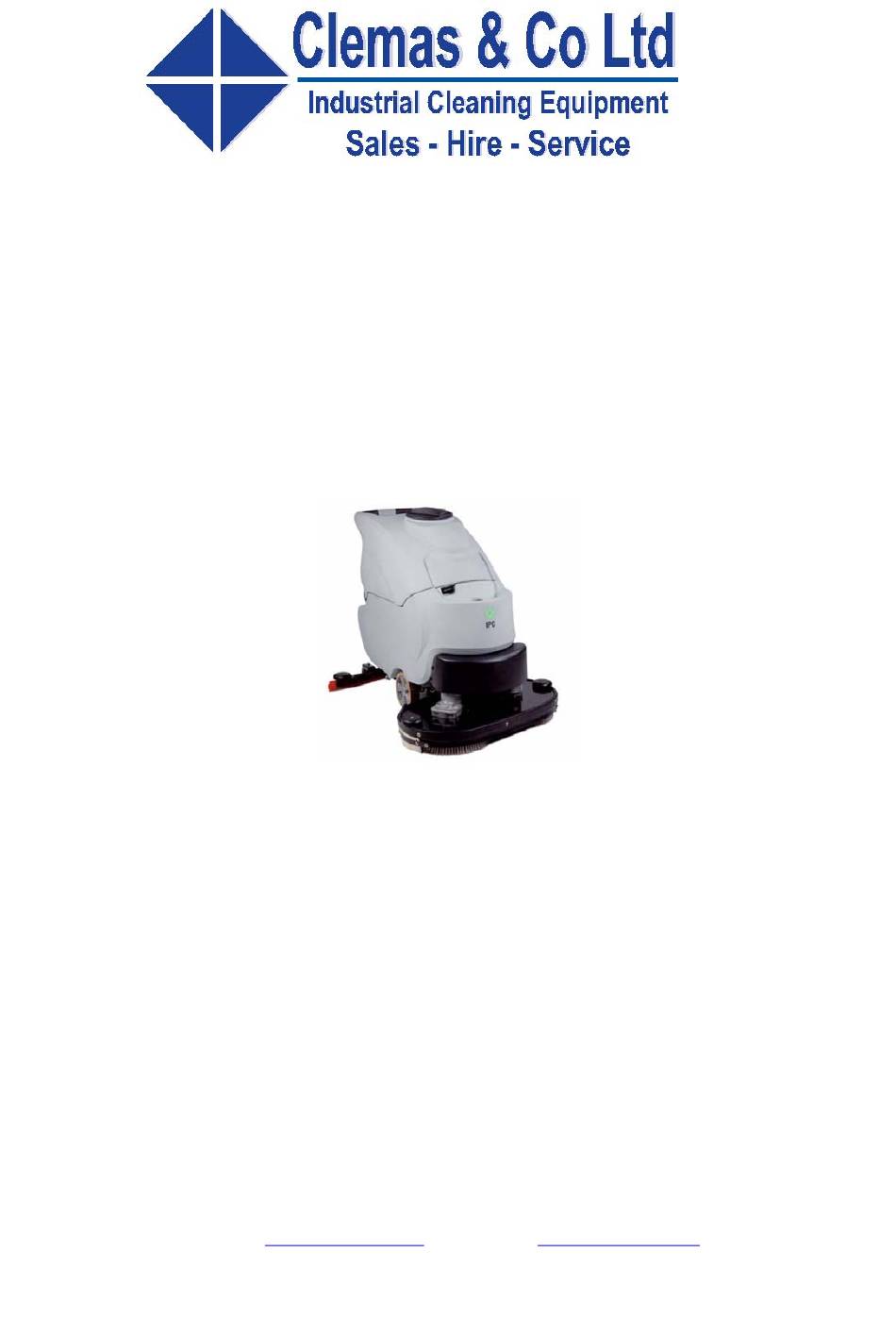

  • Page 1 CT90 SCRUBBER DRYER OPERATOR MANUAL Clemas & Co. Unit 5 Ashchurch Business Centre, Alexandra Way, Tewkesbury, Gloucestershire, GL20 8NB. Tel: 01684 850777 Fax: 01684 850707 Email: info@clemas.co.uk Web: www.clemas.co.uk...
  • Page 2 TECHNICAL SPECIFICATIONS TECHNISCHE DATEN DONNEES TECHNIQUES CARACTERÍSTICAS TÉCNICAS CARATTERISTICHE TECNICHE TECHNISCHE GEGEVENS CT90 60BT 70BT 85BT Cleaned track width Bearbeitungsbreite Largeur nettoyable Ancho recorrido limpido Larghezza pista pulita Werkbreedte Squeegee width Saugfußbreite Largeur suceur Ancho squeegee Larghezza squeegee Breedte zuigrubber...
  • Page 3 Solution tank Lösungstank Réservoir de la solution Tanque de la solución Serbatoio soluzione Schoonwatertank Recovery tank Schmutztank Réservoir de récupération Tanque de recuperación Serbatoio recupero Vuilwatertank Wheel diameter Durchmesser der Antriebsräder Diamètre des roues Diámetro ruedas Diametro ruote Doorsnede wielen Net weight without batteries Nettogewicht ohne Batterien Poids net sans batteries...
  • Page 4 Dimensions of packing (length, width, height) Maße der Verpackung (Länge, Breite, Höhe) 1780x 1780x 1780x Dimensions de l’emballage (longueur, largeur, hauteur) 930x 930x 930x Dimensiones del embalaje (largo, ancho, alto) 1290 1290 1290 Dimensioni imballo (lunghezza, larghezza, altezza) Afmetingen verpakking (lengte, breedte, hoogte) Sound Pressure Schalldruck Pression Sonore...
  • Page 5 MACHINE SIZE - MASSE DER MASCHINE DIMENSIONS DE LA MACHINE DIMENSIONES DE LA MÁQUINA - DIMENSIONI MACCHINA MACHINEAFMETINGEN X-Y-Z: See table “TECHNICAL SPECIFICATIONS” X-Y-Z: Sehen tab. “TECHNISCHE DATEN” X-Y-Z: Voir tab. “DONNEES TECHNIQUES” X-Y-Z: Vease tab. “CARACTERÍSTICAS TÉCNICAS” X-Y-Z: Vedi tabella “CARATTERISTICHE TECNICHE” X-Y-Z: Zie tabel “TECHNISCHE GEGEVENS”...
  • Page 6 MACHINE SIZE - MASSE DER MASCHINE DIMENSIONS DE LA MACHINE DIMENSIONES DE LA MÁQUINA - DIMENSIONI MACCHINA MACHINEAFMETINGEN X-Y-Z: See table “TECHNICAL SPECIFICATIONS” X-Y-Z: Sehen tab. “TECHNISCHE DATEN” X-Y-Z: Voir tab. “DONNEES TECHNIQUES” X-Y-Z: Vease tab. “CARACTERÍSTICAS TÉCNICAS” X-Y-Z: Vedi tabella “CARATTERISTICHE TECNICHE” X-Y-Z: Zie tabel “TECHNISCHE GEGEVENS”...
  • Page 7 Sound Pressure Schalldruck Pression Sonore Presion Sonora Pressione Sonora Geluidsdruk Sound Power Schallleistung Puissance Sonore Potencia Sonora Potenza Sonora Geluidsvermogen Vibration Level (arm) Schwingungspegel (arm) Niveau de Vibrations (bras) Nivel de Vibraciones (brazo) Livello Vibrazioni (braccio) Trillingsniveau (arm) Vibration Level (hand-arm) Schwingungspegel (hand-arm) Niveau de Vibrations (main-bras) Nivel de Vibraciones (mano-brazo)
  • Page 8 ENGLISH...

  • Page 9: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS ....................... 2 GENERAL INFORMATION ....................4 ....................... 4 COPE OF THE MANUAL ..................5 DENTIFICATION OF THE MACHINE ............... 5 OCUMENTATION ANNEXED TO THE MACHINE TECHNICAL INFORMATION....................5 ...................... 5 ENERAL DESCRIPTION ..........................5 EGEND ........................
  • Page 10 HOW TO ORDER SPARE PARTS ................21 TROUBLESHOOTING....................22 11.1 ................22 OW TO OVERCOME POSSIBLE FAILURES ENGLISH...

  • Page 11: General Information

    GENERAL INFORMATION Read this manual carefully before starting any operations on this machine Scope of the manual This manual has been drawn up by the Manufacturer and is considered as an integral part of the machine. It defines the purpose for which the machine has been manufactured and contains all information the operators require.

  • Page 12: Identification Of The Machine

    Identification of the machine The number plate (fig. 1), which is attached at the rear of the machine, shows the following information: • model code; • machine model; • power supply voltage; • total rated power; • serial number (registration number); •...

  • Page 13: Danger Areas

    • head unit (fig. 2, ref. 4): the main element is represented by the brushes (fig. 2, ref. 5), which distribute the detergent solution on the floor, removing dirt; • squeegee unit (or floor wiper, fig. 2, ref. 6): used to wipe and dry the floor, sucking up the water spread on the floor;...
  • Page 14 Do not use the machine in places that are not adequately lighted, in environments with danger of explosions, on public roads, in the presence of dirt harmful to health or improper environments. The suitable temperature for the use of the machine ranges between +4° C and +35° C; when the machine is not used, the temperature range is between +0°...

  • Page 15: Handling And Installation

    In presence of particularly high magnetic fields assess the possible effects on the control electronics. Never wash the machine with jets of water. The recycled fluids contain detergents, disinfectants, water, organic and inorganic stuff recycled during the work stages: they must be disposed of in compliance with the laws in force.

  • Page 16: Checking The Machine On Delivery

    adequately lighted environment. The machine, which is packed on a wooden pallet by the Manufacturer, must be loaded by means of proper handling machines (refer to the EEC provision 89/392/CEE and following amendments), onto the carrier and, once it has arrived at the appointed destination, unloaded by similar means.

  • Page 17: Feeding Batteries (Models With Battery)

    WARNING Check that the electric plant is provided with a suitable ground line and that the plugs (and any reducers being used) guarantee the continuity of the ground lead wires. ! DANGER The non-observance of the prescribed rules can cause serious damages to persons and things and the invalidity of the guarantee.

  • Page 18: The Battery-Charger (Models With Battery)

    2) disconnect the Anderson connector (fig. 5, ref. 2) of the battery wiring from the corresponding Anderson connector (fig. 5, ref. 1) of the main wiring; 3) release the recovery tank (fig. 2, ref. 2) from the solution tank (fig. 2, ref. 7) by pulling the release hook (fig.

  • Page 19: Practical Guide For The User

    • empty the recovery tank and the solution tank; • remove the squeegee and the brushes (or drive discs); • remove the batteries (in models with battery); • put the machine on the pallet, by anchoring it with plastic straps or the proper metal brackets;...

  • Page 20: Installing And Adjusting The Squeegee

    • Display. Displays any alarms active During normal operation, it displays the hour counter (giving the actual number of hours the machine has been operating). Installing and adjusting the squeegee The floor wiper, also called squeegee (fig. 2, ref. 6), is the first responsible for drying. To install the squeegee on the machine proceed as follows: 1) check that the squeegee supporting plate (fig.

  • Page 21: Detergents - Use

    brush/brushes (or drive disc) will be released and fall to the ground. Detergents - Use WARNING Always dilute detergents according to the supplier’s instructions. Do not use sodium hypochlorite (bleaching solution) or other oxidizers, especially if in high concentrations, and do not use solvents or hydrocarbons. The temperatures for water and detergent must not exceed the maximum temperatures indicated in the technical data and must be free from sand and/or other impurities.

  • Page 22: Setting Up The Machine

    Setting up the machine WARNING Before starting to work wear an apron, cap, non-slip waterproof shoes, a mask to protect the respiratory system, gloves and any other form of protection indicated by the supplier of the detergent or necessary in the environment you are going to work in.

  • Page 23: Some Useful Suggestions For The Optimal Use Of The Machine

    machine forward. The special mechanical drive device uses the friction between brush and floor to generate a thrust forward; when the mechanical drive lever is released, the brush motor will therefore switch off and the machine will consequently stop. If necessary, correct any deviation of the machine and keep it moving in a straight line via the direction adjustment knob (fig.

  • Page 24: Drying

    • begin washing. The flow of water must be dosed in proportion to the desired advance speed: the slower the machine goes, less water comes down. Insist on washing the dirtiest spots: in this way the detergent has the time to perform its chemical action for the detachment and suspension of dirt, and the brushes to develop an effective mechanical action.

  • Page 25: Periods Of Inactivity

    i INFORMATION The water and detergent solution can also be used to wash the recovery tank. PERIODS OF INACTIVITY If the machine is to remain unused for a long time, the squeegee and brushes (or drive discs) must be dismounted, washed and kept in a dry place (preferably packed in a plastic envelope or sheet), sheltered from dust.

  • Page 26: Maintenance - General Rules

    described in this manual must only be performed by trained technical staff in compliance with the safety regulations in force and recommendations stated in the maintenance manual. Maintenance – General rules A regular maintenance performed according to the Manufacturer’s intructions guarantees a better performance and endurance of the machine.

  • Page 27: Fuses: Replacement

    • remove the blade (fig. 12, ref. 4 or 5); • fit in the same blade inverting the edge in contact with the floor until all the four edges are worn, or else fit in a new blade embedding it in the screws of the squeegee unit (fig.
  • Page 28 HOW TO ORDER SPARE PARTS For a correct identification by our After-sales Service Office of the spare part(s) you need and, therefore, to help us serving you better, please fill in your orders with the following data: • machine model; •...
  • Page 29 TROUBLESHOOTING 11.1 How to overcome possible failures [B]= machines with battery [C]= machines with cable [BT]= battery machine with electrical drive Possible failures affecting the whole machine FAILURES CAUSES REMEDIES The machine does not work • [B]= the battery connector is •...
  • Page 30 • there is an obstruction in the • remove clogging, tube through which the solution cleaning the ducts is pumped to the brush • the tap is dirty or does not work • clean or replace the tap, unscrewing the screw ref. 1 in fig.
  • Page 31 • the poles and charging clips of • clean and grease the poles The batteries do not ensure the batteries dirty clips, recharge normal work time (models with oxydized batteries battery only) • the electrolyte level is low • add distilled water topping up all elements according to the instructions •...
  • Page 32 After recharging with • the storage battery has not • connect the battery-charger been connected to the battery- storage battery electronic battery-charger the charger (for instance because connector storage-battery does not show the low voltage connector of the correct voltage (about battery-charger been...
  • Page 33 ALARMS ON THE DISPLAY: 1)ACC "drive lever" pressed when the machine is turned on or after an emergency 2)SIC Emergency button pressed 3)POT Speed potentiometer fault 4)MOS Board (mosfet) short circuit 5)HOT Motor thermal cutout tripped 6)LIM Board (mosfet) thermal limitation problem 7)BLT Drive block.
  • Page 34 Fig./Abb. 图 Fig./Abb./ 图 Fig./Abb./ 图 Fig./Abb./ Fig./Abb./ 图 图...
  • Page 35 CT40 R – CT70 R CT40-CT70 C only CT40 B -CT70 B CT40 C -CT70 C CT40 BT -CT70 BT CT90 BT CT40 BT50 MICRO SCRUB / ECS CT70 MICRO SCRUB / ECS CT40 BT60 MICRO SCRUB / ECS Fig./Abb./ 图...
  • Page 36 Fig./Abb./ 图 Fig./Abb./ Fig./Abb./ 图 图 Fig./Abb./ Fig./Abb./ 图 图...
  • Page 37 Fig./Abb./ 图 Fig./Abb./ 图 Fig./Abb./ 图 Fig./Abb./ 图...
  • Page 38 Fig./Abb./ 图 Fig./Abb./ 图...
  • Page 39 Fig./Abb./ 图 Fig./Abb./ 图...
