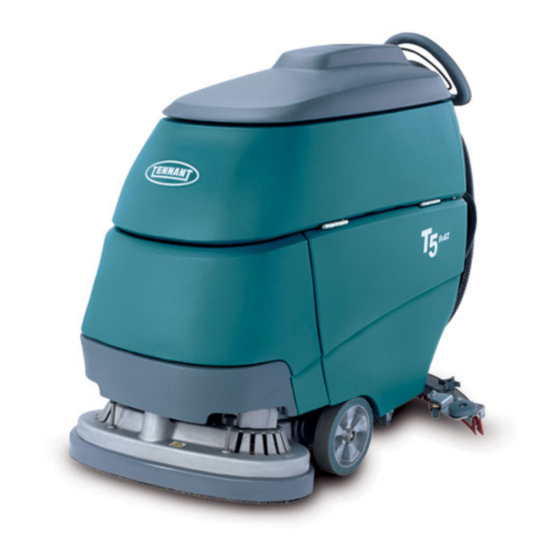

TENNANT T5
SCRUBBER DRYER
OPERATOR MANUAL
Clemas & Co. Unit 5 Ashchurch Business Centre, Alexandra Way, Tewkesbury,
Gloucestershire, GL20 8NB.
Tel: 01684 850777
Fax: 01684 850707
Email:
info@clemas.co.uk
Web:
www.clemas.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TENNANT T5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clemas & Co TENNANT T5

Summary of Contents for Clemas & Co TENNANT T5

  • Page 1 TENNANT T5 SCRUBBER DRYER OPERATOR MANUAL Clemas & Co. Unit 5 Ashchurch Business Centre, Alexandra Way, Tewkesbury, Gloucestershire, GL20 8NB. Tel: 01684 850777 Fax: 01684 850707 Email: info@clemas.co.uk Web: www.clemas.co.uk...

  • Page 2: Table Of Contents

    USING AN OFF--BOARD BATTERY CHARGER ......Tennant T5 (06- -06) Home Find... Go To..

  • Page 3: Safety Precautions

    Do not modify the machine from its original order to avoid a hazard. design. WARNING: Spinning Brush. Keep Hands Away. Turn Off Power Before Working On Machine. Tennant T5 (06- -06) Home Find... Go To..

  • Page 4: Safety Labels

    Gas. Keep Sparks And Open Flame Away. Keep Battery READ MANUAL LABEL - - Compartment Open When Located on recovery tank cover. Charging. FOR SAFETY: Do not operate machine unless operation manual is read and understood. Tennant T5 (06- -06) Home Find... Go To..

  • Page 5: Machine Components

    13. Recovery Tank Support Stand 14. Control Board 15. Bucket Fill Port/Clean--out Port 16. FaST--PAK Carton Compartment 17. Batteries 18. Off--Aisle Wand Solution Hose Coupler 19. Recovery Tank 20. Recovery Tank Cover Tennant T5 (06- -06) Home Find... Go To..

  • Page 6: Control Panel Components

    5. Solution flow increase button (+) 12. FaST system on/off switch (option) 6. Solution flow decrease button (--) 13. Main power on/off key switch 7. Fault indicator -- Contact Service 14. Hour meter Tennant T5 (06- -06) Home Find... Go To..

  • Page 7: Machine Installation

    IMPORTANT: If your machine is equipped with the on- -board battery charger, make sure that the charger is properly set for your battery type before charging (See ON- -BOARD CHARGER SETTINGS). Tennant T5 (06- -06) Home Find... Go To..

  • Page 8: How The Machine Works

    Stripping Pad (Brown) - - Used for stripping of floor finish to prepare the floor for recoating. Heavy Duty Stripping Pad (Black) - - Used for aggressive stripping of heavy finishes/sealers, or very heavy duty scrubbing. FIG. 6 Tennant T5 (06- -06) Home Find... Go To..

  • Page 9: Installing Brushes/Pads

    2. Attach the pad to the pad driver before installing the driver. Secure pad with centerlock (Figure 9). FIG. 12 3. Attach idler plate to the brush end that has the double row of bristles (Figure 13). Install brush. FIG. 9 Tennant T5 (06- -06) Home Find... Go To..

  • Page 10: Installing Fast--Pak Carton

    ATTENTION: For conventional scrubbing, only use commercially approved cleaning detergents. Machine damage due to improper detergent usage will void the manufacturer’s warranty. WARNING: Fire or Explosion Hazard. Never Use Flammable Liquids. FIG. 15 Tennant T5 (06- -06) Home Find... Go To..

  • Page 11: Machine Operation

    IMPORTANT: NEVER turn the FaST system switch on when conventional scrubbing. Conventional cleaning detergents/restorers may cause failure to the FaST injection system. Drain, rinse and refill solution tank with cool clean water before operating the FaST system. Tennant T5 (06- -06) Home Find... Go To..

  • Page 12: Emergency Stopping

    (See CONTROL PANEL FAULT INDICATOR CODES). FIG. 24 9. To stop scrubbing, release the control handle bail, press the 1- -STEP scrub button and raise the squeegee. Tennant T5 (06- -06) Home Find... Go To..

  • Page 13: Battery Charge Level Indicator

    (Figure 27). See MOTOR MAINTENANCE. FIG. 29 4. Attach the off--aisle wand to the hoses (Figure 30). FIG. 27 FIG. 30 Tennant T5 (06- -06) Home Find... Go To..

  • Page 14: Draining And Cleaning Tanks

    FIG. 36 WARNING: Fire or Explosion Hazard. Do Not Pick Up Flammable Materials Or Reactive Metals. Tennant T5 (06- -06) Home Find... Go To..

  • Page 15: Draining Solution Tank

    One of the codes will either read “GEL” or “Acd” (Figure 40). GEL = Set for sealed/maintenance free batteries Acd = Set for wet/lead acid batteries FIG. 39 FIG. 40 Tennant T5 (06- -06) Home Find... Go To..

  • Page 16: Using The On--Board Battery Charger

    If the charger detects a problem, the charger will display an error code (See ON--BOARD BATTERY CHARGER ERROR CODES). FIG. 42 5. Connect the charger’s AC power supply cord into a properly grounded receptacle (Figure 43). Tennant T5 (09- -06) Home Find... Go To..

  • Page 17: On--Board Battery Charger Error Codes

    AC power supply cord first. FIG. 45 5. Connect the charger’s AC power supply cord into a properly grounded receptacle. 6. Connect the charger’s DC cord into the machine’s battery receptacle (Figure 46). Tennant T5 (06- -06) Home Find... Go To..

  • Page 18: Adjusting Scrub Head Brushes

    6. Raise the scrub head and pull the machine away. 7. Observe the brush pattern on floor. If the brush pattern is uneven or tapered, adjustment is required. FIG. 48 8. Reconnect drive motor wire. Tennant T5 (06- -06) Home Find... Go To..
  • Page 19 Retighten hex screw (Figure 55). FIG. 52 3. Recheck brush pattern. NOTE: Replace brushes when worn to 15mm. FIG. 55 5. Recheck brush pattern. NOTE: Replace brushes when worn to 15mm. Tennant T5 (06- -06) Home Find... Go To..

  • Page 20: Machine Maintenance

    Clean the solution tank filter (Figure 61). FIG. 57 FIG. 61 3. Remove the recovery tank float shut--off screen and clean (Figure 58). 7. Rotate pad or replace when worn (Figure 62). Disk Model FIG. 58 FIG. 62 Tennant T5 (06- -06) Home Find... Go To..
  • Page 21 Electrical malfunction may occur. Cylindrical Brush Model FIG. 65 11. Wipe the squeegee blades clean (Figure 66). Store FIG. 68 the squeegee assembly in the raised position to prevent blade damage. Tennant T5 (06- -06) Home Find... Go To..

  • Page 22: Monthly Maintenance

    3. Lubricate all pivot points and rollers with a water the machine was used for a total of 30 minutes or resistant grease. more. 4. Lubricate the casters with a water resistant grease (Figure 74). FIG. 71 FIG. 74 Tennant T5 (06- -06) Home Find... Go To..

  • Page 23: Battery Maintenance

    Use a scrub brush with a mixture of baking soda and water (Figure 76). FOR SAFETY: When cleaning batteries, wear protective gloves and eye protection. Avoid contact with battery acid. FIG. 78 Tennant T5 (06- -06) Home Find... Go To..

  • Page 24: Motor Maintenance

    Unthread the black plastic filter housing and replace Drive Transaxle Motor the orifice plate and filter (Figure 83). Vacuum Motor Disk Brush Motors Cylindrical Brush Motors 1000 WARNING: Electrical Hazard. Disconnect Battery Cables Before Servicing Machine. FIG. 83 Tennant T5 (06- -06) Home Find... Go To..

  • Page 25: Jacking Up Machine

    11° ramp incline at a ramp length of 3.7m, use tie- -down straps to secure machine and block machine wheels. Tennant T5 (06- -06) Home Find... Go To..

  • Page 26: Troubleshooting

    Solution tank is empty Fill solution tank Clogged solution tank filter Clean solution tank filter Discharged batteries Charge batteries Clogged solution valve Remove valve and clean Faulty control board Contact Service Center Tennant T5 (06- -06) Home Find... Go To..
  • Page 27 Drain solution tank. remove solution tank filter, clean and reinstall Clogged detergent orifice/filter screen Replace orifice/filter screen (See FaST SYSTEM MAINTENANCE) Clogged FaST solution inlet filter Contact Service Center Faulty control board Contact Service Center Tennant T5 (06- -06) Home Find... Go To..

  • Page 28: Control Panel Fault Indicator Codes

    Restart key to reset. All battery lights blink Emergency--Stop button activated Turn button clockwise to reset. All battery lights ripple Key turned on while bail was engaged. Release the control handle start bail. Tennant T5 (06- -06) Home Find... Go To..

  • Page 29: Machine Specifications

    DECIBEL RATING AT OPERA- 67dBA 68dBA TOR’S EAR, INDOORS. VIBRATION AT CONTROLS <.1188 m/s <.103 m/s ACCELERATION RATE ON .179 m/s OPERATOR - - MAX. GRADE LEVEL, MAX. Scrubbing 5% (3°), Transporting 8% (5°) Tennant T5 (06- -06) Home Find... Go To..

  • Page 30: Machine Dimensions

    0.83 CC/min. CONCENTRATE TO WATER 1:1000 DILUTION RATIO MACHINE DIMENSIONS 580 mm 1120 mm 600 mm, 650 mm 700 mm, 800 mm 1350 mm 800 mm, 908 mm 1051 mm, 1185 mm Tennant T5 (06- -06) Home Find... Go To..
