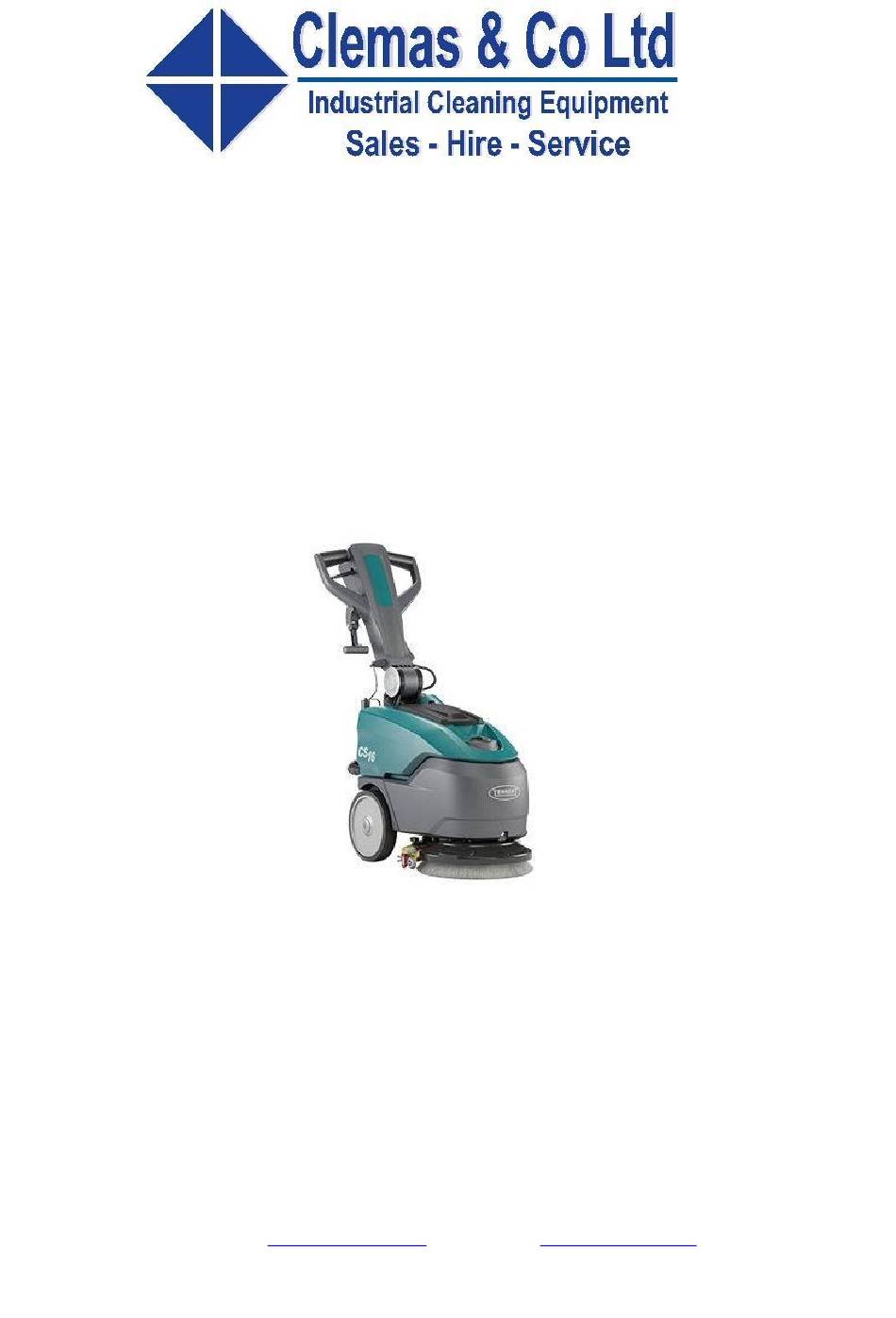

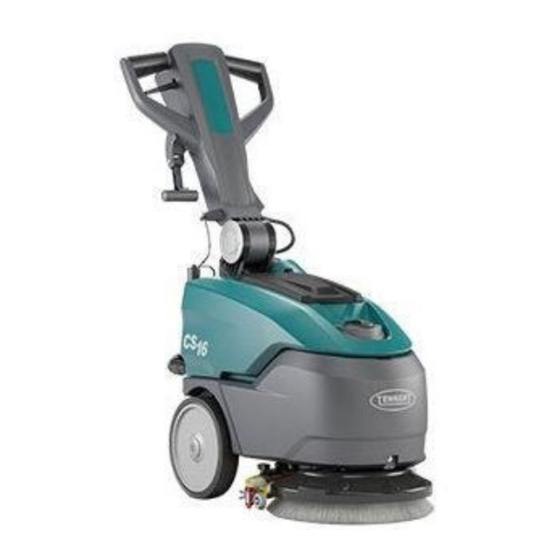

- Page 1 TENNANT CS16 SCRUBBER DRYER OPERATOR MANUAL Clemas & Co. Unit 16 Ashchurch Business Centre, Alexandra Way, Tewkesbury, Gloucestershire, GL20 8NB. Tel: 01684 850777 Fax: 01684 850707 Email: info@clemas.co.uk Web: www.clemas.co.uk...
- Page 2 ENGLISH (Translation of original instructions)
-
Page 3: Table Of Contents
TABLE OF CONTENTS TECHNICAL SPECIFICATIONS ................4 MACHINE DIMENSIONS ..................6 IMPORTANT SAFETY PRECAUTIONS ..............7 SAFETY SYMBOLS ....................12 FIGURE ........................14 GENERAL INFORMATION ..................19 Purpose of this manual ......................... 19 Identifying the machine ......................... 19 Documentation provided with the machine ................... 19 TECHNICAL INFORMATION .................20 General description ........................ -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS (battery power) (mains power) Cleaning width inch Squeegee width inch 17,7 1300 Cleaning capacity per hour 13993 Number of brushes n° Brush diameter inch Maximum brush pressure g/cm g/1° Brush rotation speed Brush motor power 0,26 0,33 Drive motor power Maximum speed Km/h Suction motor power... - Page 5 205x265x205 Battery compartment dimensions (length, width, height) inch 8,0x10,4x8,0 800x450x640 Packed size (length, width, height) inch 31,4x17,7x25,1 Sound pressure (EN 60704) (dBA) Measurement uncertainty (dBA) Vibration level (hand) (IEC 60335-2-72) m/sec Measurement uncertainty, k m/sec Vibration level (body) m/sec Measurement uncertainty, k m/sec °C 4 - 35...
-
Page 6: Machine Dimensions
MACHINE DIMENSIONS X-Y-Z: See “TECHNICAL SPECIFICATIONS” table... -
Page 7: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS Basic safety precautions must be followed when using any electrical equipment. READ ALL INSTRUCTIONS BEFORE OPERATING THIS MACHINE WARNING! - To minimise the risk of electrocution or injury: a) Never leave the machine unsupervised when connected to the mains power supply. - Page 8 with blocked ventilation slots. Remove all dust, dirt, hair and debris that might slots and moving parts. m) Take particular care when cleaning stairs. petrol, and do not operate the machine in areas where such liquids may be present. The machine must not be used for purposes other than those for which it was expressly designed.
- Page 9 watches, ties, etc. The operator must always use personal protection devices: protective apron or overalls, non-slip waterproof shoes, rubber gloves, protective goggles and ear protectors and mask to protect the respiratory tract. Do not pick up burning or smoking material like cigarettes, matches or hot ash- Never operate the machine on slopes or ramps of more than 2%.
- Page 10 This equipment must be earthed. In the event of a malfunction or failure, the This equipment must be earthed. In the event of a malfunction or failure, the earth connection provides the path of least resistance for electrical current, min- earth connection provides the path of least resistance for electrical current, min- imising the risk of electrocution.
- Page 11 lead to explosions. Never wear metal rings or bracelets when working on batteries. Never lift or handle batteries by their terminals. Batteries must be disposed of through appropriate channels and not as normal waste. In the case of gel batteries, never attempt to remove the battery cover to add water or acid to the cell/s inside.
-
Page 12: Safety Symbols
SAFETY SYMBOLS MAXIMUM SLOPE OPERATOR'S MANUAL, INSTRUCTIONS FOR USE READ THE OPERATOR'S MANUAL DIRECT CURRENT SYMBOL INSULATION CLASS, THIS CLASSIFICATION ONLY AP- PLIES TO BATTERY POWERED MACHINES. EARTH SYMBOL, IDENTIFIES ANY TERMINAL DESTINED FOR CONNECTION TO AN EXTERNAL EARTH CONDUC- TOR TO PROTECT AGAINST ELECTROCUTION IN THE EVENT OF A MALFUNCTION. - Page 13 CAUTION! PROTECT AGAINST RAIN CAUTION! PROTECT AGAINST DIRECT SUNLIGHT ARRANGEMENT AND CONNECTION OF BATTERIES...
-
Page 14: Figure
FIGURE... - Page 16 2 - 12...
- Page 18 Extension Machine power cable...
-
Page 19: General Information
GENERAL INFORMATION IMPORTANT! Read this manual carefully before carrying out any work on the machine. Purpose of this manual machine This manual has been written by the Manufacturer and is an integral part of the operators required by In addition to this manual, which contains information for operators, other publications are available providing maintenance personnel The terms “right”... -
Page 20: Technical Information
TECHNICAL INFORMATION General description The machine is intended for use in commercial applications, such as hotels, schools, hospitals, factories, shops The machine must only be used indoors. It is available in both battery and mains powered versions to meet all running time and weight requirements. scrubs it to remove the dirt. -
Page 21: Movement Installation
MOVEMENT INSTALLATION Lifting and transporting the packaged machine WARNING being accidentally dropped. Always load/unload lorries in adequately illuminated areas. The machine is packaged on a wooden pallet by the Manufacturer. It must be loaded on to the transporting vehicle using suitable equipment (see EC Directive 89/392 and subsequent amendments and/or additions). At destina- tion, it must be unloaded using similar means. -
Page 22: Power Supply Batteries (Battery Powered Versions)
WARNING Make sure the mains system is suitably earthed and that sockets ensure the continuity of the earth con- ductors. DANGER Failure to observe these instructions could cause possibly serious damage to people and things and invalidates the guarantee. Power supply batteries (battery powered versions) DANGER To avoid the risk of electrocution, batteries must be installed by the manufacturer or by personnel trained and authorised by the manufacturer. -
Page 23: Batteries: Removal
Make sure the dirty water tank is empty and empty it if necessary (see relevant paragraph). have previously removed the suction hose and dirty water tank drain hose from their housings. WARNING Mount the batteries on the machine using lifting means suitable for their weight. Batteries: removal DANGER When removing the batteries, the operator must be equipped with suitable personal protection devices... -
Page 24: Mounting And Adjusting The Squeegee
machine functions. machine functions. brush does not start rotating until the brush lever is operated. ECO function (battery powered versions brush does not start rotating until the brush lever is operated. ECO function (battery powered versions only), used to reduce brush motor power by 20%, to activate this function, operate the “Brush lever” then only), used to reduce brush motor power by 20%, to activate this function, operate the “Brush lever”... -
Page 25: Mounting And Changing The Brush/Drive Disks Drive Disks
Mounting and changing the brush/drive disks drive disks DANGER DANGER During brush/drive disk attachment and release, pay attention to brush rotation. During brush/drive disk attachment and release, pay attention to brush rotation. WARNING WARNING Never work without the brushes and drive disks correctly installed. Never work without the brushes and drive disks correctly installed. -
Page 26: Working
follow a few simple rules: Working After setting up the machine, proceed as follows: mains powered versions: plug the machine into the mains power socket and press the main WARNING trips, stop work and empty the tank. After After a few seconds, the brush and suction motor shut down to prevent draining the batteries excessively. a few seconds, the brush and suction motor shut down to prevent draining the batteries excessively. -
Page 27: Draining The Dirty Water
Drying Lower the squeegee and with the suction motor on, pass over the same area washed previously. The result is The result is equivalent to in-depth washing and subsequent ordinary maintenance will take less time. equivalent to in-depth washing and subsequent ordinary maintenance will take less time. Draining the dirty water Draining the dirty water DANGER... -
Page 28: Maintenance Instructions
To avoid permanent damage to the batteries, do not run them down completely. the batteries. Charging procedure MAINTENANCE INSTRUCTIONS DANGER powered versions) or disconnecting the fuse on the battery bridge (battery versions). In mains powered versions, the operator must be able to verify from any position that the machine re- mains unplugged from the mains socket while maintenance is being carried out. -
Page 29: Fuses: Replacing
Fuses: replacing Fuses: replacing Fuses must only be replaced by personnel trained and authorised by the manufacturer. Routine maintenance Daily operations After each day’s work, proceed as follows: Weekly operations sary. Six monthly operations Have the machine checked by personnel trained and authorised by the manufacturer. -
Page 30: Maintenance
Maintenance O = Operator O = Operator A = personnel trained and authorised by the manufacturer. Interval Responsible Parts of the machine Description Procedure Lubricant/Liquid Daily Check, rotate or re- place Brush/es Check and clean Squeegee Clean and check for wear or damage Spray shield Check for wear or... -
Page 31: Troubleshooting
TROUBLESHOOTING How to resolve possible problems [B]= battery powered machines [C]= mains powered machines PROBLEM CAUSE REMEDY The machine does not [B]= charge the batteries work [C]= the machine is not plugged into the mains [C]= plug into the mains socket socket [C]= press the switch pressed... -
Page 32: Error Code Display, Battery Version
battery discharg- the battery is new and does not deliver 100% of the battery must be "run-in" by performing 20-30 es too fast during use, its expected capacity charges and discharges to obtain maximum per- even though it has been formance the machine is being used at maximum capac- if possible, use batteries with a higher capacity... -
Page 33: Recommended Spare Parts
RECOMMENDED SPARE PARTS Part Number Description 9017834 BRUSH ASSY, DISK, SCB, 35CM, 3-LUG,PYP [STANDARD] 9017836 BRUSH ASSY,DISK,SCB,35CM,3-LUG, PYP,SOFT [OPTINAL] 9017837 BRUSH ASSY, DISK,ABR, 35CM,3-LUG,120 GRIT [OPTIONAL] 9017782 DRIVER ASSY, PAD, 35CM, 3-LUG 994518 PAD, BUFF, 14.0/355, RED [5PC] STANDARD 994519 PAD, SCB, 14.0INCH /355, BLU [5PC] 994520 PAD, STRIPPING, 14.0/355, BROWN [5PC]...
