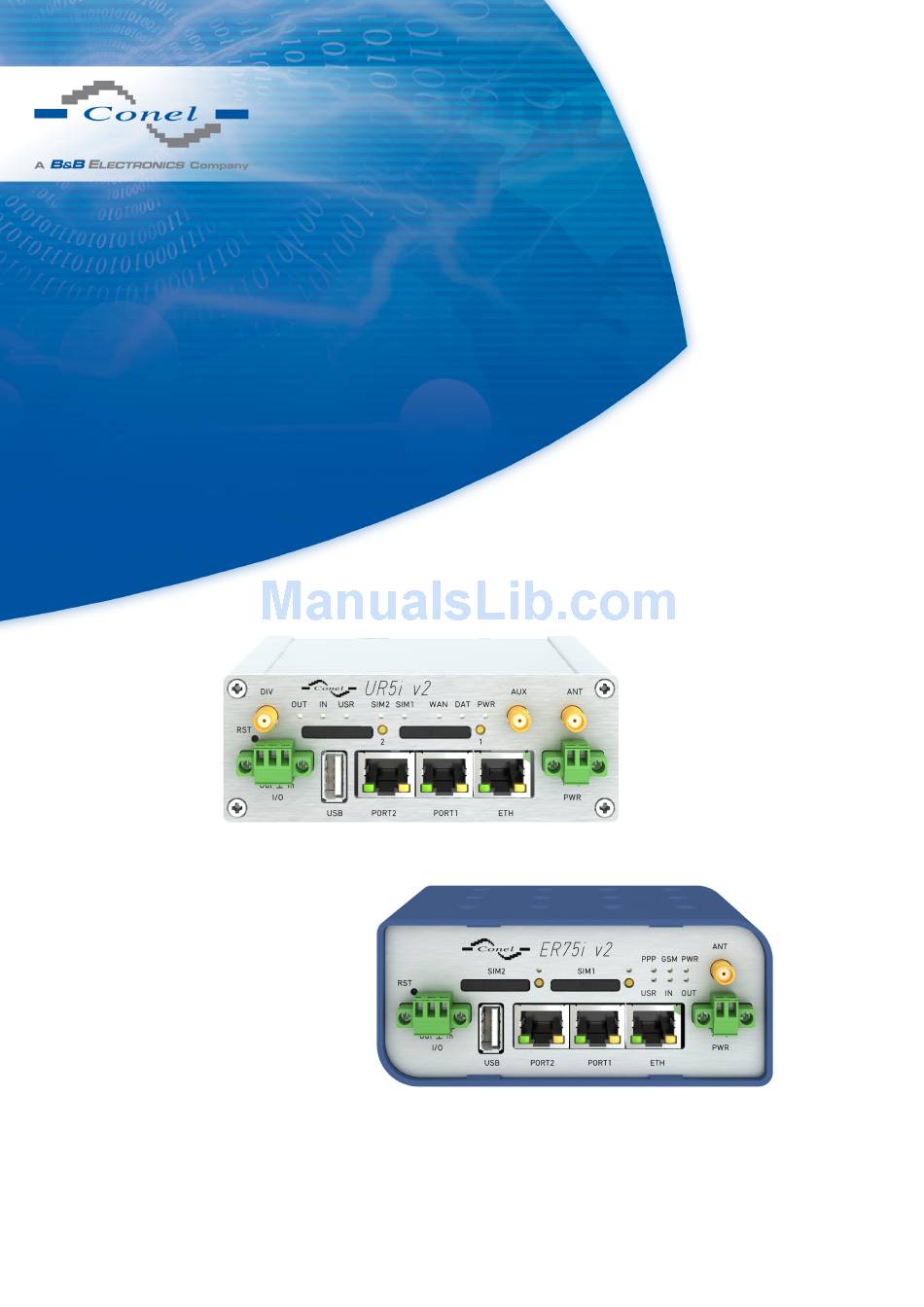

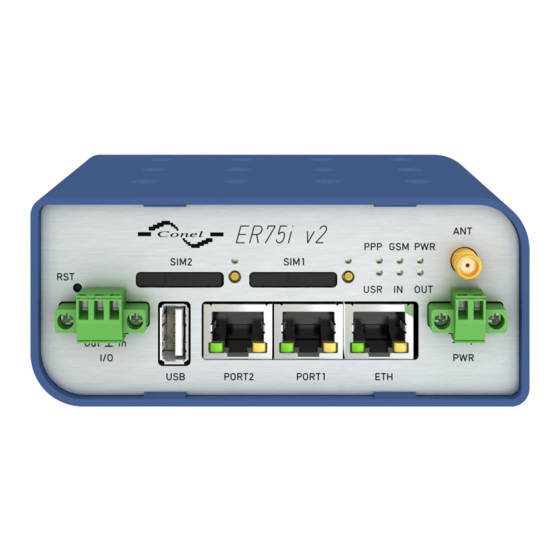

- Page 1 CONFIGURATION MANUAL for v2 routers...
-
Page 2: Firmware Version
XR5i v2. PPPoE configuration item is only available on the industrial router XR5i v2, used to set the PPPoE connection over Ethernet. Conel s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Manual issued in CZ, September 20, 2013... -
Page 3: Table Of Contents
CONTENTS Contents 1 Configuration over web browser 1.1 Secured access to web configuration ......1.2 General ........1.2.1 Mobile Connection . - Page 4 CONTENTS 1.27 USB port configuration ....... . 1.28 Startup script ........1.29 Up/Down script .
- Page 5 LIST OF FIGURES List of Figures Web configuration ........Mobile WAN status .
- Page 6 LIST OF FIGURES PPTP tunnel configuration ......Topology of example PPTP tunnel configuration ....Example of DynDNS configuration .
- Page 7 LIST OF TABLES List of Tables Mobile connection ........Peripheral Ports .
- Page 8 LIST OF TABLES Example PPTP tunel configuration ......DynDNS configuration ....... . NTP configuration .
-
Page 9: Configuration Over Web Browser
1. CONFIGURATION OVER WEB BROWSER 1. Configuration over web browser Attention! If the SIM card is not inserted in the router, then wireless transmissions will not work. The inserted SIM card must have activated GPRS. Insert the SIM card when the router is switched-off. -
Page 10: Secured Access To Web Configuration
1. CONFIGURATION OVER WEB BROWSER After green LED starts to blink it is possible to restore initial settings of the router by press- ing button RST on front panel. If press button RST, configuration is restored to default and it is reboot (green LED will be on). -
Page 11: Primary Lan
1. CONFIGURATION OVER WEB BROWSER Continued from previous page Item Description Rx Data Total number of received bytes Rx Packets Received packets Rx Errors Erroneous received packets Rx Dropped Dropped received packets Rx Overruns Lost received packets because of overload Tx Data Total number of sent bytes Tx Packets... -
Page 12: Mobile Wan Status
1. CONFIGURATION OVER WEB BROWSER Continued from previous page Item Description Profile Current profile – standard or alternative profiles (profiles are used for example to switch between different modes of operation) Supply Voltage Supply voltage of the router Temperature Temperature in the router Time Current date and time Uptime... -
Page 13: Mobile Network Information
1. CONFIGURATION OVER WEB BROWSER Continued from previous page Item Description Revision Revision of module IMEI IMEI (International Mobile Equipment Identity) number of module ESN (Electronic Serial Number) number of module (for CDMA routers) Table 4: Mobile Network Information Highlighted in red adjacent cells have a close signal quality, which means that there is imminence of frequent switching between the current and the highlighted cell. -
Page 14: Network Status
1. CONFIGURATION OVER WEB BROWSER In the middle part of this page is displayed information about transferred data and number of connections for both SIM card (for each period). Item Description RX data Total volume of received data TX data Total volume of sent data Connections Number of connection to mobile network establishment... -
Page 15: Description Of Interface In Network Status
1. CONFIGURATION OVER WEB BROWSER Interface Description eth0, eth1 Network interfaces ppp0 Interface (active connection to GPRS/EDGE) tun0 OpenVPN tunnel interface ipsec0 IPSec tunnel interface gre1 GRE tunnel interface usb0 USB connector interface Table 8: Description of interface in network status By each of the interfaces is then shown the following information: Item Description... -
Page 16: Dhcp Status
1. CONFIGURATION OVER WEB BROWSER It is possible to read status of connection to mobile network from the network information. If the connection to mobile network is active, then it is in the system information shown as a ppp0 interface. For industrial router XR5i v2, interface ppp0 indicates PPPoE connection. -
Page 17: Ipsec Status
1. CONFIGURATION OVER WEB BROWSER Figure 4: DHCP status In the extreme, the DHCP status can display two records for one IP address. That could have been caused by resetting of network cards. 1.6 IPsec status Information on actual IPsec tunnel state can be called up in option IPsec in the menu. After correct build the IPsec tunnel, status display IPsec SA established (highlighted in red) in IPsec status information. -
Page 18: System Log
1. CONFIGURATION OVER WEB BROWSER In detecting the status of updates DynDNS record are possible following message: DynDNS client is disabled. Invalid username or password. Specified hostname doesn’t exist. Invalid hostname format. Hostname exists, but not under specified username. No update performed yet. DynDNS record is already up to date. -
Page 19: System Log
1. CONFIGURATION OVER WEB BROWSER Figure 7: System Log Example of logging into the remote daemon at 192.168.2.115: Figure 8: Example program syslogd start with the parameter -r... -
Page 20: Lan Configuration
1. CONFIGURATION OVER WEB BROWSER 1.9 LAN configuration To enter the network configuration, select the LAN menu item. ETH network set in Primary LAN configuration, expansion PORT ETH set in Secondary LAN configuration. Item Description DHCP Client disabled – The router does not allow automatic allocation IP address from a DHCP server in LAN network. -
Page 21: Topology Of Example Lan Configuration
1. CONFIGURATION OVER WEB BROWSER DHCP server supports static and dynamic assignment of IP addresses. Dynamic DHCP server assigns clients IP addresses from a defined address space. Static DHCP assigns IP addresses that correspond to the MAC addresses of connected clients. Item Description Enable dynamic... -
Page 22: Example Lan Configuration
1. CONFIGURATION OVER WEB BROWSER Figure 10: Example LAN configuration 1 Example of the network interface with dynamic and static DHCP server: The range of allocated addresses from 192.168.1.2 to 192.168.1.4. The address is allocated 10 minutes. Client’s with MAC address 01:23:45:67:89:ab has IP address 192.168.1.10. Client’s with MAC address 01:54:68:18:ba:7e has IP address 192.168.1.11. -
Page 23: Topology Of Example Lan Configuration
1. CONFIGURATION OVER WEB BROWSER Figure 11: Topology of example LAN configuration 2 Figure 12: Example LAN configuration 2... -
Page 24: Topology Of Example Lan Configuration
1. CONFIGURATION OVER WEB BROWSER Example of the network interface with default gateway and DNS server: Default gateway IP address is 192.168.1.20 DNS server IP address is 192.168.1.20 Figure 13: Topology of example LAN configuration 3 Figure 14: Example LAN configuration 3... -
Page 25: Vrrp Configuration
1. CONFIGURATION OVER WEB BROWSER 1.10 VRRP configuration To enter the VRRP configuration select the VRRP menu item. VRRP protocol (Virtual Router Redundancy Protocol) is a technique, by which it is possible to forward routing from main router to backup router in the case of the main router failure. If the Enable VRRP is checked, then it is possible to set the following parameters. -
Page 26: Topology Of Example Vrrp Configuration
1. CONFIGURATION OVER WEB BROWSER If Ping Timeout expires with no answer received then process of testing the active line contin- ues the same way like in the case of standard testing process after first test message answer drops out. Example of the VRRP protocol: Figure 15: Topology of example VRRP configuration Figure 16: Example VRRP configuration —... -
Page 27: Mobile Wan Configuration
1. CONFIGURATION OVER WEB BROWSER 1.11 Mobile WAN configuration This item is not available for industrial router XR5i v2. The form for configuration of a connection to the mobile network can be invoked by select- ing the Mobile WAN item in the main menu of the router web interface. 1.11.1 Connection to mobile network If the Create connection to mobile network item is selected, the router automatically tries to establish connection after switching-on. -
Page 28: Dns Address Configuration
1. CONFIGURATION OVER WEB BROWSER Tips for working with the Mobile WAN configuration form: If the size is set incorrectly, data transfer may not be succeeded. By setting a lower MTU it occurs to more frequent fragmentation of data, which means higher overhead and also the possibility of damage of packet during defragmentation. -
Page 29: Data Limit Configuration
1. CONFIGURATION OVER WEB BROWSER In the case of the enabled option ping requests are sent on the basis of routing table. Thus, the requests may be sent through any available interface. If you require each ping request to be sent through the network interface, which was created on the occasion of establishing a connection to the mobile operator, it is necessary to set the Check Connection item to enabled + bind. -
Page 30: Default And Backup Sim Configuration
1. CONFIGURATION OVER WEB BROWSER Item Description Default SIM card This parameter sets default APN or SIM card, from which it will try to establish the connection to mobile network. If this parameter is set to none, the router launches in offline mode and it is necessary to establish connection to mobile network via SMS message. -
Page 31: Dial-In Access Configuration
1. CONFIGURATION OVER WEB BROWSER The following parameters define the time after which the router attempts to go back to the default SIM card or APN. Item Description Initial timeout The first attempt to switch back to the primary SIM card or APN shall be made for the time defined in the parameter Initial Time- out, range of this parameter is from 1 to 10000 minutes. -
Page 32: Pppoe Bridge Mode Configuration
1. CONFIGURATION OVER WEB BROWSER 1.11.7 PPPoE bridge mode configuration If the Enable PPPoE bridge mode option selected, it activate the PPPoE bridge protocol PPPoE (point-to-point over ethernet) is a network protocol for encapsulating Point-to-Point Protocol (PPP) frames inside Ethernet frames. Allows you to create a PPPoE connection from the device behind router. -
Page 33: Mobile Wan Configuration
1. CONFIGURATION OVER WEB BROWSER Figure 18: Mobile WAN configuration... -
Page 34: Example Of Mobile Wan Configuration
1. CONFIGURATION OVER WEB BROWSER The figure below describes the situation, when the connection to mobile network is con- trolled on the address 8.8.8.8 in the time interval of 60 s for primary SIM card and on the address www.google.com in the time interval 80 s for secondary SIM card. In the case of traffic on the router the control pings are not sent, but the traffic is monitored. -
Page 35: Backup Routes
1. CONFIGURATION OVER WEB BROWSER 1.12 Backup Routes Using the configuration form on the Backup Routes page can be set backing up primary connection by other connections to internet/mobile network. For each back up connection can be defined a priority. Own switching is done based on set priorities and state of the connection (for Primary LAN and Secondary LAN). -
Page 36: Pppoe Configuration
1. CONFIGURATION OVER WEB BROWSER Figure 22: Backup Routes 1.13 PPPoE Configuration The PPPoE Configuration item is available only for the industrial router XR5i v2. PPPoE for industrial router works in client mode. Router using connection to the PPPoE server or PPPoE bridge (for example ADSL modem). To enter the PPPoE configuration select the PPPoE menu item. -
Page 37: Firewall Configuration
1. CONFIGURATION OVER WEB BROWSER Item Description Username Username for secure access to PPPoE Password Password for secure access to PPPoE Authentication Authentication protocol in GSM network PAP or CHAP – Router is chosen one of the authentication methods. PAP – It is used PAP authentication method. CHAP –... -
Page 38: Topology Of Example Firewall Configuration
1. CONFIGURATION OVER WEB BROWSER Example of the firewall configuration: The router has allowed the following access: from address 171.92.5.45 using any protocol from address 10.0.2.123 using TCP protocol on any ports from address 142.2.26.54 using ICMP protocol Figure 24: Topology of example firewall configuration Figure 25: Example firewall configuration... -
Page 39: Nat Configuration
1. CONFIGURATION OVER WEB BROWSER 1.15 NAT configuration To enter the Network Address Translation configuration, select the NAT menu item. NAT (Network address Translation / Port address Translation - PAT) is a method of adjusting the net- work traffic through the router default transcript and/or destination IP addresses often change the number of TCP/UDP port for walk-through IP packets. -
Page 40: Topology Of Example Nat Configuration
1. CONFIGURATION OVER WEB BROWSER Enable the following options and enter the port number is allowed remote access to the rou- ter from PPP interface. Item Description Enable remote HTTP access on port If this item field and port number is filled in, then configuration of the router over web interface is possible (disabled in default configuration). -
Page 41: Example Nat Configuration
1. CONFIGURATION OVER WEB BROWSER Figure 27: Example NAT configuration 1 In these configurations it is important to have marked choice of Send all remaining incom- ing packets it default server, IP address in this case is the address of the device behind the router. -
Page 42: Topology Of Example Nat Configuration
1. CONFIGURATION OVER WEB BROWSER Example of the configuration with more connected equipment: Figure 28: Topology of example NAT configuration 2 Figure 29: Example NAT configuration 2... -
Page 43: Openvpn Tunnel Configuration
1. CONFIGURATION OVER WEB BROWSER In this configuration equipment wired behind the router defines the address Server IP Ad- dress. The router replies, while PING on address of SIM card. Access on web interface of the equipment behind the router is possible by the help of Port Forwarding, when behind IP ad- dress of SIM is indicating public port of equipment on which we want to come up. - Page 44 1. CONFIGURATION OVER WEB BROWSER Continued from previous page Item Description TCP client – OpenVPN will communicate using TCP in client mode. UDP/TCP port Port, by which the tunnel will communicate. Remote IP Address IP address of the opposite side of the tunnel. Can be used do- main name.
-
Page 45: Openvpn Tunnels Configuration
1. CONFIGURATION OVER WEB BROWSER Continued from previous page Item Description Pre-shared secret – enables authentication using Pre-shared secret. This authentication set shared key for both off-side tunnel Username/password – enables authentication using CA Certifi- cate, Username and Password X.509 Certificate (multiclient) – enables authentication by CA Certificate, Local Certificate and Local Private Key X.509 Certificate (client) –... -
Page 46: Openvpn Tunnel Configuration
1. CONFIGURATION OVER WEB BROWSER The changes in settings will apply after pressing the Apply button. Figure 31: OpenVPN tunnel configuration... -
Page 47: Topology Of Example Openvpn Configuration
1. CONFIGURATION OVER WEB BROWSER Example of the OpenVPN tunnel configuration: Figure 32: Topology of example OpenVPN configuration OpenVPN tunnel configuration: Configuration Protocol UDP Port 1194 1194 Remote IP Address 10.0.0.2 10.0.0.1 Remote Subnet 192.168.2.0 192.168.1.0 Remote Subnet Mask 255.255.255.0 255.255.255.0 Local Interface IP Address 19.16.1.0... -
Page 48: Ipsec Tunnel Configuration
1. CONFIGURATION OVER WEB BROWSER 1.17 IPSec tunnel configuration IPsec tunnel configuration can be called up by option IPsec item in the menu. IPsec tunnel allows protected (encrypted) connection of two networks LAN to the one which looks like one homogenous. - Page 49 1. CONFIGURATION OVER WEB BROWSER Continued from previous page Item Description IKE Mode Defines mode for establishing connection (main or aggressive). If the aggressive mode is selected, establishing of IPsec tunnel will be faster, but encryption will set permanently on 3DES-MD5. IKE Algorithm Way of algorithm selection: auto –...
-
Page 50: Openvpn Tunnels Configuration
1. CONFIGURATION OVER WEB BROWSER Continued from previous page Item Description Pre-shared Key Sharable key for both parties tunnel. CA Certificate This certificate is necessary to insert Authentication mode x.509. Remote Certificate This certificate is necessary to insert Authentication mode x.509. Local Certificate This certificate is necessary to insert Authentication mode x.509. -
Page 51: Ipsec Tunnels Configuration
1. CONFIGURATION OVER WEB BROWSER Figure 34: IPsec tunnels configuration... -
Page 52: Gre Tunnels Configuration
1. CONFIGURATION OVER WEB BROWSER Example of the IPSec Tunnel configuration: Figure 35: Topology of example IPsec configuration IPsec tunnel configuration: Configuration Remote IP Address 10.0.0.2 10.0.0.1 Remote Subnet 192.168.2.0 192.168.1.0 Remote Subnet Mask 255.255.255.0 255.255.255.0 Local Subnet 192.168.1.0 192.168.2.0 Local Subnet Mas: 255.255.255.0 255.255.255.0... -
Page 53: Gre Tunnels Configuration
1. CONFIGURATION OVER WEB BROWSER Item Description Create Enables the individual tunnels. Description Displays the name of the tunnel specified in the configuration of the tunnel. Edit Configuration GRE tunnel. Table 35: Overview GRE tunnels Figure 36: GRE tunnels configuration Item Description Description... -
Page 54: Gre Tunnel Configuration
1. CONFIGURATION OVER WEB BROWSER Figure 37: GRE tunnel configuration Example of the GRE Tunnel configuration: Figure 38: Topology of GRE tunnel configuration GRE tunnel Configuration: Configuration Remote IP Address 10.0.0.2 10.0.0.1 Remote Subnet 192.168.2.0 192.168.1.0 Remote Subnet Mask 255.255.255.0 255.255.255.0 Table 37: Example GRE tunnel configuration... -
Page 55: L2Tp Tunnel Configuration
1. CONFIGURATION OVER WEB BROWSER 1.19 L2TP tunnel configuration L2TP is an unencrypted protocol. To enter the L2TP tunnels configuration, select the L2TP menu item. L2TP tunnel allows protected connection by password of two networks LAN to the one which it looks like one homogenous. -
Page 56: Topology Of Example L2Tp Tunnel Configuration
1. CONFIGURATION OVER WEB BROWSER Example of the L2TP Tunnel configuration: Figure 40: Topology of example L2TP tunnel configuration Configuration of the L2TP tunnel: Configuration Mode L2TP Server L2TP Client Server IP Address — 10.0.0.1 Client Start IP Address 192.168.1.2 —... -
Page 57: Pptp Tunnel Configuration
1. CONFIGURATION OVER WEB BROWSER 1.20 PPTP tunnel configuration PPTP is an unencrypted protocol. To enter the PPTP tunnels configuration, select the PPTP menu item. PPTP tunnel allows protected connection by password of two networks LAN to the one which it looks like one homogenous. -
Page 58: Topology Of Example Pptp Tunnel Configuration
1. CONFIGURATION OVER WEB BROWSER Example of the PPTP Tunnel configuration: Figure 42: Topology of example PPTP tunnel configuration Configuration of the PPTP tunnel: Configuration Mode PPTP Server PPTP Client Server IP Address — 10.0.0.1 Local IP Address 192.168.1.1 — Remote IP Address —... -
Page 59: Dyndns Client Configuration
If you want to use another DynDNS service than www.dyndns.org, then enter the update server service to this item. If this item is left blank, it uses the default server members.dyndns.org. Table 42: DynDNS configuration Example of the DynDNS client configuration with domain conel.dyndns.org: Figure 43: Example of DynDNS configuration... -
Page 60: Ntp Client Configuration
1. CONFIGURATION OVER WEB BROWSER 1.22 NTP client configuration NTP client Configuration can be called up by option NTP item in the menu. NTP (Network Time Protocol) allows set the exact time to the router from the servers, which provide the exact time on the network. -
Page 61: Snmp Configuration
1. CONFIGURATION OVER WEB BROWSER 1.23 SNMP configuration To enter the SNMP configuration it is possible with SNMP agent v1/v2 or v3 configuration which sends information about the router, eventually about the status of the expansion port CNT or MBUS. SNMP (Simple Network Management Protocol) provides status information about network elements such as routers or end computers. -
Page 62: Snmp Configuration (Mbus Extension)
1. CONFIGURATION OVER WEB BROWSER Item Description Baudrate Communication speed. Parity Control parity bit: none – Data will be sent without parity. even – Data will be sent with even parity. odd – Data will be sent with odd parity. Stop Bits Number of stop bit. -
Page 63: Object Identifier For Cnt Port
1. CONFIGURATION OVER WEB BROWSER Continued from previous page Description .1.3.6.1.4.1.30140.2.1.8.0 Binary input BIN4 (values 0,1) .1.3.6.1.4.1.30140.2.1.9.0 Binary output OUT1 (values 0,1) Table 49: Object identifier for CNT port For the expansion port M-BUS the following range of OID is used: Description .1.3.6.1.4.1.30140.2.2.<address>.1.0 IdNumber –... -
Page 64: Example Of Snmp Configuration
1. CONFIGURATION OVER WEB BROWSER Example of SNMP settings and readout: Figure 45: Example of SNMP configuration... -
Page 65: Example Of The Mib Browser
It is important to set the IP address of the SNMP agent (router) in field Remote SNMP agent. After enter the IP address is in a MIB tree part is possible show object identifier. The path to objects is: internet private enterprises conel protocols The path to information about router is: internet mgmt mib-2... -
Page 66: Smtp Configuration
1. CONFIGURATION OVER WEB BROWSER 1.24 SMTP configuration To enter the SMTP it is possible configure SMTP (Simple Mail Transfer Protocol) client, which is set by sending emails. Item Description SMTP Server Address IP or domain address of the mail server. Username Name to email account. -
Page 67: Sms Configuration
1. CONFIGURATION OVER WEB BROWSER 1.25 SMS configuration For industrial router XR5i v2 is not available SMS Configuration item. SMS Configuration can be called up by option SMS item in the menu. SMS configuration defines the options for sending SMS messages from the router at different defined events and states of the router. -
Page 68: Send Sms Configuration
1. CONFIGURATION OVER WEB BROWSER Continued from previous page Item Description BIN4 – SMS SMS text messages when activate the binary input on the router. Table 52: Send SMS configuration In the second part of the window it is possible to set function Enable remote control via SMS. -
Page 69: Send Sms
1. CONFIGURATION OVER WEB BROWSER Continued from previous page Description set out1=0 Set output expansion port XC-CNT on 0 set out1=1 Set output expansion port XC-CNT on 1 set profile std Set standard profile set profile alt1 Set alternative profile 1 set profile alt2 Set alternative profile 2 set profile alt3... -
Page 70: List Of At Commands
1. CONFIGURATION OVER WEB BROWSER The following table only lists the commands that are supported by Conel’s routers. For other AT commands is always sent OK response. There is no support for treatment of complex AT commands, so in such a case router sends ERROR response. -
Page 71: Example Of Sms Configuration
1. CONFIGURATION OVER WEB BROWSER After powering up the router, at the mentioned the phone number comes SMS in this form: Router (Unit ID) has been powered up. Signal strength –xx dBm. After connect to mobile network, at the mentioned phone number comes SMS in this form: Router (Unit ID) has established connection to mobile network. -
Page 72: Example Of Sms Configuration
1. CONFIGURATION OVER WEB BROWSER Example of the router configuration for SMS sending via serial interface on the PORT1: Figure 49: Example of SMS configuration 2... -
Page 73: Example Of Sms Configuration
1. CONFIGURATION OVER WEB BROWSER Example of the router configuration for controlling via SMS from every phone numbers: Figure 50: Example of SMS configuration 3... -
Page 74: Example Of Sms Configuration
1. CONFIGURATION OVER WEB BROWSER Example of the router configuration for controlling via SMS from two phone numbers: Figure 51: Example of SMS configuration 4... -
Page 75: Expansion Port Configuration
1. CONFIGURATION OVER WEB BROWSER 1.26 Expansion port configuration Configuring of the expansion ports PORT1 and PORT2 can cause selecting Expansion Port 1 or Expansion Port 2. Item Description Baudrate Applied communication speed. Data Bits Number of data bits. Parity Control parity bit none –... -
Page 76: Expansion Port Configuration
1. CONFIGURATION OVER WEB BROWSER When you select items Use CD as indicator of the TCP connection is activated function indication TCP connection using signal CD (DTR on the router). Description Active TCP connection is on Nonactive TCP connection is off Table 61: CD signal description When you select items Use DTR as control of TCP connection is activated function control TCP connection using signal DTR (CD on the router). -
Page 77: Example Of Expansion Port Configuration
1. CONFIGURATION OVER WEB BROWSER Example of external port configuration: Figure 53: Example of expansion port configuration 1 Figure 54: Example of expansion port configuration 2... -
Page 78: Usb Port Configuration
1. CONFIGURATION OVER WEB BROWSER 1.27 USB port configuration The USB port configuration can be called up by airbrush option USB Port in menu. Con- figuration can be done, if we have USB/RS232 converter. Item Description Baudrate Applied communication speed. Data Bits Number of data bits. -
Page 79: Usb Configuration
1. CONFIGURATION OVER WEB BROWSER When you select items Use CD as indicator of the TCP connection is activated function indication TCP connection using signal CD (DTR on the router). Description Active TCP connection is on Nonactive TCP connection is off Table 65: CD signal description When you select items Use DTR as control of TCP connection is activated function control TCP connection using signal DTR (CD on the router). -
Page 80: Example Of Usb Port Configuration
1. CONFIGURATION OVER WEB BROWSER Example of USB port configuration: Figure 56: Example of USB port configuration 1 Figure 57: Example of USB port configuration 2... -
Page 81: Startup Script
1. CONFIGURATION OVER WEB BROWSER 1.28 Startup script In the window Startup Script it is possible to create own scripts which will be executed after all initial scripts. The changes in settings will apply after pressing the Apply button. Figure 58: Startup script Change take effect after shut down and witch on router by the help of button Reboot in web administration or by SMS message. -
Page 82: Up/Down Script
1. CONFIGURATION OVER WEB BROWSER 1.29 Up/Down script In the window Up/Down Script it is possible to create own scripts. In the item Up script is defined scripts, which begins after establishing a PPP/WAN connection. In the item Down Script is defines script, which begins after lost a PPP/WAN connection. The changes in settings will apply after pressing the Apply button. -
Page 83: Automatic Update Configuration
1. CONFIGURATION OVER WEB BROWSER 1.30 Automatic update configuration In the window Automatic update it is possible to set automatic configuration update. This choice enables that the router automatically downloads the configuration and the newest firmware from the server itself. The configuration and firmware are stores on the server. To prevent possible manipulation of the update, downloaded file (tar.gz format) is controlled. -
Page 84: Example Of Automatic Update
1. CONFIGURATION OVER WEB BROWSER The following examples find if there is a new firmware or configuration each day at 1:00 in the morning. An example is given on the type of router ER75i v2. Firmware: http://router.cz/er75i-v2.bin Configuration file: http://router.cz/temelin.cfg Figure 62: Example of automatic update 1 The following examples find if there is a new firmware or configuration each day at 1:00 in the morning. -
Page 85: User Modules
1. CONFIGURATION OVER WEB BROWSER 1.31 User modules Configuration of user modules can be accessed by selecting the User Modules item. It is possible to add new modules, delete them or switch to their configuration. Use the Browse button to select the user module (compiled module has tgz extension). The module is added using the Add button. -
Page 86: Change Profile
1. CONFIGURATION OVER WEB BROWSER Continued from previous page Module name Description WMBUS Concentrator Allows to receive messages from WMBUS meters and saves contents of these messages to XML file. pduSMS Sends short messages (SMS) to specified number. Allows v2 router to provide location and time information in all weather, anywhere on or near the Earth, where there is an un- obstructed line of sight to four or more GPS satellites. -
Page 87: Change Password
1. CONFIGURATION OVER WEB BROWSER 1.33 Change password To open the dialog box for changing the access password select the Change Password menu item. The new password will be saved after pressing the Apply button. In basic settings of the router the password is set on default form root. For higher security of your network we recommend changing this password. -
Page 88: Unlock Sim Card
1. CONFIGURATION OVER WEB BROWSER Figure 69: Set SMS service center address 1.36 Unlock SIM card For industrial router XR5i v2 is not available Unlock SIM card item. Possibility to unlock SIM PIN is under Unlock SIM Card item. If the inserted SIM card is secured by a PIN number, enter the PIN to field SIM PIN and push-button Apply. -
Page 89: Backup Configuration
1. CONFIGURATION OVER WEB BROWSER 1.38 Backup configuration The router configuration is possible to save by help of the Backup Configuration menu item. After clicking on this menu it is possible to check a destination directory, where it will save the router configuration. 1.39 Restore configuration In case it is needed to restore the router configuration, it is possible in Restore Configura- tion menu item to check configuration by help Browse button. -
Page 90: Reboot
1. CONFIGURATION OVER WEB BROWSER 1.41 Reboot To reboot the router select the Reboot menu item and then press the Reboot button. Figure 74: Reboot... -
Page 91: Configuration Setting Over Telnet
2. CONFIGURATION SETTING OVER TELNET 2. Configuration setting over Telnet Attention! If the SIM card isn’t inserted in the router, it is impossible for the router to oper- ate. The Included SIM card must be activated for GPRS transmissions. Monitoring of status, configuration and administration of the router can be performed by means of the Telnet interface. -
Page 92: Telnet Commands
2. CONFIGURATION SETTING OVER TELNET Continued from previous page Command Description passwd password change ping ICMP ping displaying of processes information dump of actual directory reboot reboot file delete rmdir directory delete route displaying/change of route table service start/stop of service sleep pause on set seconds number slog...
