- Page 1 Multisystem Video Converter From NTSC 3.58, NTSC 4.43, PAL, PAL M, PAL N, SECAM To NTSC 3.58,PAL Operation Manual...
- Page 2 Precautions 1. Do not expose this product to direct sunlight. 2. Keep the unit away from radiator, heat sources and magnetic field. 3. Do not place it in very dusty or humid locations. 4. Use this unit in a horizontal position only. 5.

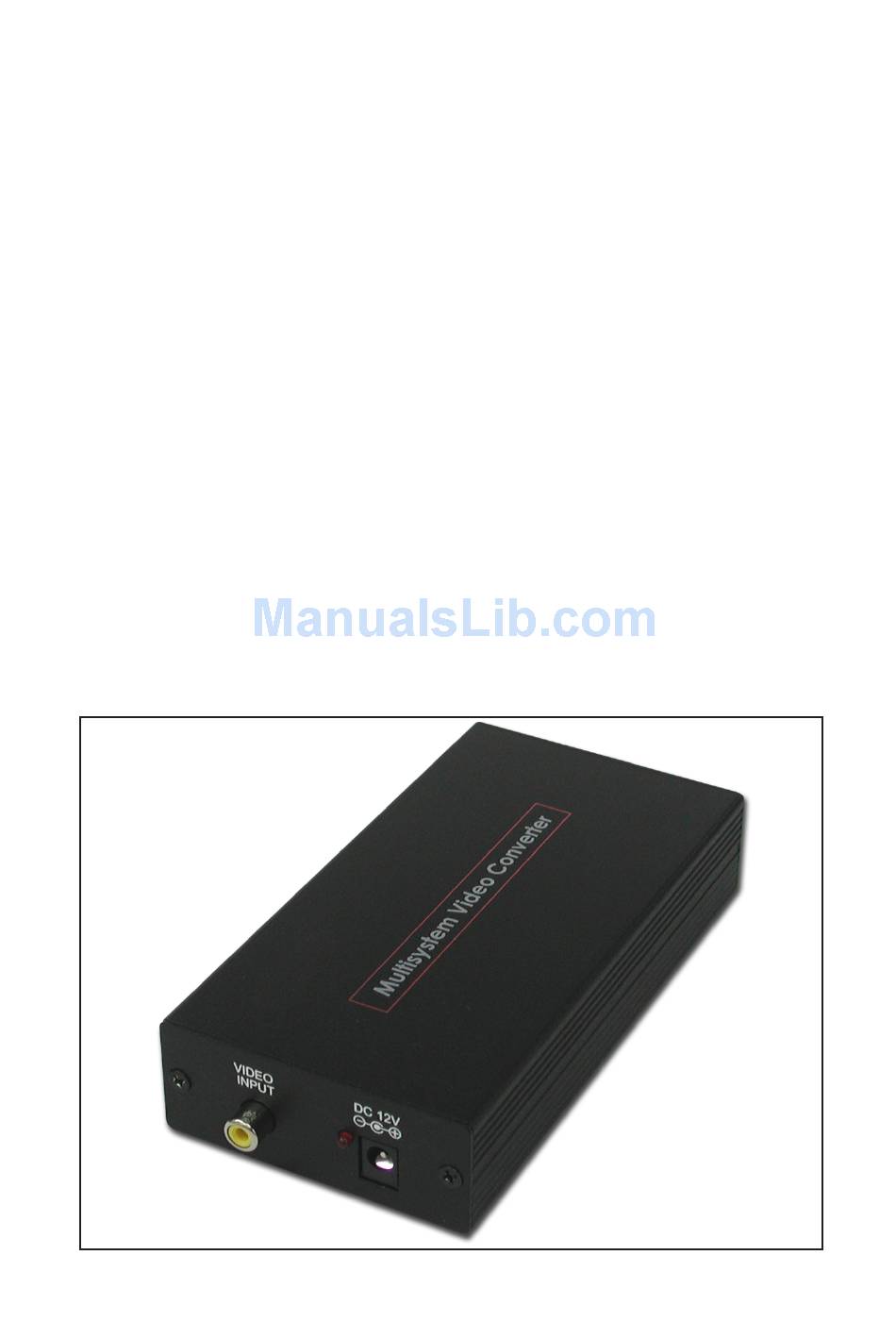

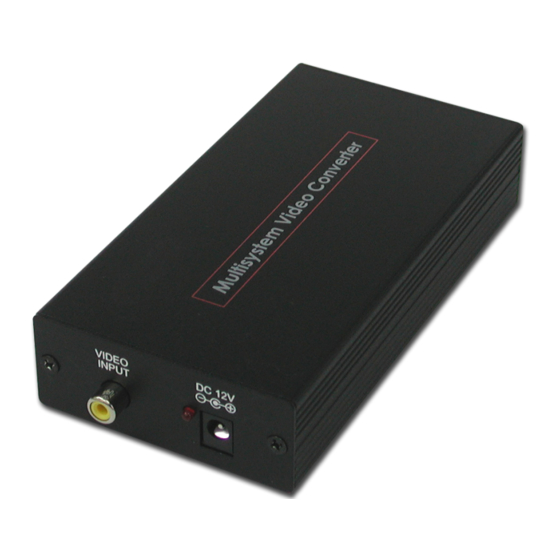

- Page 3 Operation controls and functions Front panel DC 12V VIDEO INPUT 1. 12 Volt DC power input: Connects to car battery ouput. 2. Power LED. 3. Composite video input connector: Video input can be NTSC, NTSC 4, PAL, PAL M, PAL N, and SECAM. It will be automatically recognized by the unit and convert to either NTSC or PAL output depending on the jumper setting on the PCB.
-
Page 4: Sampling Frequency
Specifications Input Systems NTSC, N4, PAL, PAL M, PAL N, SECAM NTSC 3.58, or PAL (through Output TV Systems jumper setting on PCB) Connection Terminals Video input: 1 Video output: 1 13.5 MHz Sampling Frequency R-Y: 6.75 MHz B-Y: 6.75 MHz R : 8 bits G: 8 bits Digital code bit...
