Compex DSR2216 Quick Install Manual

Compex DSR2216 Quick Install Manual

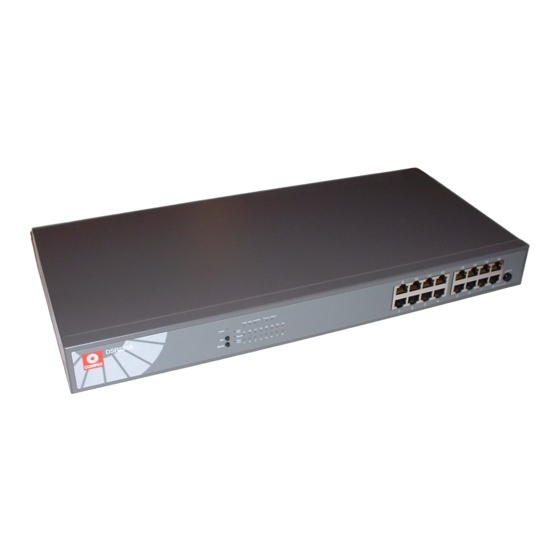

Compex 16-port all 10/100 mbps fasr ethernet switch

Advertisement

Quick Links

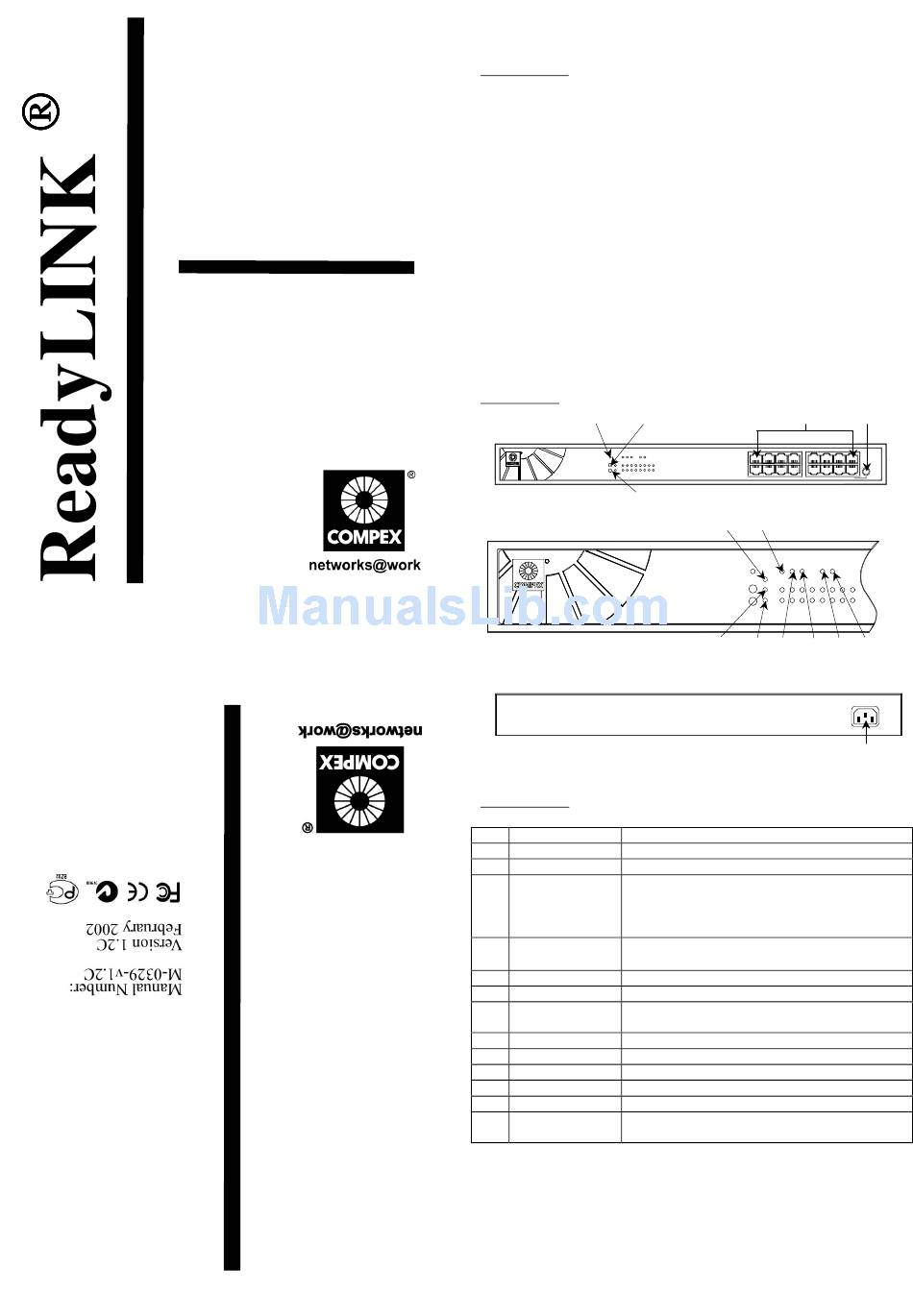

Quick Install Guide

& R P S H [
   3 R U W $ O O       0 E S V
) D V W ( W K H U Q H W 6 Z L W F K
 $ #
Version 1.2C
( Q J O L V K 9 H U V L R Q
I n t r o d u c t i o n
The key features of the Compex 16-Port All 10/100 Mbps Fast Ethernet Switch
(DSR2216) are as follows:
Each port supports 10Base-T and 100Base-TX connection through auto-
Š
negotiation.
16 high-speed ports provide switching between 10Base-T Ethernet
Š
segments and 100Base-TX Fast Ethernet segments in a single integrated
network.
Implementing store-and-forward switching scheme.
Š
Supports 10Base-T to 100Base-TX connectivity, allowing for progressive
Š
migration.
Support Full Duplex and Half Duplex for both 10Base-T and 100Base-TX
Š
connection at each port.
Highly optimized flow control for full and half duplex, evolved traffic
Š
priority services, flexible trunking capabilities.
Provides a dynamic memory sharing in/out buffer to ensure fast free packet
Š
storage and transmission, which greatly improves your network performance.
Easy to use, configurable without cable.
Š
Port-trunking and priority support.
Š
P a n e l V i e w
1
3
R
DSR2216
100M
Half
Tr unking
Priority Default
Powe r
Lin k
/Act
9
10
11
12
13
14
15
16
Set
Spee d
Mode
F DX
/Col
1
2
3
4
5
6
7
2
Figure 1: Overall Front Panel View of DSR2216
R
DSR2216
Figure 2: Front Panel View of DSR2216
Figure 3: Back Panel View of DSR2216
C o m p o n e n t s
1
Power LED
Green: Light up when the power supply is ON.
2
Mode Button
Button to view port status and select option mode.
3
Set Button
Button to configure port mode.
♦ RJ-45, 100Base-TX/10Base-T ports; Auto-
4
16 RJ-45 Ports
♦ Configure as 16 UTP Ports or 15 UTP Ports
♦ Uplink mode when button is pushed IN.
5
Uplink Button
♦ Normal mode when button is released OUT.
('P8')
6
LINK/ACT LED
Select to view active ports link and activity status.
7
Speed LED
Select to view active ports connection speed.
8
FDX/Col LED
Select to view active ports duplex mode and
collision status.
9
100M LED
Select to configure port speed.
10
Half LED
Select to configure port duplex mode.
11
Trunking LED
Select to enable/disable and select trunking ports
12
Priority LED
Select to set/reset/port priority.
13
Default LED
Select to reset switch to factory default setting.
14
Power Socket
Flexible power input (range 100-250VAC, 0.5A,
47-63Hz) meets every country's requirements.
4
9
10
11
12
13
14
8
1
2
3
4
5
6
9
100M Half Trunking
Priority
Power
Link
/Act
9
10
11
12
13
Speed
Set
FDX
Mode
/Col
1
2
3
4
5
7
8
10
11
negotiation.
plus 1 Uplink Port.
5
15
16
Uplink
6
7
8
Default
14
15
16
6
7
8
12
13
100-240VAC 0.5A 50-60Hz
14
