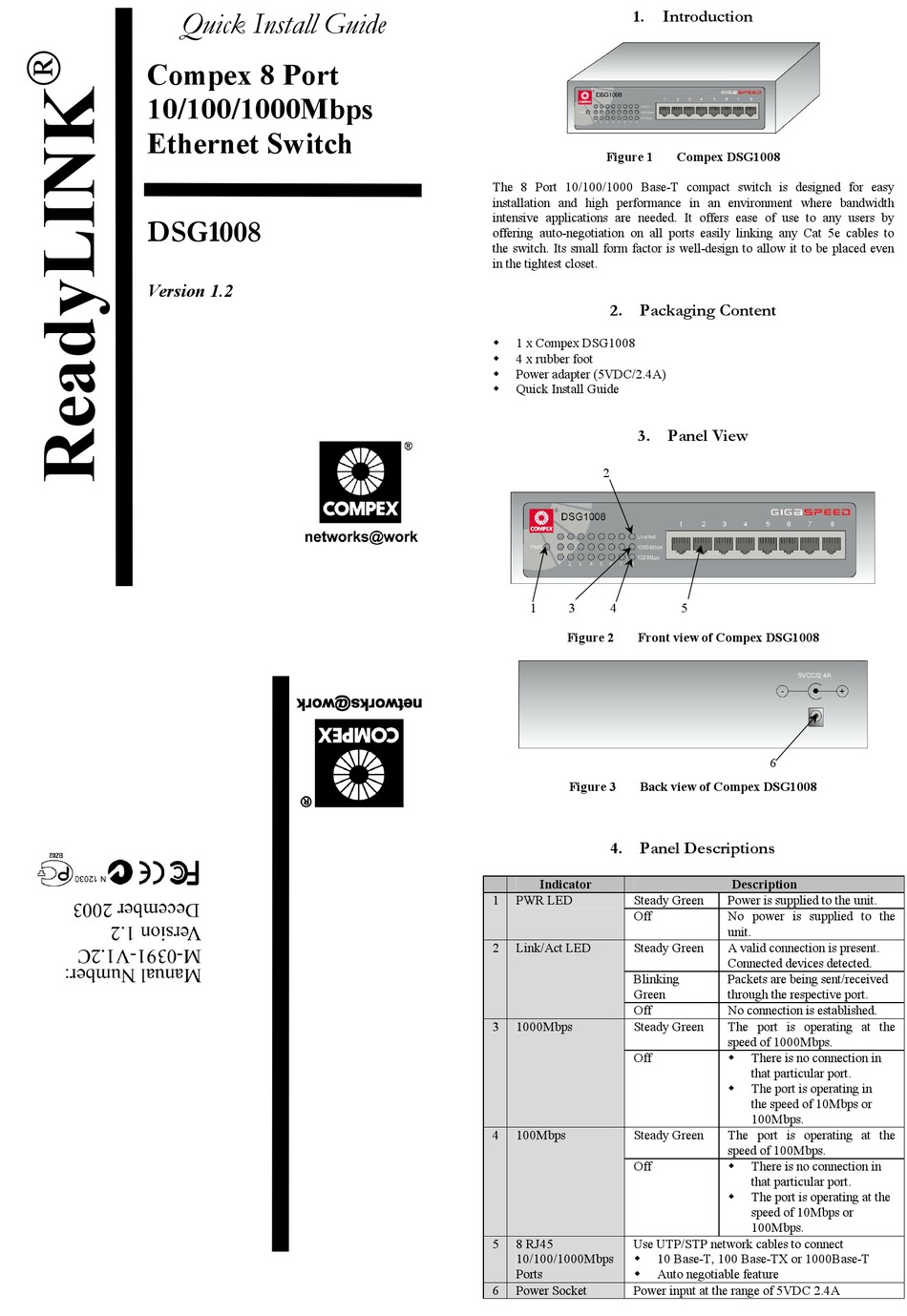

Compex ReadyLink 8 Port 10/100/1000Mbps Ethernet Switch DSG1008 Quick Install Manual

Quick Install Guide

Compex 8 Port
10/100/1000Mbps
Ethernet Switch
DSG1008
Version 1.2
1. Introduction

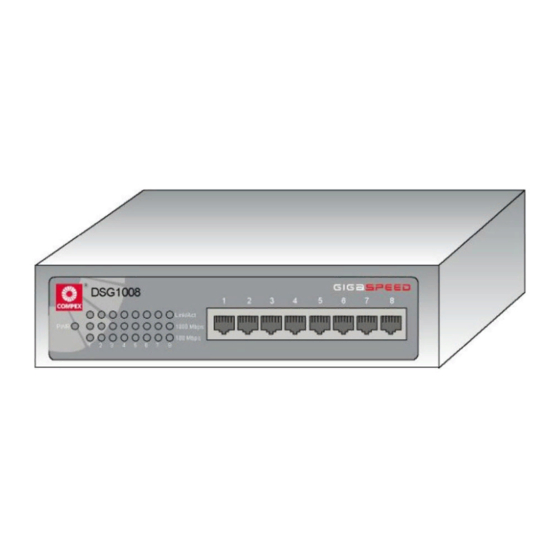

Figure 1
The 8 Port 10/100/1000 Base-T compact switch is designed for easy
installation and high performance in an environment where bandwidth
intensive applications are needed. It offers ease of use to any users by
offering auto-negotiation on all ports easily linking any Cat 5e cables to
the switch. Its small form factor is well-design to allow it to be placed even
in the tightest closet.

2. Packaging Content

! 1 x Compex DSG1008
! 4 x rubber foot
! Power adapter (5VDC/2.4A)
!
Quick Install Guide

3. Panel View

2
1 3 4
Figure 2 Front view of Compex DSG1008
Figure 3 Back view of Compex DSG1008

4. Panel Descriptions

Indicator
1 PWR LED Steady Green
Off
2 Link/Act LED Steady Green
Blinking
Green
Off
3 1000Mbps Steady Green
Off
4 100Mbps Steady Green
Off
5 8 RJ45 Use UTP/STP network cables to connect
10/100/1000Mbps ! 10 Base-T, 100 Base-TX or 1000Base-T
Ports ! Auto negotiable feature
6 Power Socket Power input at the range of 5VDC 2.4A
Compex DSG1008
5
6
Description
Power is supplied to the unit.
No power is supplied to the
unit.
A valid connection is present.
Connected devices detected.
Packets are being sent/received
through the respective port.
No connection is established.
The port is operating at the
speed of 1000Mbps.
! There is no connection in
that particular port.
!
The port is operating in
the speed of 10Mbps or
100Mbps.
The port is operating at the
speed of 100Mbps.
! There is no connection in
that particular port.
! The port is operating at the
speed of 10Mbps or
100Mbps.
