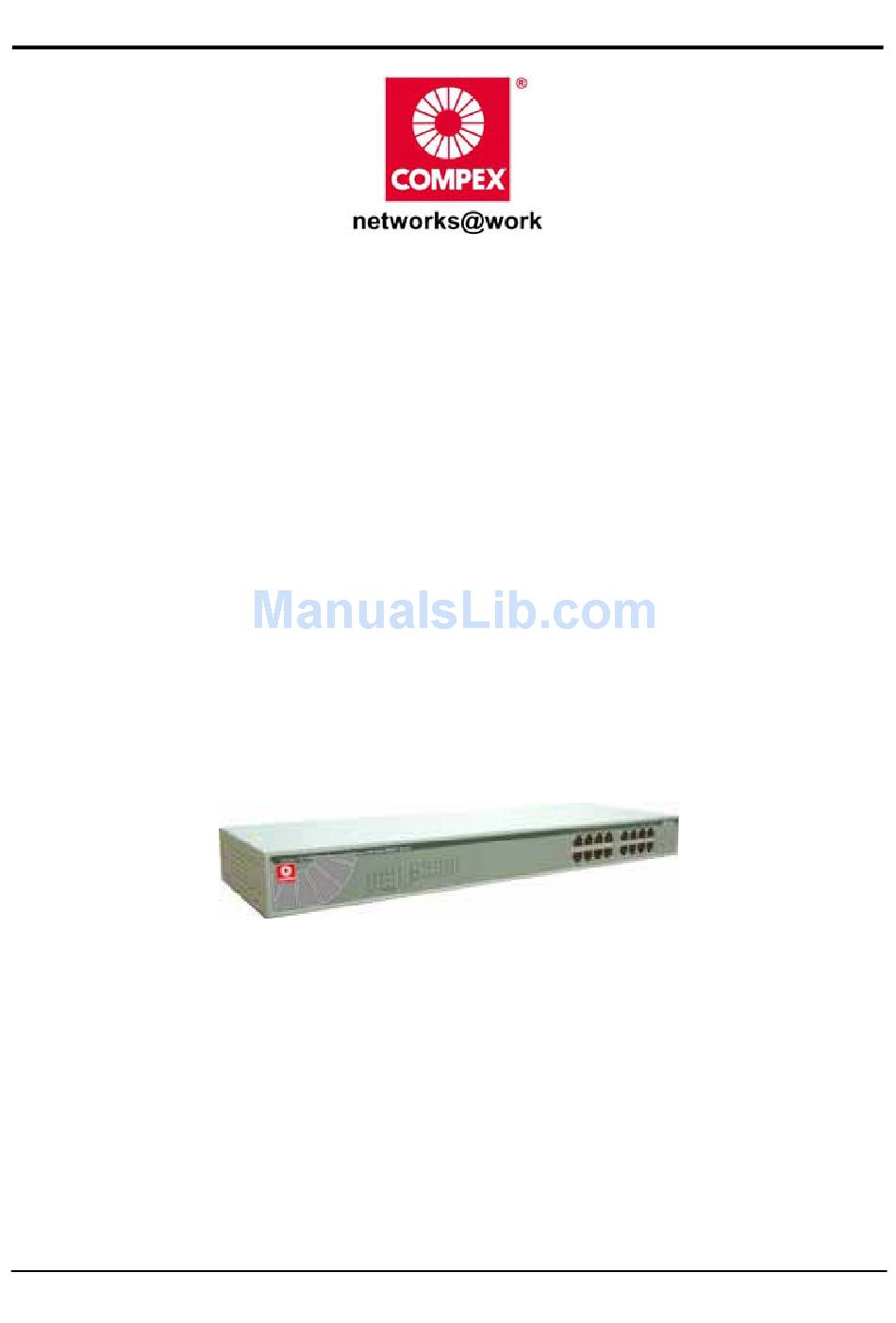

    Quick Install Guide 16-Port 10/100Mbps Ethernet Web Smart Switch with 8-Port PoE SPE1016E8...
  • Page 2: Table Of Contents

    Contents Introduction ..................1 ....................1 Features Packaging Content................2 Let’s Get Going-Hardware Setup ..........3 ....................3 Installation ..................4 Rack Mounting ..............5 Connecting Network Cable ....................5 AC Power Accessing to web-based interface ...........6 Panel Views and Descriptions.............8 ....................8 Front Panel ....................
  • Page 3: 1: Introduction

    1: Introduction This chapter describes the features of the 16-Port 10/100Mbps Ethernet Web Smart Switch with 8-Port PoE. Features 16×10/100Mbps Auto-negotiation Fast Ethernet RJ45 ports with 8-port PoE function (port-1 ~ port-8) Compliant with IEEE 802.3af specification Supports PoE power maximum 15.4W for each PoE ports Supports PoE Powered Device (PD) classification identify Each port supports auto MDI/MDIX, so there is no need to use cross-over cables or an up-link port...
  • Page 4: Packaging Content

    Packaging Content Open the shipping cartons of the Switch and carefully unpacks its contents. The carton should contain the following items: One 16-Port 10/100Mbps Ethernet Web Smart Switch with 8-Port PoE One AC power cord, suitable for your area’s electrical power connections Four rubber feet to be used for shock cushioning Screws and two mounting brackets...
  • Page 5: 2: Let's Get Going-Hardware Setup

    2: Let’s Get Going-Hardware Setup This chapter provides installation information for the Switch. Installation The site where you install the hub stack may greatly affect its performance. When installing, consider the following pointers: Install the Switch in a fairly cool and dry place. See Technical Specifications for the acceptable temperature and humidity operating ranges.
  • Page 6: Rack Mounting

    Rack Mounting The switch can be mounted in an EIA standard-size, 19-inch rack, which can be placed in a wiring closet with other equipment. Attach the mounting brackets at the switch’s front panel (one on each side), and secure them with the provided screws.
  • Page 7: Connecting Network Cable

    Connecting Network Cable The Switch support 16 10/100M Ethernet ports and Port 1 ~ port 8 are PoE Enable ports, these PoE port will automatically activated when a compatible terminal is identified, the Switch will supply power through the Ethernet port to the connected PoE device.
  • Page 8: 3: Accessing To Web-Based Interface

    3: Accessing to web-based interface Before you configure this device, note that when the Web Smart Switch is configured through an Ethernet connection, make sure the manager PC must be set on same the IP network. For example, when the default network address of the default IP address of the Web Smart Switch is 192.168.0.1, then the manager PC should be set at 192.168.0.x (where x is a number between 2 and 254), and the default subnet mask is 255.255.255.0.
  • Page 9 Or through the Web Management Utility, you do not need to remember the IP Address, select the device shown in the Monitor List of the Web Management Utility to settle the device on the Web Browser. When the following dialog page appears, remain enter the default password "admin"...
  • Page 10: 4: Panel Views And Descriptions

    4: Panel Views and Descriptions This chapter describes the front panel, rear panel, and LED indicators of the Switch. Front Panel The figure below shows the front panels of the Switch. Figure 3. Front panel of 16-port Gigabit Ethernet Switch with 8-port PoE LED Indicator: Comprehensive LED indicators display the status of the switch and the network (see the LED Indicators chapter in User Manual).
  • Page 11: Rear Panel

    Ethernet Ports (Port 9~16): These ports support network speeds of either 10Mbps or 100Mbps, and can operate in half- and full- duplex transfer modes. These ports also supports automatic MDI/MDIX crossover detection function gives true “plug and play” capability, just need to plug-in the network cable to the hub directly and don’t care if the end node is NIC (Network Interface Card) or switch and hub Note: When the port was set to “Forced Mode”, the Auto MDI/MDIX will be disabled.
  • Page 12: 5: Technical Specifications

    Power (+): pin 3 & pin 6 in RJ45 PoE pin assignment Power (-): pin 1 & pin 2 in RJ-45 (Supports Compex WP54G and WPP54G) No Power: pin 4 & pin 5 & pin 7 & pin 8 in RJ-45...
  • Page 13 Physical and Environment AC inputs 100-240V AC, 50-60 Hz internal universal power supply Power Consumption 9Watts (max. no PD Device connected) 130Watts (max. with 8 x 15.4 w PoE Device connected) Operating: 0° ~ 40° C, Storage: -10° ~ 70° C Temperature Humidity Operating: 10% ~ 90%, Storage: 5% ~ 90%...
  • Page 14 Compex, Inc. may make improvements and/or changes to the product and/or specifications of the product described in this guide, without prior notice. Compex, Inc will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the guide.
  • Page 15: Warranty Registration Card

    WARRANTY REGISTRATION CARD [M-0088-V2.4C] Register via the Internet at http://www.cpx.com or http://www.compex.com.sg To activate the warranty, please complete this card and return to Compex within ninety (90) days from the date of purchase. Please e-mail this warranty card to support@compex.com.sg. Product:...
  • Page 16 October 2006...
