Compex ReadyLINK PS2208B-SS Quick Install Manual

Quick Install Guide

Compex Fast
Ethernet Desktop
Switch
PS2208B-SS
Version 2.1
1. Introduction

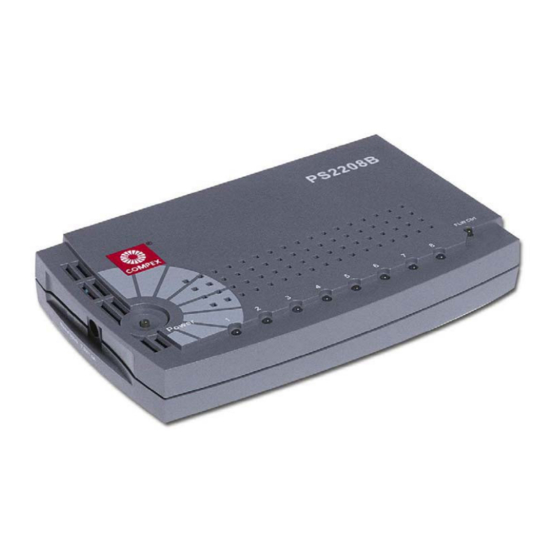

Figure 1
This improved Fast Ethernet Desktop Switch is very ideal for small and home
office networks. It comes with 8 10/100Mbps ports capable of full or half
duplex transmission with flow control. In addition, the switch supports full
auto-negotiation and self-configures for the highest possible operation mode
between two nodes. Unlike Hubs or Repeaters for which the 100Mbps
bandwidth is shared among the ports, the switch is designed with a backplane
of 1.6Gbps, allowing all 8 nodes to operate at full performance. Moreover, it
forwards the incoming packets only to the related ports, avoiding collisions
commonly seen in a Hub or Repeater. This switch has an earth connection
point used for suppression of lightning surges to protect itself.

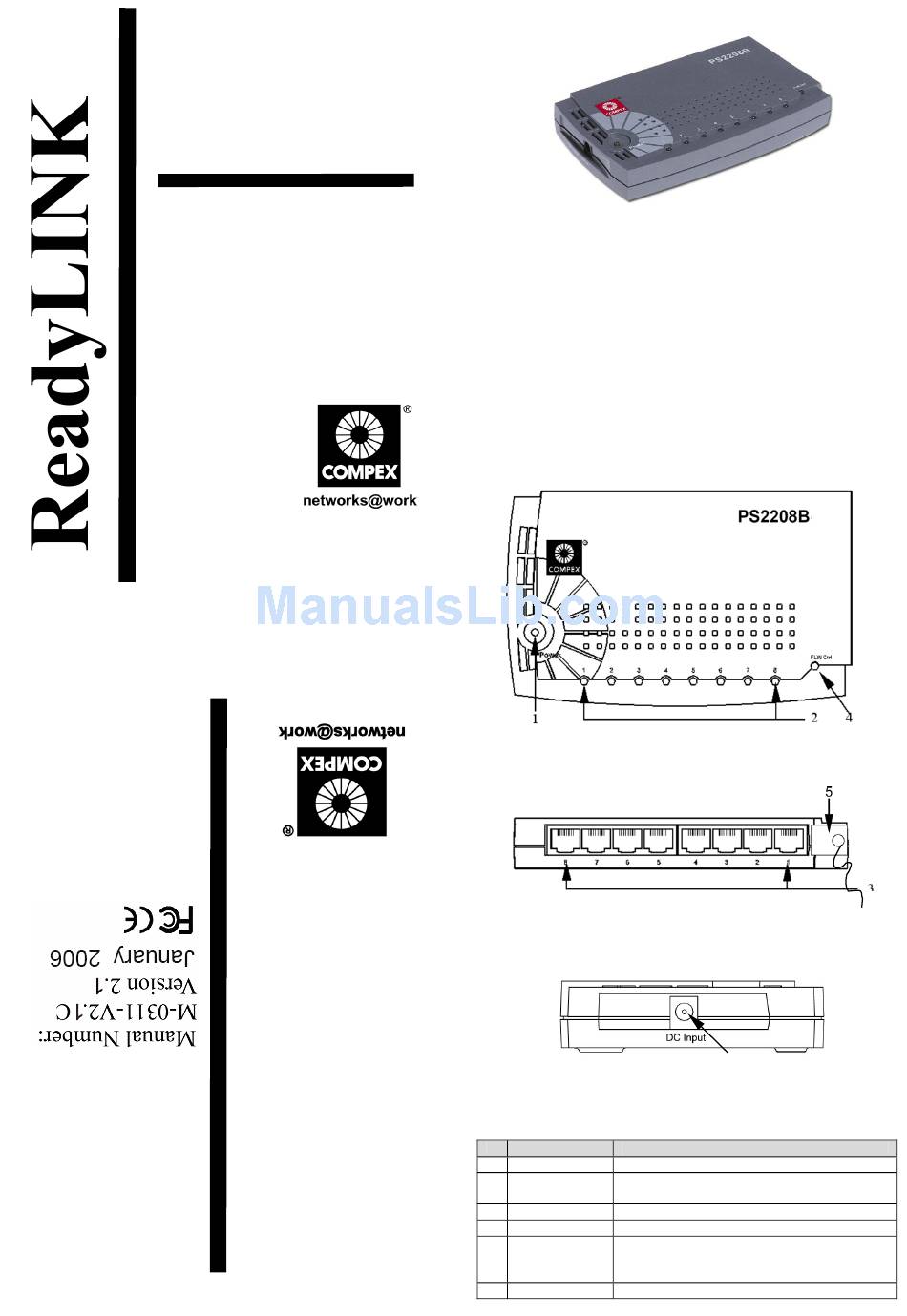

2. Panel Views
Figure 2
Figure 3 Back Panel View of PS2208B-SS
Figure 4
3. Panel Descriptions
Indicator
1 Power LED On: Switch is receiving power.
2 Port LED Steady: Link detected
Blinking: Activity detected
3 8 RJ-45 Ports 8 UTP ports(port1,8 are lightningproof)
4 FLW/Ctrl LED Not in use
5 Earth Suppression of lightning surges to protect the
Connection switch
Point
6 DC Power Jack Supply power from the adapter to the unit
PS2208B-SS
Front View of PS2208B
earth
6
Side View of PS2208B-SS
Description
